Modular 2-story Double-Deck Kennels
If you’re limited on floor space within your facility, maximize capacity by expanding vertically. Modular 2-Story Double-Deck™ Kennels let you create a second level of boarding runs that maintain full walk-in access for dogs and staff. Designed for flexibility, these kennels fit a wide range of building dimensions and include features to streamline operations
- Fits rooms as narrow as 18′ wide with a minimum interior headroom of 14′.
- Includes built-in plumbing and drainage systems for the upper level and aisles.
- Stairways can be placed in various locations to suit your layout.
- Offers back-to-back or single-row configurations with configurable side panels, gates, and accessories.
-
Configured Options
Panels
- FRP (fiberglass reinforced plastic)
- Wilsonart®
- Stainless steel
Gates
- Wire grid
- Tempered glass
- FRP (fiberglass reinforced plastic)
- Wilsonart
Wilsonart is a registered trademark of Wilsonart, LLC.
-
FRP Colors
- Yellow - 334
- Beige - 878
- Sage - 255
- Red - 132
- Pearl - 671
- Orange - 131
- Sky - 245
- White - 50
- Blue - 875
- Taupe - 6107
- Jade - 484
- Almond - 698
- Wilsonart is a registered trademark of Wilsonart, LLC
-
Wilsonart® High Pressure Laminate
- Amber Cherry - 7919
- Old Mill Oak - 7973
- Asian Sand - 7952
- Sterling Ash - Y0491
- Milano Quartz - 4726
- Calcutta Marble - 4925
- Pebble Piazza - 5009
-
Technical Specifications
Spec SheetBUILDING REQUIREMENTS
- Ceiling height: Must be 14’ or more (standard headroom).
- Room width: 12’ minimum (single row system); 20’ minimum (back-to-back system).
- Double-Deck stairways can be positioned in various locations. (Stairways to be provided by a separate manufacturer or contractor.)
- Double-Deck Kennels products are designed by requirement and engineered to order.
KENNELS
Standard Features:
- Sani-Kennel™ System on first floor runs.
- Transfer door available on back panel between back-to-back runs.
- UltraBase™ built-in floor drain on upper-level runs.
- Complete plumbing and drainage system for upper-level runs and aisles. (Connection to local service provided by local contractor.)
Sizes: Single Row
- First-floor Runs:
- Length: 8’-10’
- Width: 3’ or 4’
- Upper-level Runs:
- Length: 4’-6’ (based on lower-level dimensions)
- Width: 3’ or 4’
- Upper Aisles:
- Width: 4’
- Stairways:
- Width: 4’ minimum (provided by separate manufacturer)
Sizes: Back-to-back
- First-floor Runs:
- Length: 6’-8’
- Width: 3’ or 4’
- Upper-level Runs:
- Length: 4’-6’ (based on lower-level dimensions)
- Width: 3’ or 4’
- Upper Aisles:
- Width: 4’
- Stairways:
- Width: 4’ minimum (provided by separate manufacturer)
GATES
Materials:
- 1” square 18-gauge 304 stainless steel tube construction.
- Midmark patented stainless steel two-way latch.
- Gate and sidelight material options:
- Wire grid: 3/16” diameter, 304 stainless-steel; 15/16” spacing between vertical wires; 3-5/8” spacing between horizontal wires; welded intersections.
- Glass panel: 1/4” tempered glass with aluminum edge protection.
- FRP (fiberglass reinforced plastic): bonded on the exterior side of a polypropylene fluted core with aluminum edge protection. Interior side material is 24-gauge stainless steel.
- Wilsonart®: high-pressure laminate bonded on the exterior side of a polypropylene fluted core with aluminum edge protection. Interior side material is 24-gauge stainless steel.
Sizes:
- Measured by run width; available in 2 increments, 36” and 48” wide.
PANELS
Materials:
- ¾” aluminum framework.
- Upper material infill: 1/2” thick bone-colored polypropylene grid.
- Lower material infill:
- FRP (fiberglass reinforced plastic): bonded on each side of a polypropylene fluted core.
- Wilsonart®: high-pressure laminate bonded on each side of a polypropylene fluted core.
- 24-gauge stainless steel bonded on each side of a polypropylene fluted core.
-
Accessories
BOWL SYSTEMS
- Built-in Single- and Double-Bowl Brackets
- 2 ¾ Quart
- Rotary Double Bowl Insert
- 1 Quart
LATCHES
- Patented Stainless Steel Two-Way Latch
RAISED FLOORING
- Plastisol Coated Steel-Core: Blue
- Fiberglass Composite
REST BENCHES
- Freestanding or Swing-up Styles
Materials:
- Frame: Aluminum
- Benches: Stainless Steel or FRP

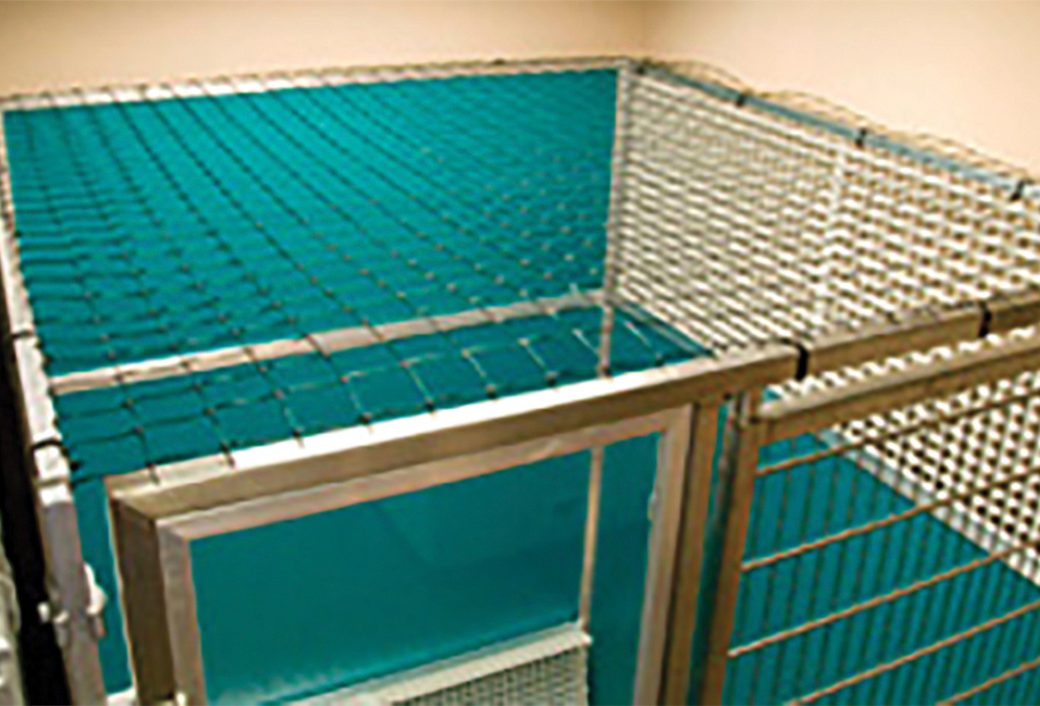

TOP COVERS
- Welded Wire
TRANSFER DOORS
- Standard Wall-Mounted Doors
- Cable Guard Wall-Mounted Doors
- Fiberglass Insulated Doors
- Panel-Mounted Doors
- Pickwick™ Dog-Operated Doors
- Locking Transfer Doors
ADDITIONAL ACCESSORIES
- Aluminum Gutter Covers
- Bone-Shaped Weight Assist Handle
- Card Holders
- Feeders
- Nelson® Automatic Waterer
-
