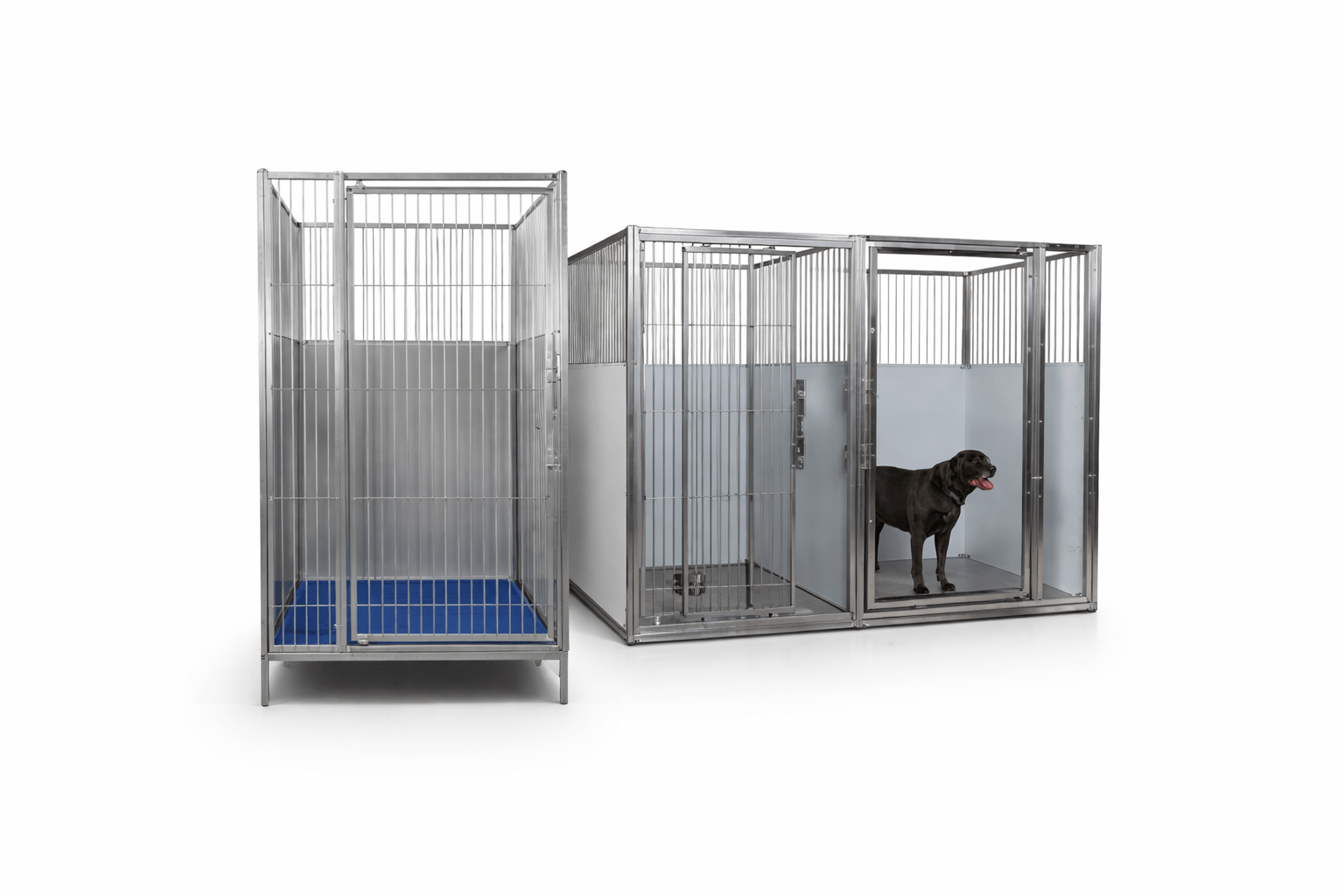

Kennel Interlocking System & Modular Design
The Kennel System comes with a choice of 5' or 6' lengths and may include a mix of 3' and 4' wide units. All runs are 6' high without the floor frame. With frame included it will add 9 ½" to 10 ½" to the height. The design of the Kennel System allows for disassembly.
-
Technical Specifications
1" stainless steel square tubing
3/8" diameter stainless steel rods
Bowl Brackets constructed of 16 gauge stainless steel - retrieve bowls by sliding one stainless steel rod up and spinning the bracket to the outside
181-0001-01 Standard Run Door Assembly, 35" W (outside dimension)
181-0001-02 Run Door Assembly with Bowl Bracket, 35" W (outside dimension)
181-0001-10 Sliding Run Door Assembly, 47.37" W (outside dimension) Fits 4' Wide Runs - Provides 24" Opening
181-0001-25 Glass Door Assembly, 35" W (outside dimension)
181-0001-27 Sliding Glass Door Assembly, 47.37" W (outside dimension) Fits 4' Wide Runs - Provides 24" Opening
181-0004-01 Run Glass Front Panel, 12" W
181-0004-05 Run Rod Front Panel, 12" W
181-0003-00 Run Back Panel, Stainless Steel, 35" W
181-0003-05 Run Back Panel, Stainless Steel, 47 3/8" W
182-0003-00 Run Back Panel, FRP, 35" W
182-0003-05 Run Back Panel, FRP, 47 3/8" W
181-0002-01 Run Side Panel, Stainless Steel, 72"
181-0002-51 Run Side Panel, Stainless Steel, 58"
182-0002-01 Run Side Panel, FRP, 72"
182-0002-51 Run Side Panel, FRP, 58"
181-0002-11 Run Side Panel, Stainless Steel, 72"
181-0002-61 Run Side Panel, FRP, 72"
182-0002-61 Run Side Panel, FRP, 58"
181-0005-00 Run Floor Frame, Stainless Steel, 36" W x 72" D
181-0005-01 Run Floor Frame, Stainless Steel, 48" W x 72" D
181-0005-20 Run Floor Frame, Stainless Steel, 36" W x 58" D
181-0005-11 Run Floor Frame, Stainless Steel, 48" W x 58" D
72" Deep Run - Plastisol™ Coated Run Floor616-0363-50 Run Floor, 36" W x 23" D (3 required per run)
616-0363-54 Run Floor, 48" W x 23" D (3 required per run)
58" Deep Run - Plastisol™ Coated Run Floor616-0363-50 Run Floor, 36" W x 23" D (2 required per run)
616-0363-51 Run Floor, 36" W x 9" D (1 required per run)
616-0363-54 Run Floor, 48" W x 23" D (2 required per run)
616-0363-55 Run Floor, 48"w x 9" D (1 required per run)
619-0440-00 Run Drain System, Stainless Steel, 36" x 72"
619-0440-01 Run Drain System, Stainless Steel, 48" x 72"
619-0440-03 Run Drain System, Stainless Steel, 36" x 58"
619-0440-04 Run Drain System, Stainless Steel, 48" x 58"
Call for Custom Run Gate Assemblies Available
-
