UltraBase™ Above Floor Kennels
UltraBase™ Above Floor Kennels are designed for versatility and durability, making them an excellent solution for leased spaces, areas with uneven floor slopes or locations where plumbing cannot be integrated into the floor. Their innovative fiberglass base provides a practical, above-floor drainage solution that simplifies maintenance for staff while offering a comfortable environment for animal occupants.
- Seamless, molded fiberglass base with a 6-inch side radius eliminates floor-side seams that can flex, crack or leak over time.
- Slip-resistant floor features a permanent texture for easier cleaning and added safety.

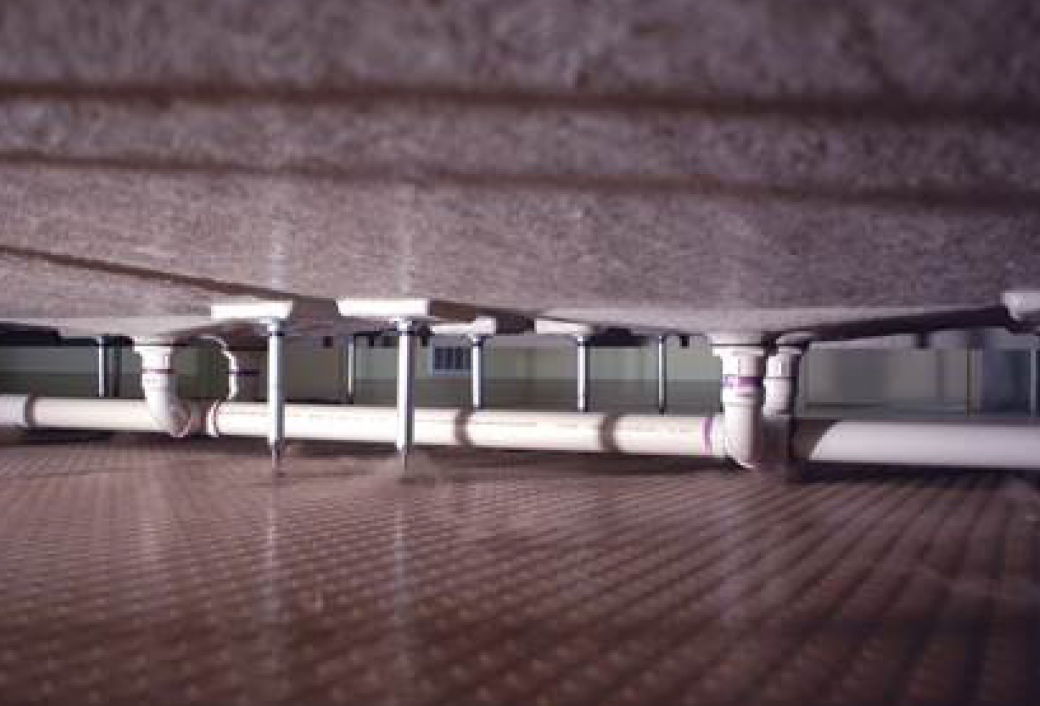

- Adjustable legs allow installation on uneven surfaces for greater adaptability.
- Fiberglass material retains warmth, providing a comforting surface for animals, which is especially beneficial in shelters or recovery areas.
-
Configured Options
GATES
- All Wire
- All Glass
- Wire over FRP
- Wire over Wilsonart®
- Glass over FRP
- Glass over Wilsonart®
- Glass over Wire
TRANSFER DOOR OPTIONS
- Back panel transfer door for back-to-back systems
- Side panel transfer door between runs
ITEM NUMBERS
Ultrabase – Fiberglass
10010765-316 3' W x 4' L – Aurora
10010765-885 3' W x 4' L – Steel Grey
10010766-316 3' W x 5' L – Aurora
10010766-885 3' W x 5' L – Steel Grey
10010767-316 3' W x 6' L – Aurora
10010767-885 3' W x 6' L – Steel Grey
10010768-316 4' W x 4' L – Aurora
10010768-885 4' W x 4' L – Steel Grey
10010769-316 4' W x 5' L – Aurora
10010769-885 4' W x 5' L – Steel Grey
10010770-316 4' W x 6' L – Aurora
10010770-885 4' W x 6' L – Steel Grey
Ultrabase Gates
Stainless Steel
10010756 3' W Standard Run Door
10010758 4' W Standard Run Door
Tempered Glass
10010757 3' W Standard Run Door
10010759 4' W Standard Run Door
Ultrabase Side Panels
FRP with Wire
10010760-XXX 4' L
10010761-XXX 5' L
10010762-XXX 6' L
("XXX" denotes color choices)
Ultrabase Back Panels
Solid FRP (Fiberglass Reinforced Plastic)
10010763-XXX 3' W
10010764-XXX 4' W
("XXX" denotes color choices)
Wilsonart is a registered trademark of Wilsonart, LLC.
-
Ultrabase Side and Back Panel Colors
- Beige - 878
- Sage - 255
- Pearl - 671
- Blue - 875
- Sky - 245
-
Base Colors
- Aurora
- Steel Grey
-
Technical Specifications
SIZES
- Height: 84 ½” (including fixed leg); 87 ½” (facility floor to top of kennel)
- Widths: 3’, 4’
- Lengths: 4', 5', 6', 7', 8'
- Gate Widths: 3’, 4’
MATERIALS
Frame:
- 1” square 18-gauge 304 stainless steel tube construction
Side and Back Panels:
- Lower Panels:
- FRP (fiberglass reinforced plastic), WilsonArt® or stainless steel isolation
- Upper Panels:
- Stainless steel wire grid
- 1” bone grid
- Tempered glass
- FRP
- WilsonArt®
- Stainless steel isolation
GATES
- Wire grid:
- 3/16” diameter, 304 stainless-steel
- 15/16” spacing between vertical wires
- 3-5/8” spacing between horizontal wires
- Welded intersections
- Tempered glass
- Midmark-patented stainless steel two-way latch
REST BENCHES
- Stainless steel
- FRP (fiberglass reinforced plastic)
NOTE: Midmark does not supply plumbing from drain connection to facility sewer.
Wilsonart is a registered trademark of Wilsonart, LLC.
-
Accessories
BOWL SYSTEMS
- Built-in Single- and Double-Bowl Brackets
- 2 ¾ Quart

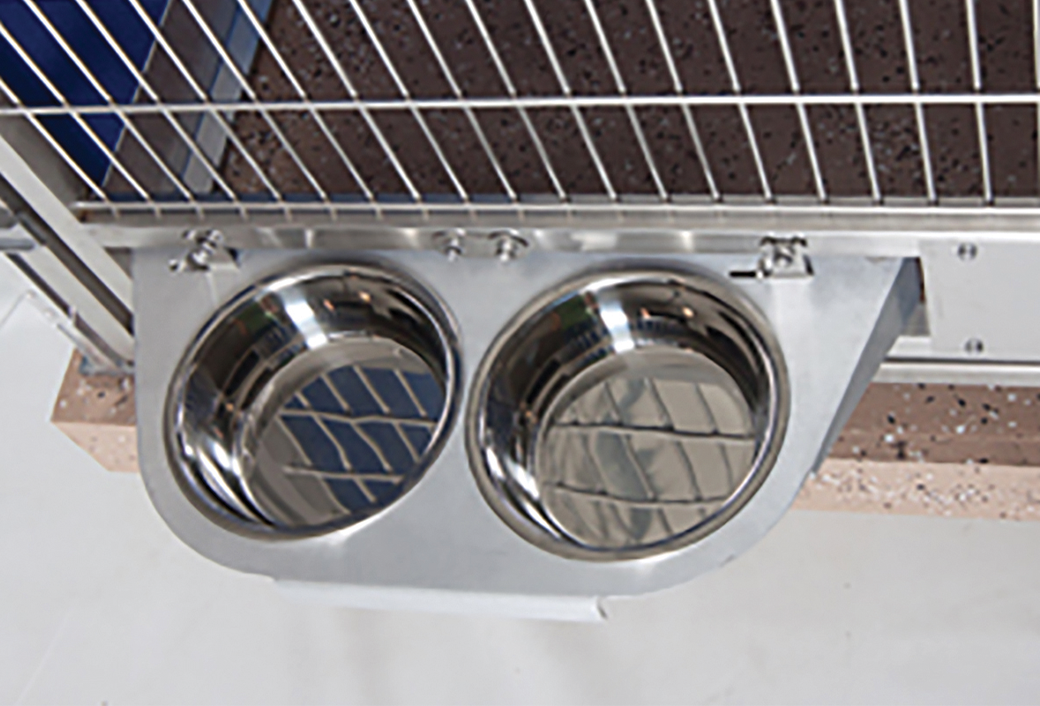

- Rotary Double Bowl Insert
- 1 Quart
LATCHES
- Patented Stainless Steel Two-Way Latch
RAISED FLOORING
- Plastisol Coated Steel-Core: Blue

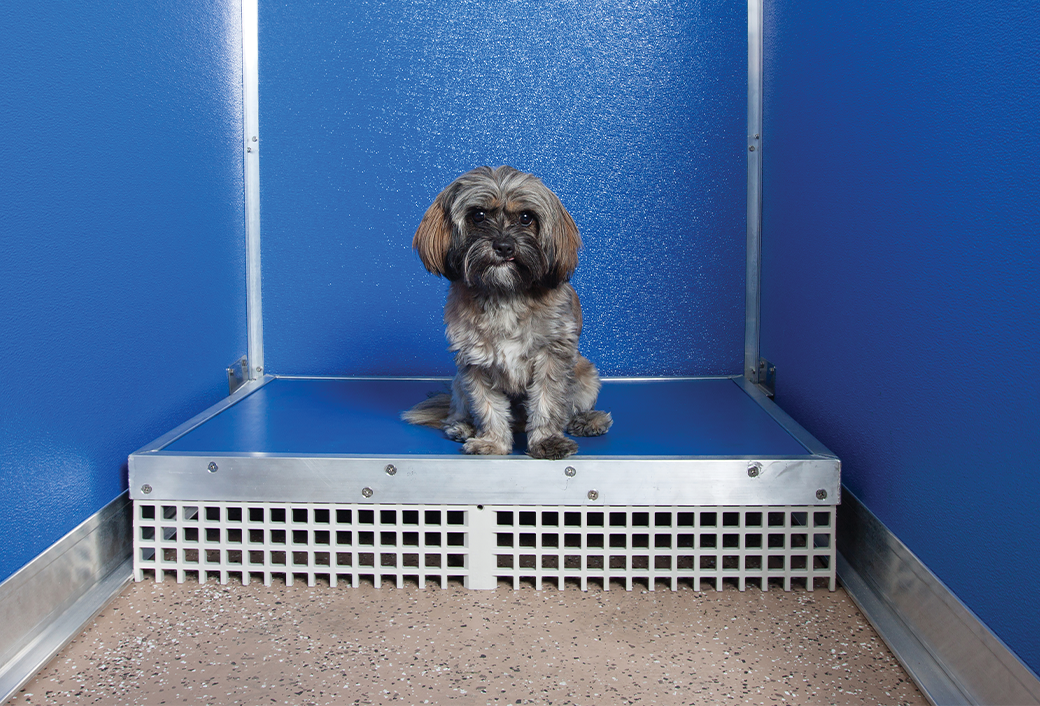

REST BENCHES
- Freestanding or Swing-up Styles
TOP COVERS
- Welded Wire

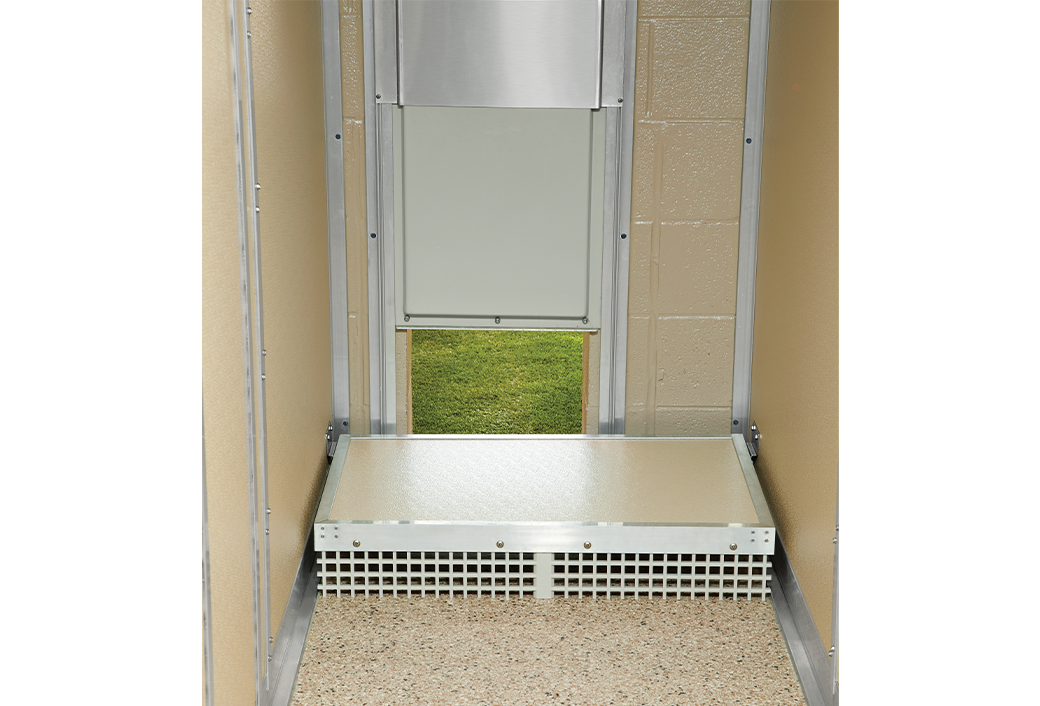

TRANSFER DOORS
- Standard Wall-Mounted Doors
- Cable Guard Wall-Mounted Doors
- Fiberglass Insulated Doors
- Panel-Mounted Doors
- Pickwick™ Dog-Operated Doors
- Locking Transfer Doors
- Locking Transfer Doors
ADDITIONAL ACCESSORIES
- Aluminum Gutter Covers
- Bone-Shaped Weight Assist Handle
- Card Holders
- Feeders
- Nelson® Automatic Waterer (for wall use only)
Nelson is a registered trademark of Nelson Manufacturing Company
-
