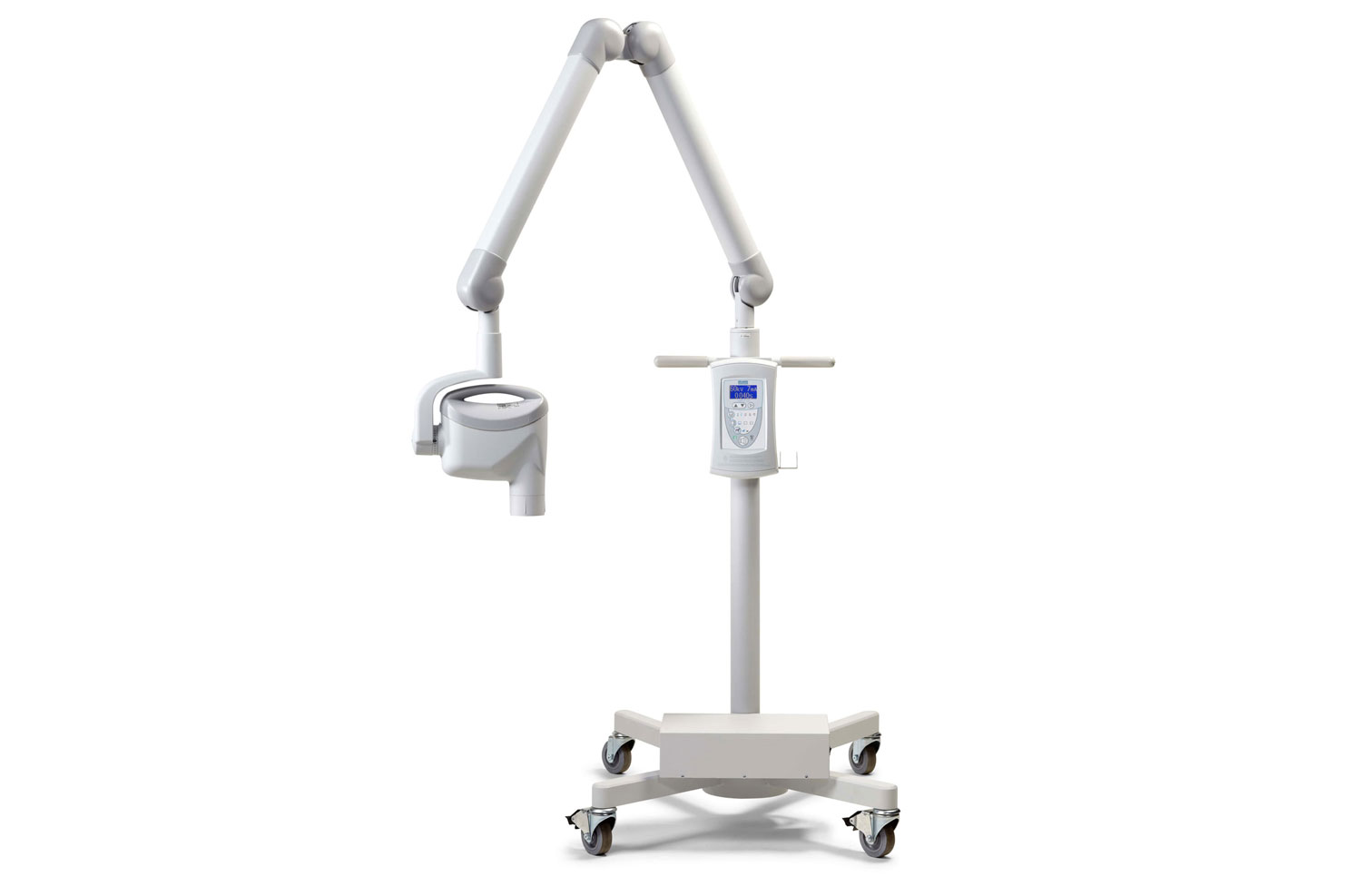

Don't let patients leave your clinic with undiagnosed disease. Only through the use of dental radiographs can you effectively diagnose dental disease that could result in tooth loss and many systemic diseases effecting the heart, liver and kidneys.
Line Voltage: 120-230 VAC +/- 10% 50-60 Hz
Line Load: Maximum current amps
Tube Potential: 60, 65 or 70 kV
Tube Current: 4, 5, 6 or 7 mA
Exposure Time: 20 ms to 2 s
Cone Length: 20 cm (8 inches)
Minimum Inherent Filtration: 2 mm Al equivalent at 70 kV
Focal Spot: 0.4 mm (IEC 60336)
Duty Factor: 1:15
Remote exposure hand switch included
Shipping Weight: 95 lb (wall mount) / 330 lb (mobile)
21 CFR, Subchapter J
IEC 60601-1-2 and -3
UL 2601-1, CAN/CSA C22.2 NO
601.1-M90, IEC606061-2-7
IEC 60601-2-28
Warranty: 2 years, limited
Options: choice of 56", 66", 76" or 82" (total reach); double stud mounting plate
