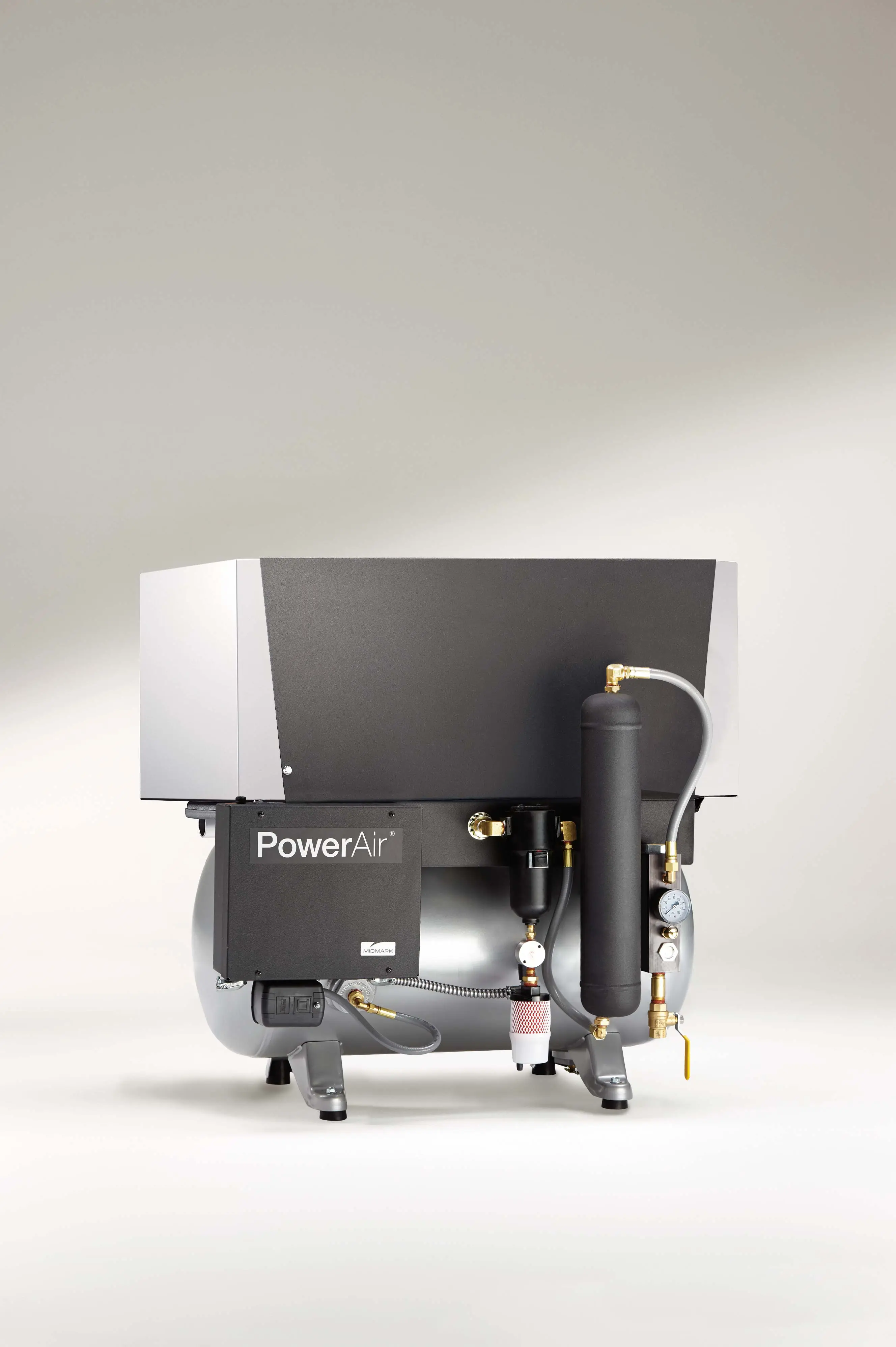

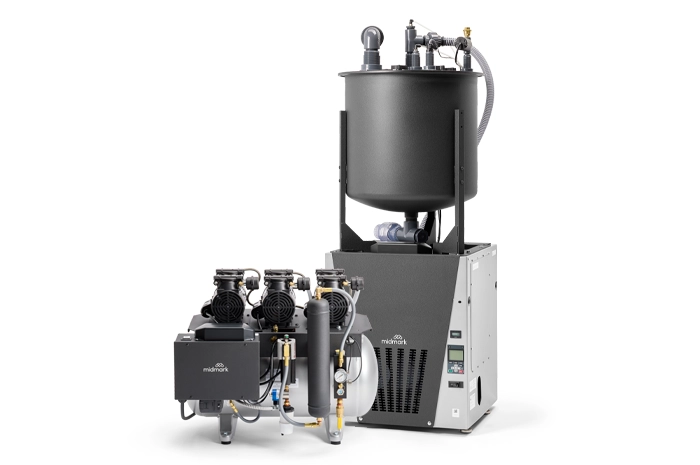

Midmark® Smart Air Compressors

Help protect your patients, optimize handpiece performance and preserve your equipment with Midmark Smart Air Compressors. Designed for dental applications, each dental compressor features a coalescing filter that removes 99.9997% of compressed-air contaminants and a drying system that lowers the pressure dew point below 0°F (-17.78°C). The result is clean, dry air your practice depends on for safe, confident care.

Quality + Reliability

  • Compression Rate – One of the highest cubic-feet-per-minute (CFM) compression rates available for consistent, dependable airflow.
  • Air Filtration + Drying – A 0.01-micron coalescing filter and desiccant drying system help support infection prevention while protecting handpieces from oil, moisture and premature wear.
  • Efficient Design – Oil-less design eliminates messy oil changes and helps conserve resources.

Compliance + Protection

  • NFPA Compliance – NFPA 99 Level 3-rated air compressors designed specifically for dental applications.
  • Warranty Coverage – 5-year/3,500-hour limited product warranty.

Optimized Performance

  • Midmark Smart View™ Connectivity – Enables software updates and refinements designed to help prevent issues, minimize downtime and keep your equipment performing at its best.



  • Resources

  • Technical Specifications

    Compressor Specifications
    ModelP21P22P32P52P72
    User capacity1-31-33-55-77-10
    CFM @ 80 psi5.25.27.810.615.9
    No. of heads22323
    Total horsepower1.51.52.253.24.8
    Voltage115208-230208-230208-230208-230
    Line frequency60 Hz60 Hz60 Hz60 Hz60 Hz
    Total amps167112029
    Circuit breaker (amps)2020203040
    dBA6565677073

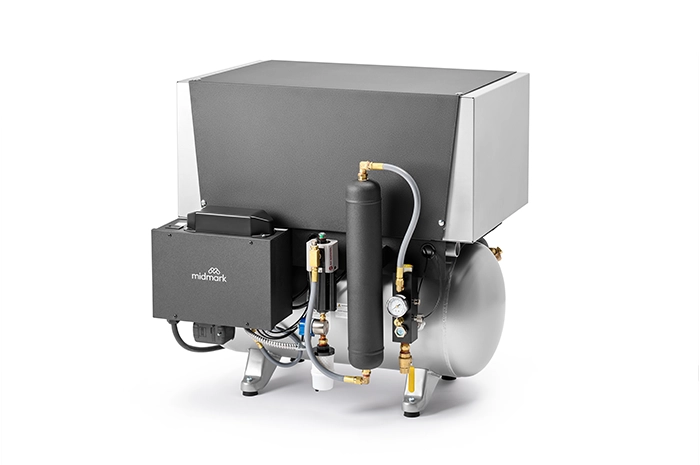

    dBA with sound cover6060626568
    Tank capacity10 gal10 gal20 gal20 gal32 gal
    Size (H x W x D)27" x 26" x 24"27" x 26" x 24"29" x 33" x 26"31" x 33" x 26"33" x 40" x 27"
    Size with sound cover (H x W x D)32" x 26" x 26"32" x 26" x 26"33" x 33" x 28"33" x 33" x 28"39" x 40" x 30"
    Temperature range (°F)40-10440-10440-10440-10440-104
    Shipping weight (lb)285285360410500
    User capacity
    P21
    1-3
    P22
    1-3
    P32
    3-5
    P52
    5-7
    P72
    7-10
    CFM @ 80 psi
    P21
    5.2
    P22
    5.2
    P32
    7.8
    P52
    10.6
    P72
    15.9
    No. of heads
    P21
    2
    P22
    2
    P32
    3
    P52
    2
    P72
    3
    Total horsepower
    P21
    1.5
    P22
    1.5
    P32
    2.25
    P52
    3.2
    P72
    4.8
    Voltage
    P21
    115
    P22
    208-230
    P32
    208-230
    P52
    208-230
    P72
    208-230
    Line frequency
    P21
    60 Hz
    P22
    60 Hz
    P32
    60 Hz
    P52
    60 Hz
    P72
    60 Hz
    Total amps
    P21
    16
    P22
    7
    P32
    11
    P52
    20
    P72
    29
    Circuit breaker (amps)
    P21
    20
    P22
    20
    P32
    20
    P52
    30
    P72
    40
    dBA
    P21
    65
    P22
    65
    P32
    67
    P52
    70
    P72
    73
    dBA with sound cover
    P21
    60
    P22
    60
    P32
    62
    P52
    65
    P72
    68
    Tank capacity
    P21
    10 gal
    P22
    10 gal
    P32
    20 gal
    P52
    20 gal
    P72
    32 gal
    Size (H x W x D)
    P21
    27" x 26" x 24"
    P22
    27" x 26" x 24"
    P32
    29" x 33" x 26"
    P52
    31" x 33" x 26"
    P72
    33" x 40" x 27"
    Size with sound cover (H x W x D)
    P21
    32" x 26" x 26"
    P22
    32" x 26" x 26"
    P32
    33" x 33" x 28"
    P52
    33" x 33" x 28"
    P72
    39" x 40" x 30"
    Temperature range (°F)
    P21
    40-104
    P22
    40-104
    P32
    40-104
    P52
    40-104
    P72
    40-104
    Shipping weight (lb)
    P21
    285
    P22
    285
    P32
    360
    P52
    410
    P72
    500
