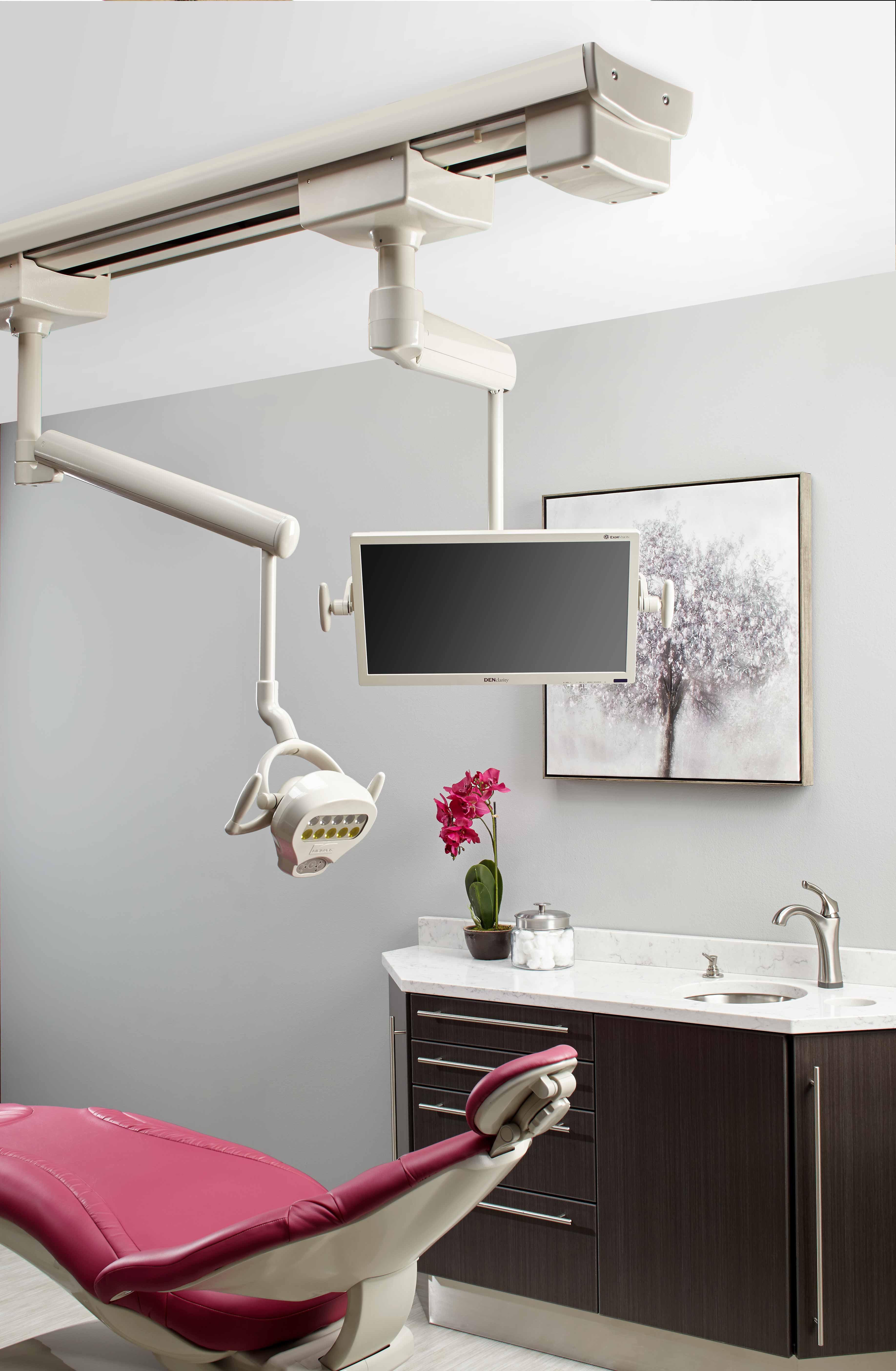

Midmark Track Light Monitor
Get optimal dental lighting and excellent monitor positioning with the Midmark Track Light Monitor, which can enhance the patient experience while improving efficiency and case acceptance.

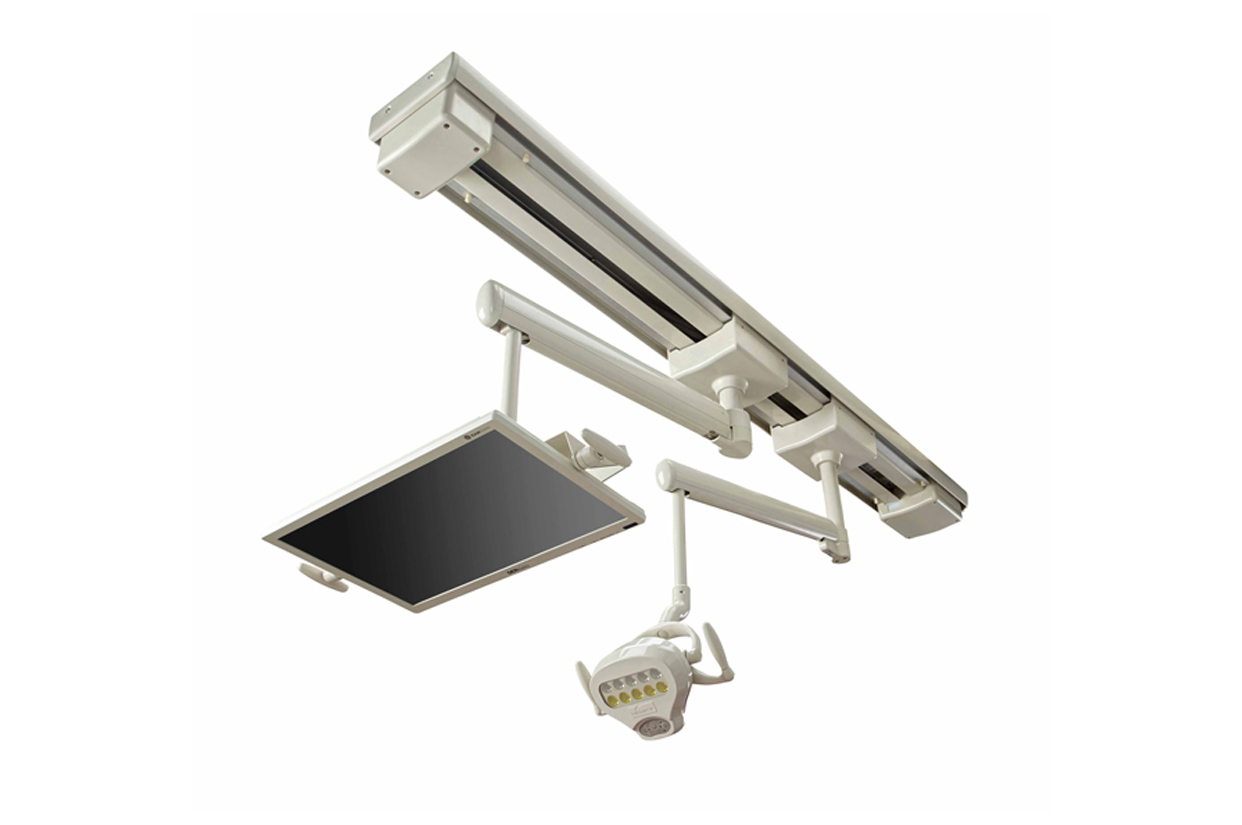

Overhead Viewing
Position the monitor over a patient in the supine position using the counterbalanced flex arm and independent trolleys. Interference with the operatory light is minimized so you and your patient enjoy unobstructed views.

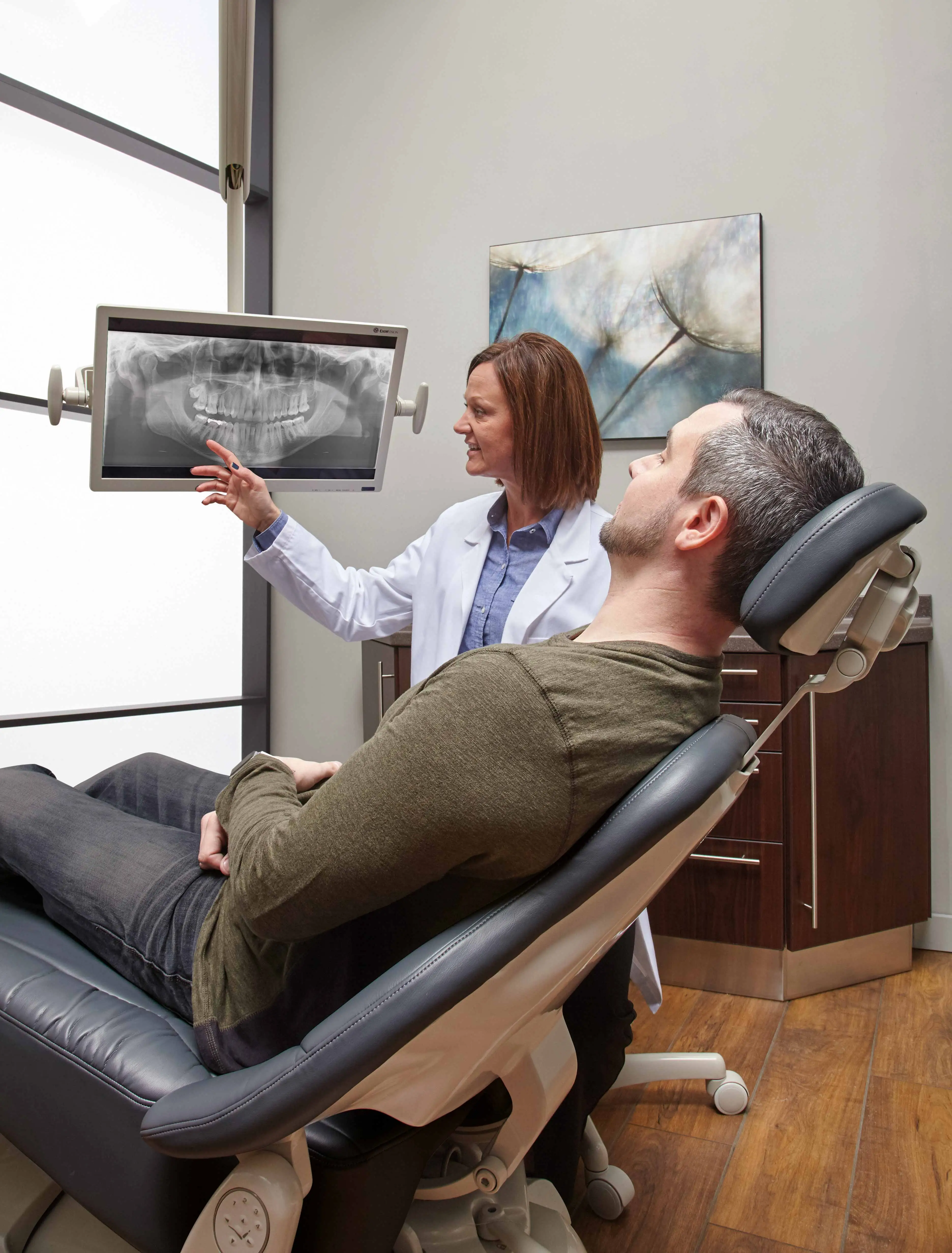

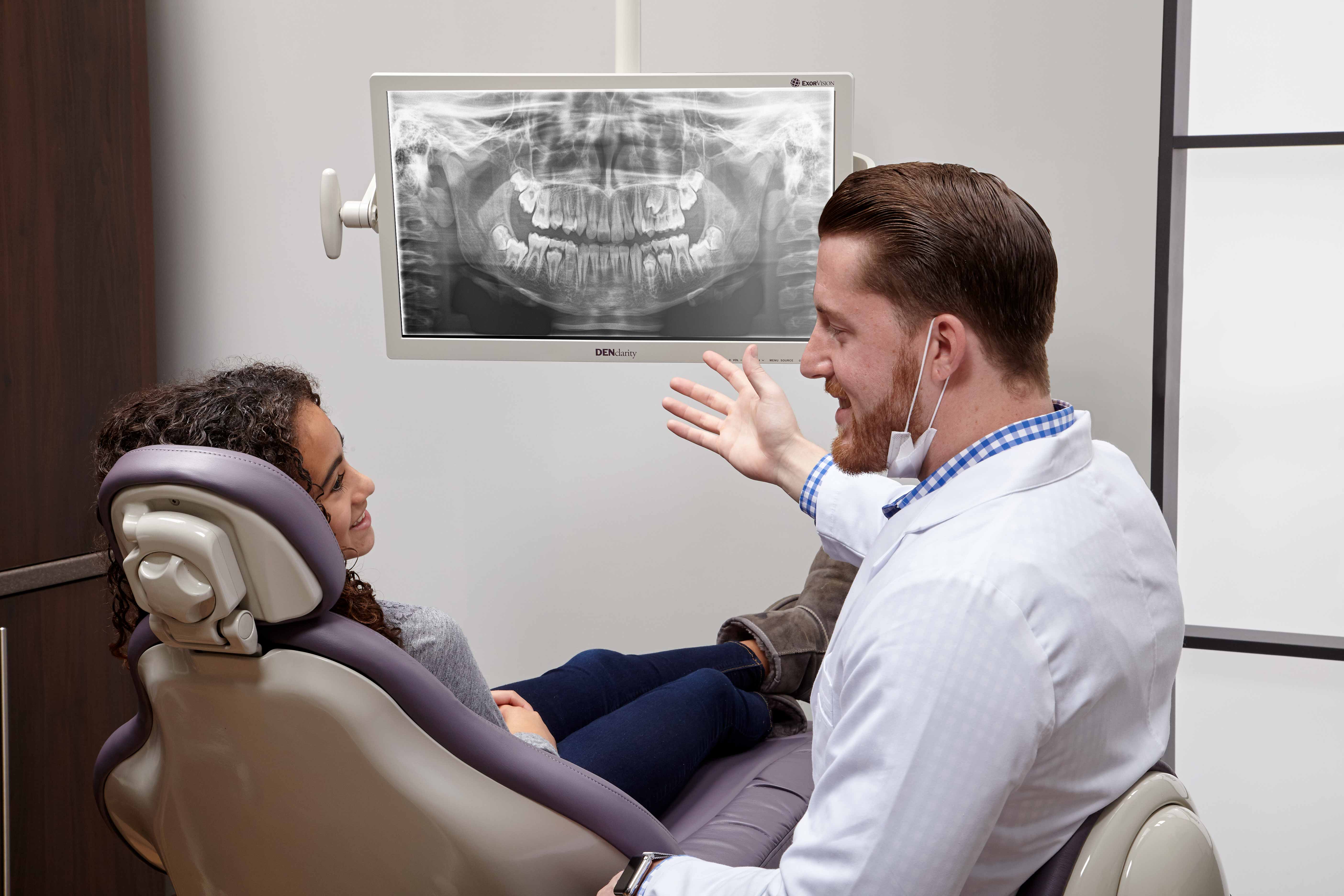

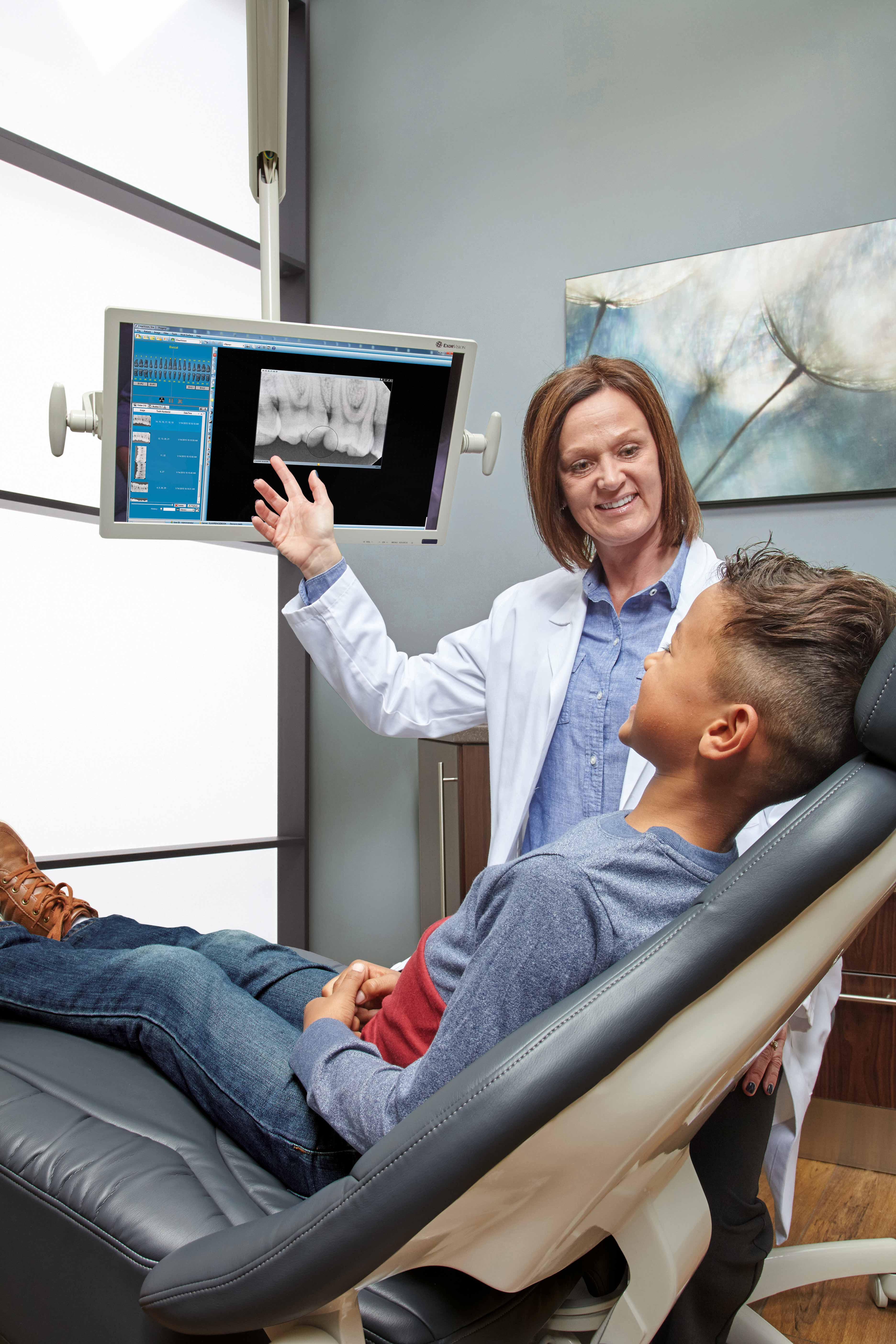

Chairside Viewing
Ideal for chairside consultation, the monitor can be placed at the patient's eye level for viewing digital X-rays, intraoral camera images, patient education materials and entertainment.
Options and Monitor
The CANVYS® True Flat G Series 21.5" Display is a clinically certified (DICOM compliant) monitor featuring a full HD display with a true flat design and a plane, non-reflecting glass surface, which simplifies cleaning and disinfection. The Track Light Monitor is available for ceiling heights ranging from 8’ to 10’ 7”.
-
Technical Specifications
Monitor
• 21.5" dental grade
• Sealed, HD display
• Buttons and speakers are designed to withstand the use of disinfectants
• True flat design with anti-glare protection glass and IP65-rated front, IPX1-rated whole unit
• LED backlight with low power consumption
• Medical certified (DICOM compliant)Overall Dimensions:
Approx. 20.25" x 12.58"Monitor Continued
Display Area:
Approx. 18.78" x 10.62" (21.5" diagonal)Colors:
16.7 millionResolution:
1920 x 1080 pixelsDigital TV tuner with CC:
NTSC, ATSC and QAMHD support:
480i, 480p, 720p, 1080i, 1080pNominal Output Voltage with Tolerance:
24 VDC ± 5%Operatory Light
• Quality white light
• Exceptional shadow reduction
• Automatic motion-controlled on/off function
• Three intensity settings
• Independent composite-safe setting
• Upfront touchpad controls
• Three axes of rotation for precise positioning
• Feathered edge to reduce eye strain -
