Since the consolidation of medical practices into integrated health systems, many providers are finding it difficult to establish network-wide operational standards. These variables can have a significant, adverse impact on costs and outcomes. Vital signs acquisition
is one process that is long overdue for change. IQvitals Zone was designed to save time and eliminate errors, helping improve costs and outcomes.

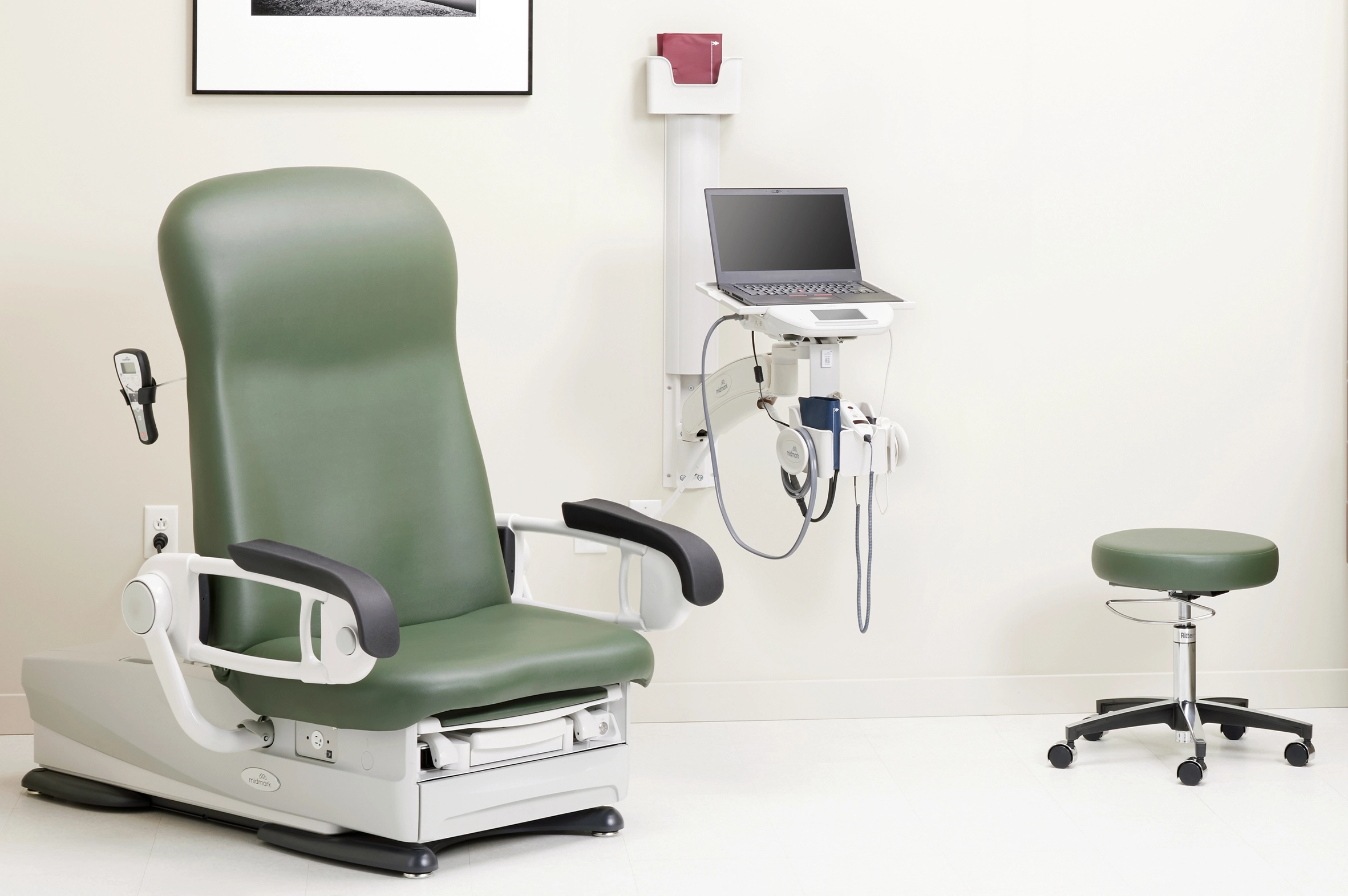

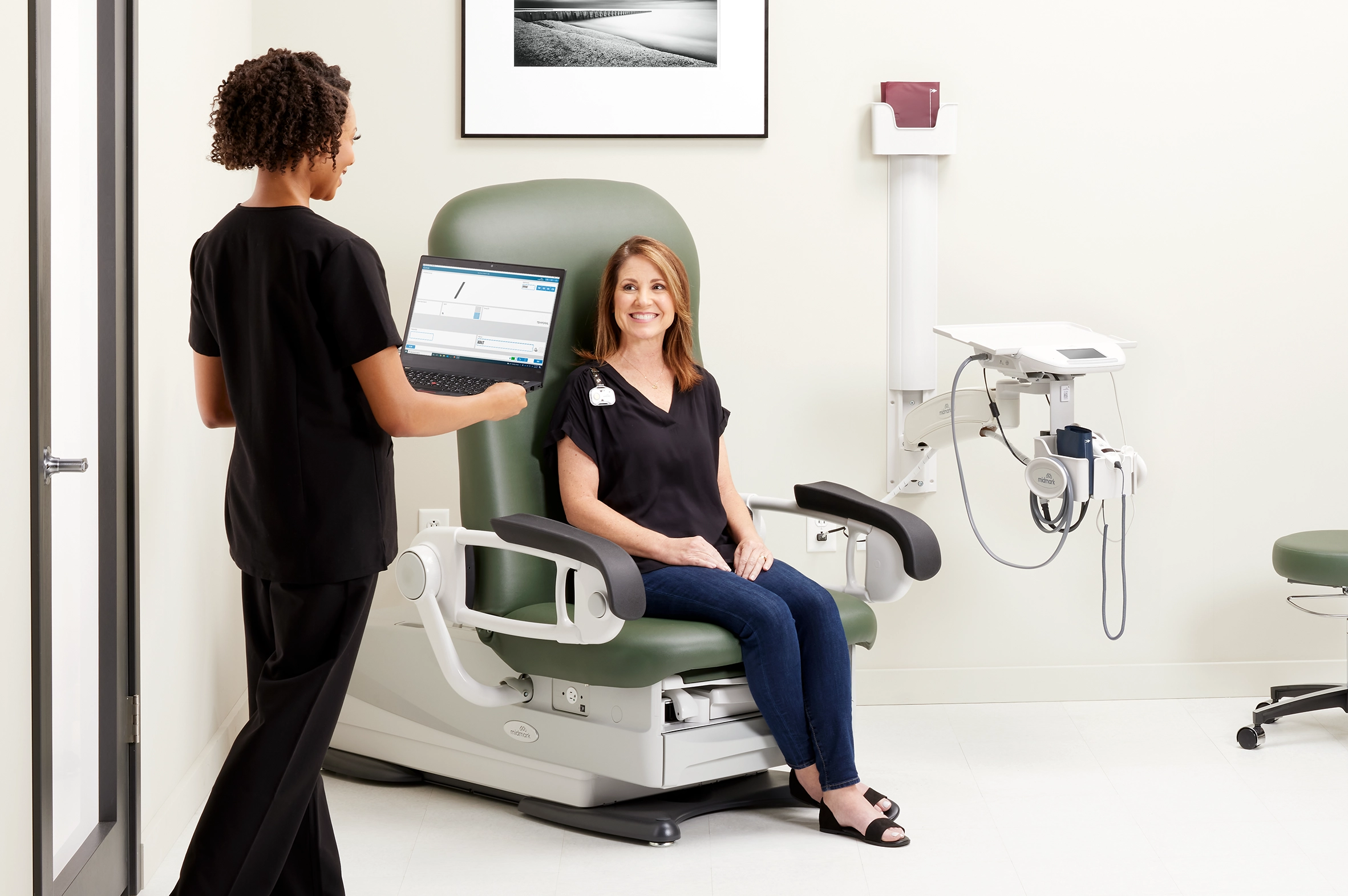

Midmark Zone™ Technology connects the IQvitals Zone wireless monitor to a computer—no cables, no manual pairing. As you move in and out of range of the vital signs monitor, your computer will automatically connect and disconnect through a secure Bluetooth ® Low Energy (BLE) connection.

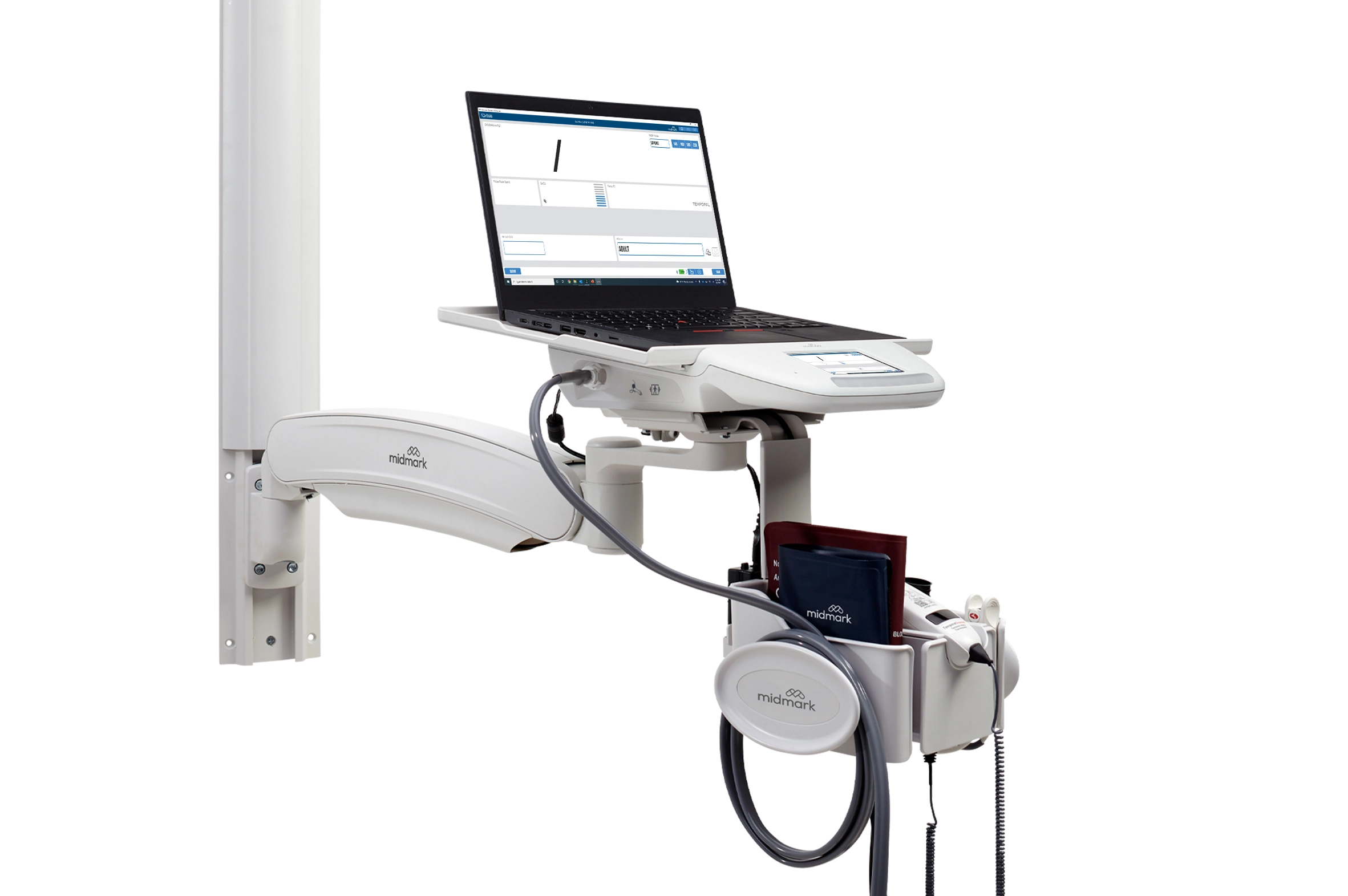

Run all IQvitals Zone functions at the point of care with our easy-to-use touchscreen or through your computer.

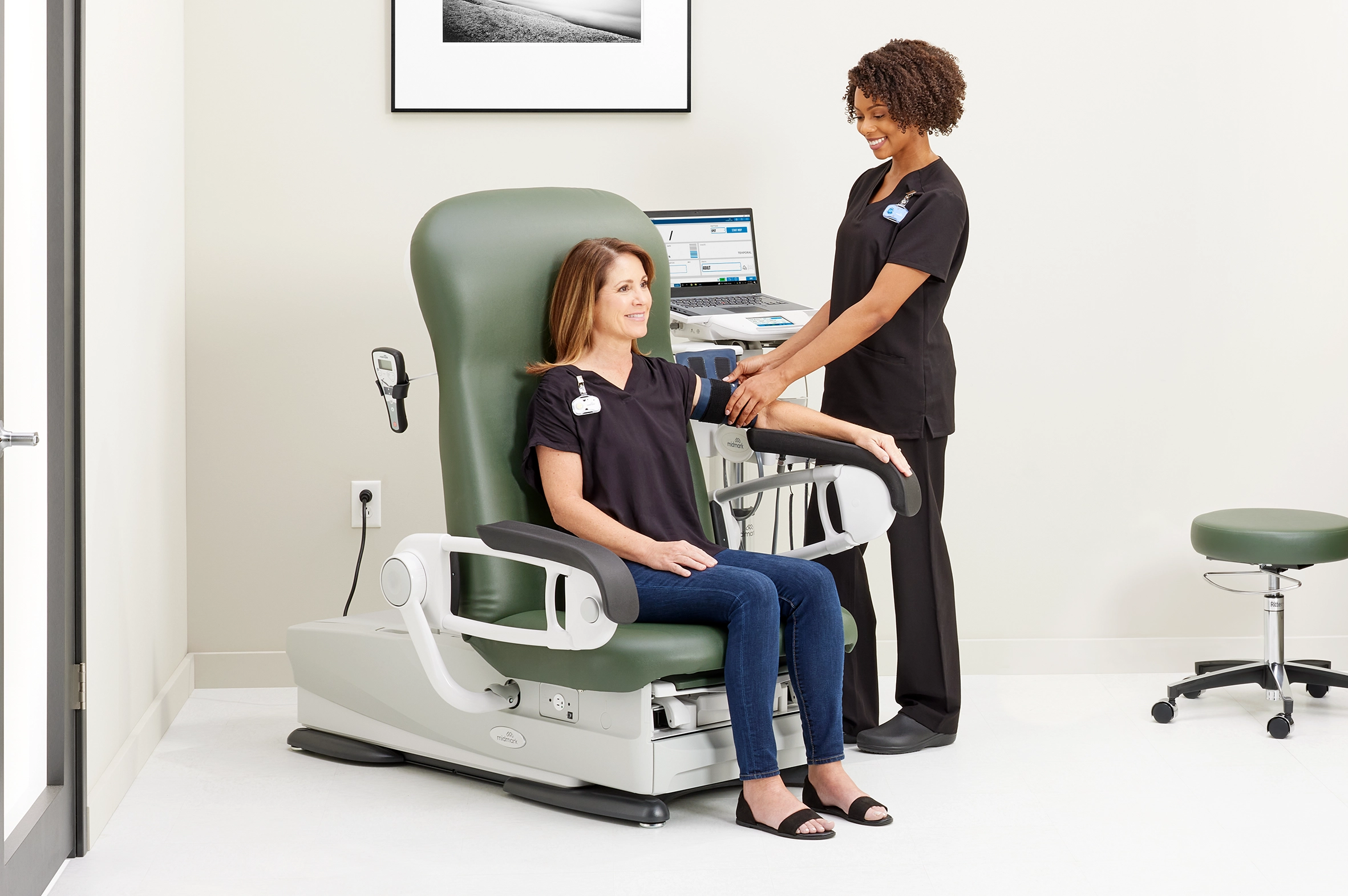

When the SPRINT BP Protocol is initiated, the screen displays a checklist to help ensure proper patient positioning techniques are followed. The technician may then leave the room so the patient is undisturbed to help reduce white coat hypertension. When the preset delay start timer expires, the IQvitals Zone device automatically captures three blood pressure measurements and produces the average reading.
IQvitals Zone offers either step deflation or Serenity BP™ linear deflation, designed by Midmark, to deliver quick, accurate measurements that are more comfortable for the patient.

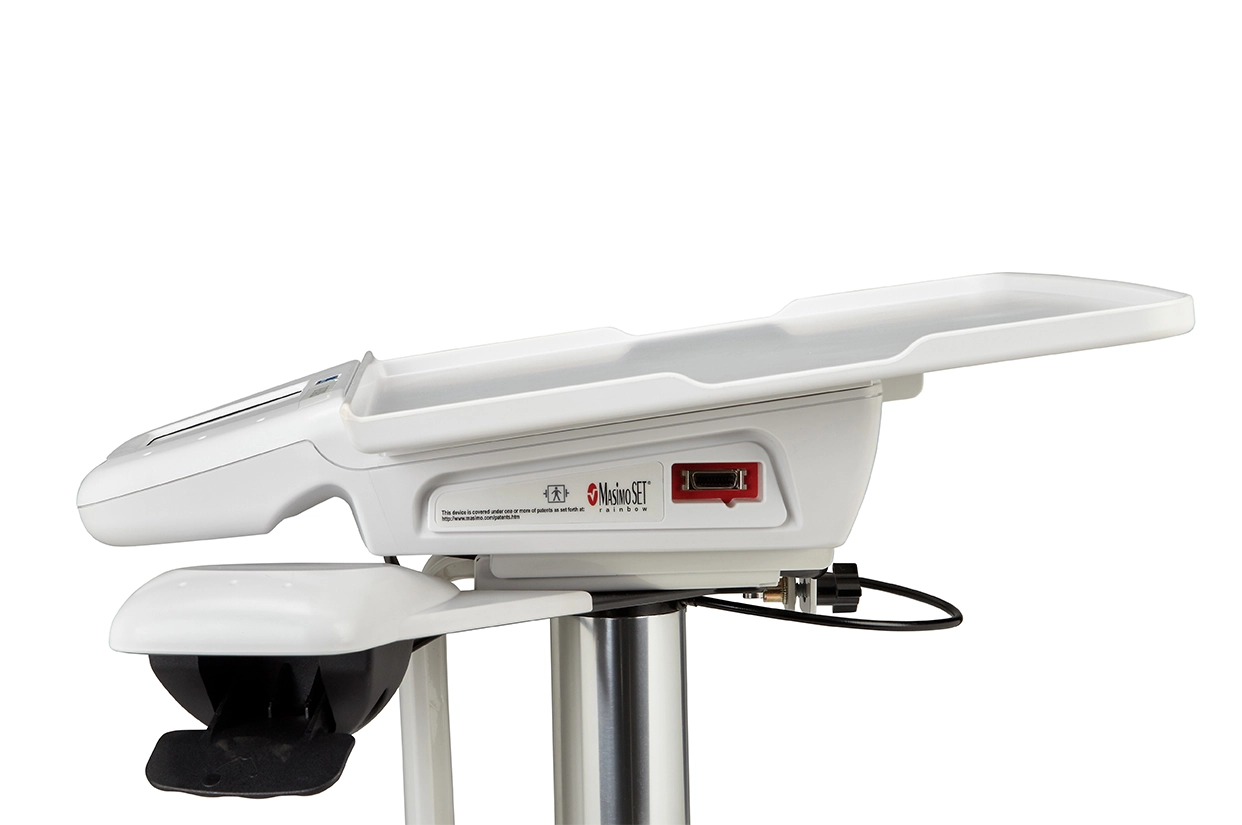

Choose from industry-leading SpO<sub>2</sub> technologies, Masimo SET®* or Nellcor™ OxiMax™.

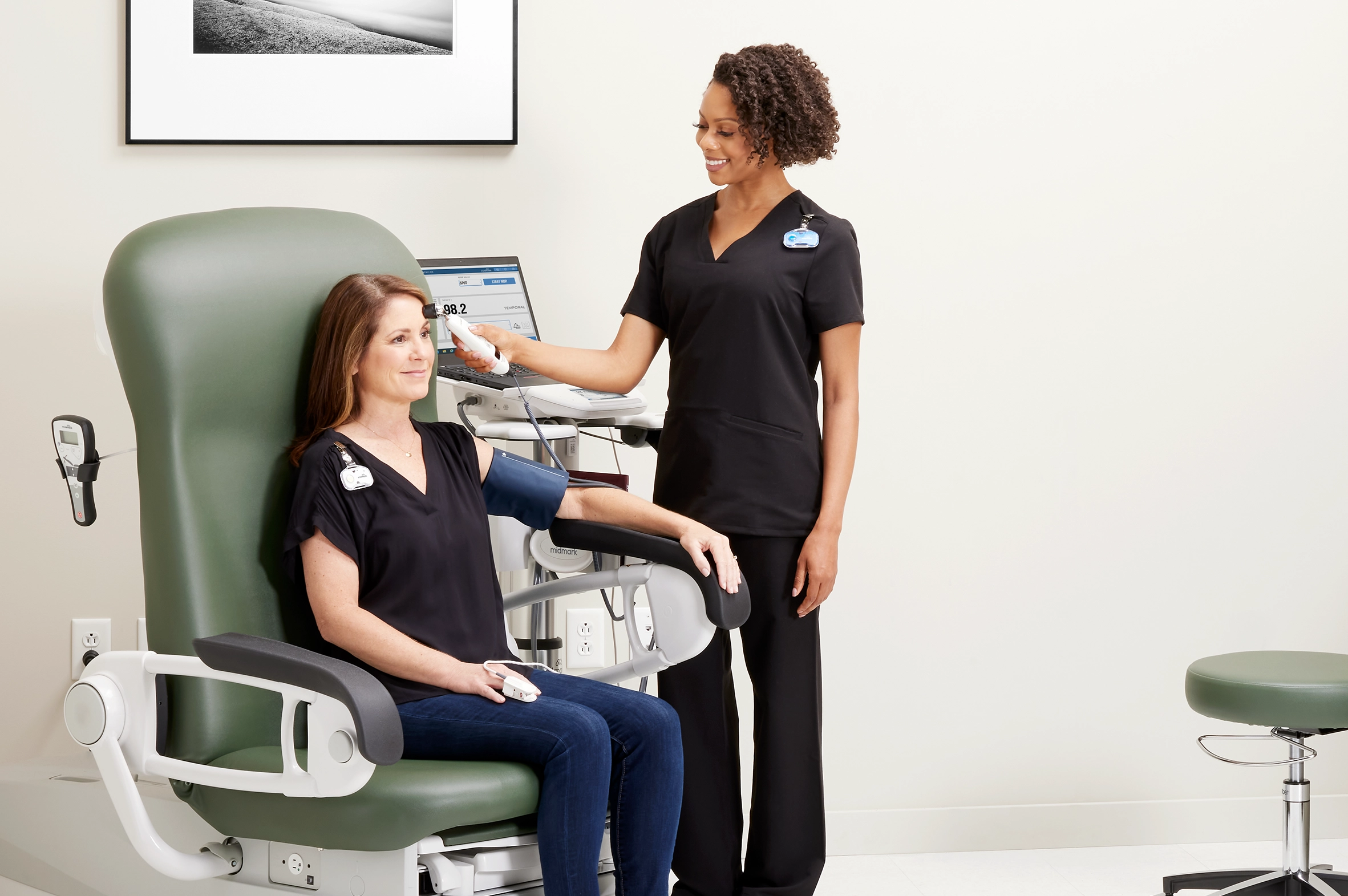

Each IQvitals Zone device comes standard with an Exergen TemporalScanner™ thermometer.

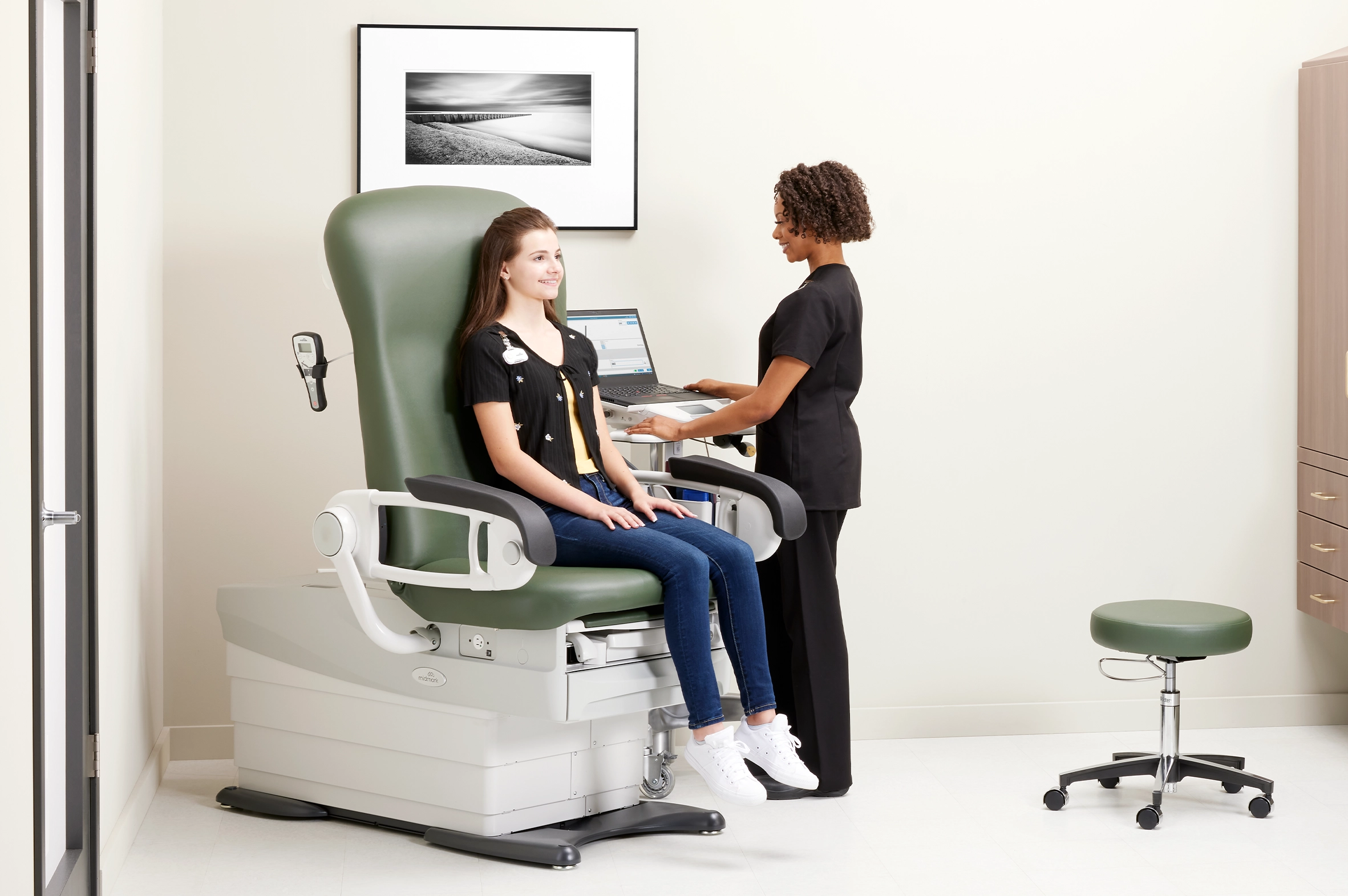

Connect the IQvitals Zone device to the Midmark 626 Barrier-Free® Exam Chair with the integrated Digital Scale to weigh patients quickly and discreetly from the comfort of the exam chair. Then, data can be imported directly into the EMR.

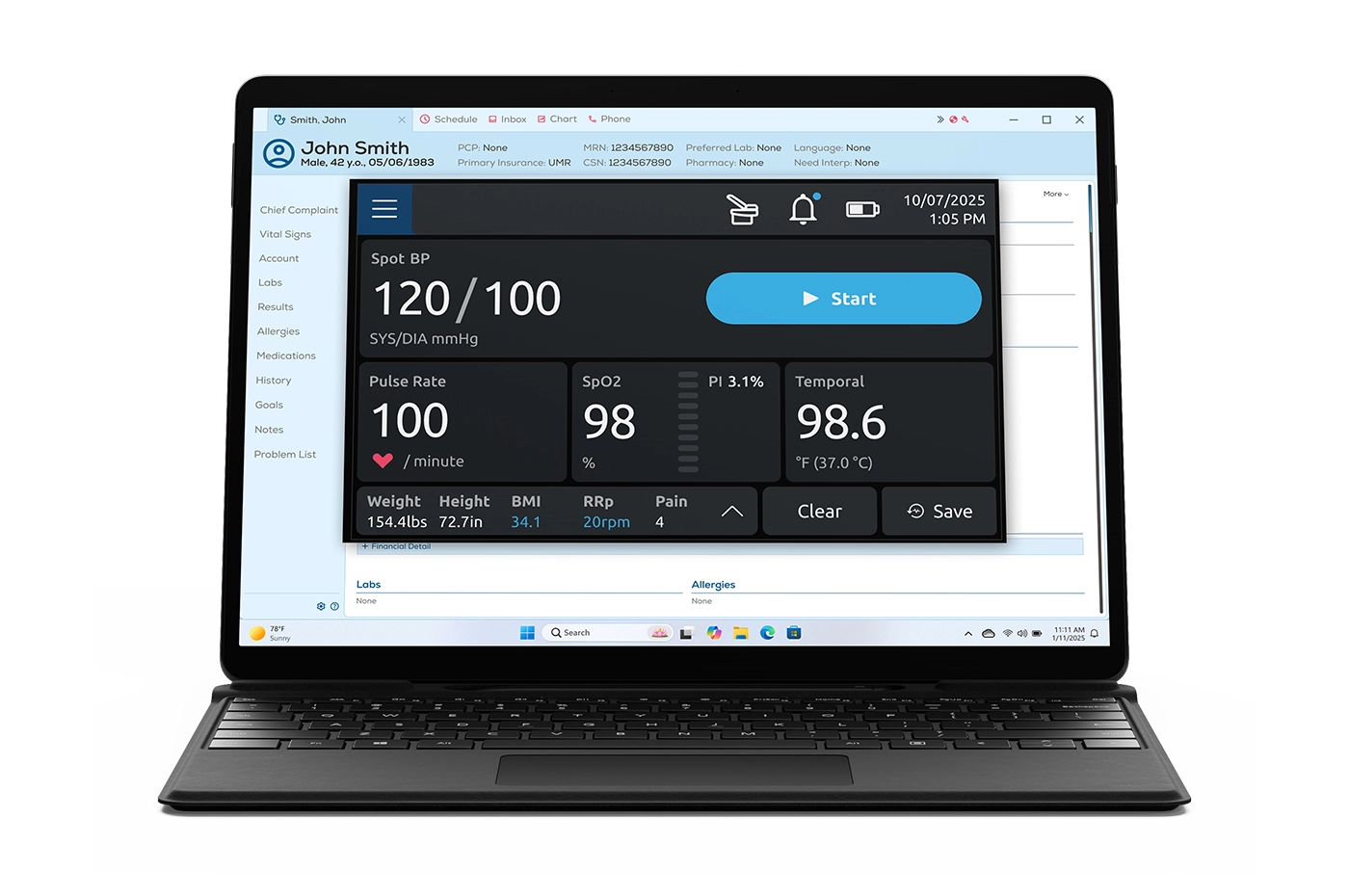

The Midmark IQconnect® framework provides a seamless connection from devices to the EMR system. In other words, it allows the user to operate all devices and import data into the EMR from one single pane of glass—the computer screen.
* Masimo Pulse CO-Oximeters deliver accurate pulse oximetry during motion and low perfusion.
4.5 lb (2.04 kg)*DIMENSIONS
12" L x 11.5" W x 2.75" H (292 x 304 x 70 mm)*POWER
100 - 240 VAC, 50/60 Hz, 1.5 A max.BATTERY
Rechargeable 7.2 V lithium ion battery; 6 hours to fully chargeNON-INVASIVE BLOOD PRESSURE METHOD
Systolic, Diastolic and Mean Arterial Pressure (MAP)MEASUREMENT ACCURACY
Systolic: ±5 mmHg, MAP: ±5 mmHg, Diastolic: ± 5mmHgMEASUREMENT RANGE
Systolic: 50 to 260 mmHg, MAP: 30 to 230 mmHg, Diastolic: 20 to 210 mmHg
Exergen TemporalScanner, infrared thermometerMEASUREMENT UNIT
Fahrenheit (F), Celsius (C)MEASUREMENT RANGE
61 to 110°F (16 to 43°C)**MEASUREMENT ACCURACY
± 0.2°F or 0.1°C Per ASTM E1112MEASUREMENT TIME
Masimo SET or Nellcor OxiMaxMETHOD ABSORPTION
Spectrophotometric (dual wavelength)REPORT INTERVAL
1 secondMEASUREMENT RANGE
Masimo - SpO2 : 0-100%, PR: 25 to 240 BPM
Nellcor - SpO2 : 1-100%, PR: 20 to 250 BPM
Bluetooth and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc.
Exergen TemporalScanner (AHB™) Thermometer is a trademark of Exergen.
Nellcor and OxiMax are trademarks of Covidien AG.
Masimo SET is a registered trademark of Masimo Corporation.

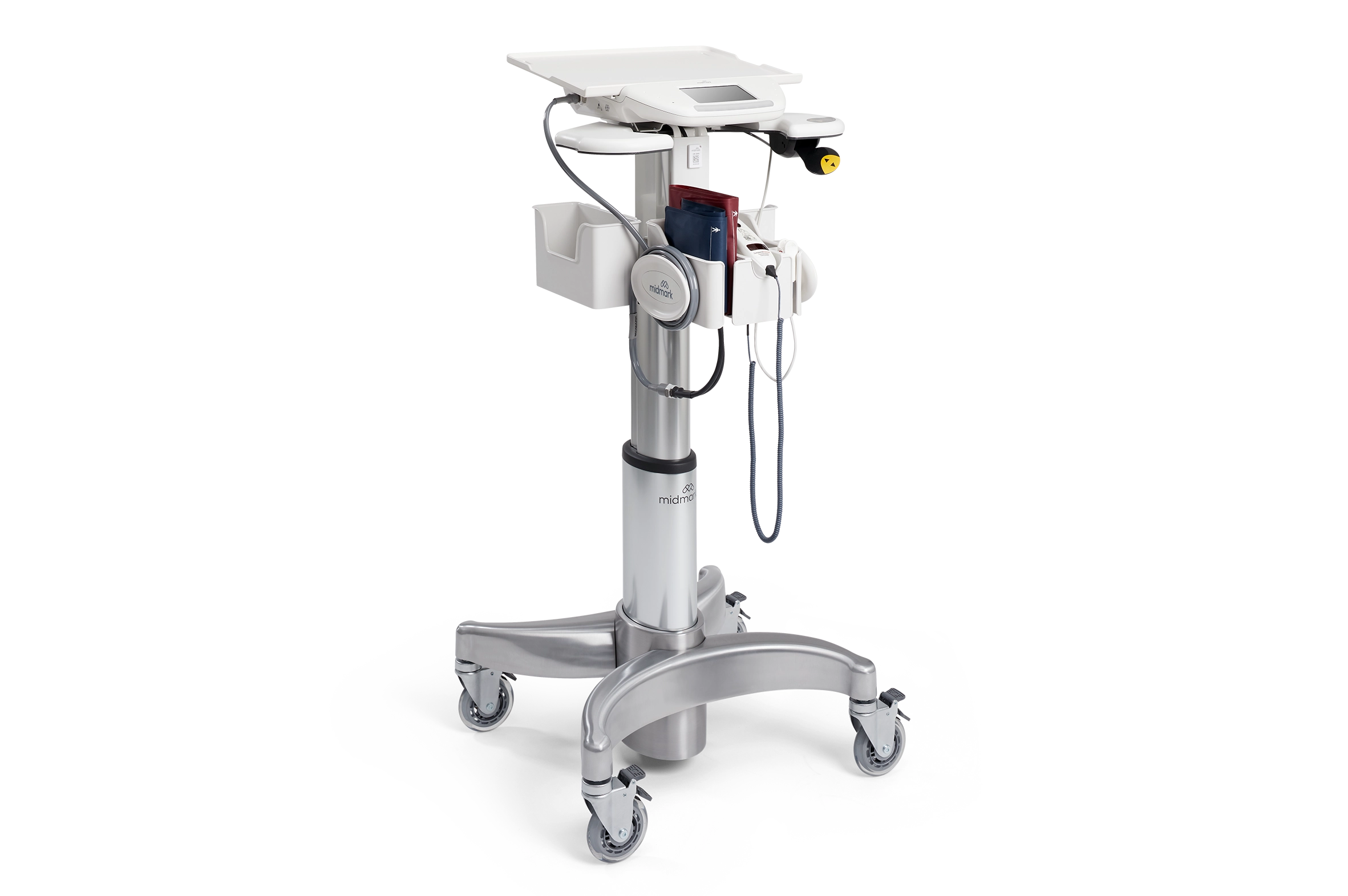

*Dimensions including weight do not include the mobile cart or wall mount.
**16°C rounded up from 15.5°C.
