Midmark Sani-Kennels are designed to look great while providing a safe and welcoming environment for the animals in your care. The Sani-Kennel system is a highly configurable modular kennel design that:
• Is easy to clean
• Maintains effective air flow
• Utilizes existing floors
• Employs the best and broadest panel system in the industry
• Works in a variety of environments from animal shelters and pet resorts to animal hospitals and military operations
Combine the Sani-Kennel system with patented Sani-Slope and the Silvis Seal for superior floor mounting and leveling.
Contact us for free design assistance and price quotes.
GATES/STALL FRONTS:
1” square 18-gauge 304 stainless steel tube construction
Gates are measured by run width and are available in one inch increments from 29 to 42 inches wide
Stall fronts are measured by run width and are available in one inch increments from 43 to 72 inches wide
With an option of:
3/16” diameter, 304 stainless-steel wire grid. Spacing is 15/16” between vertical wires and 3-5/8” between the horizontals with every intersection welded.
24 gauge 304 stainless steel sheets, bonded on each side of a polypropylene fluted core.
Glass panels shall be 1/4” tempered glass with aluminum edge protection.
FRP (fiberglass re-enforced plastic) bonded on each side of a polypropylene fluted core with aluminum edge protection.
High pressure Wilsonart® laminate bonded on each side of a polypropylene fluted core with aluminum edge protection.

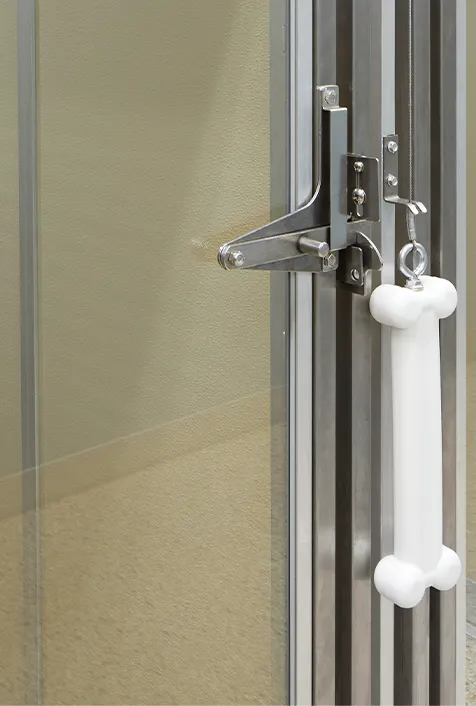

Comes standard with Midmark’s patented stainless steel two-way latch, with other latch options available.
SIDE/END/DIVISION PANELS:
Side Panels are available in six inch increments from 36” to 96”
Back Panels are available in one inch increments from 28 ¼” to 95 ¼”
FRP (fiberglass re-enforced plastic) bonded on each side of a polypropylene fluted core.
High pressure Wilsonart® laminate bonded on each side of a polypropylene fluted core.
24 gauge 304 stainless steel sheets, bonded on each side of a polypropylene fluted core.
Upper panel portion shall be one of the following materials:
High pressure Wilsonart® laminate bonded on each side of a polypropylene fluted core.
24 gauge 304 stainless steel sheets, bonded on each side of a polypropylene fluted core.
3/16” diameter, 304 stainless-steel wire grid. Spacing is 1-1/2” between vertical wires and 4-1/4” between the horizontals with every intersection welded.
Glass panels shall be 1/4” tempered glass.
FRP (fiberglass re-enforced plastic) bonded on each side of a polypropylene fluted core.
1” grid polypropylene structural foam 7/16” thick.
Patented Sani-Slope floor sealing system adjusts to various floor slopes
Midmark’s exclusive patented Silvis Seal provides a long-term, watertight seal for a trouble-free barrier against cross contamination
Sanikennel - Stainless Steel Wire Over Stainless Steel Isolation Panels Sanikennel - Stainless Steel Wire Over Isolation Panels Stainless Steel Wire Stall Fronts Stainless Steel Wire Over Isolation Stall Fronts Stainless Steel Wire Over Isolation Gates Stainless Steel Wire Over Glass Stall Fronts Stainless Steel Wire Over Glass Gates Stainless Steel Wire Gates Stainless Steel Glass Stall Fronts Stainless Steel Glass Over Wire Stall Fronts Stainless Steel Glass Over Wire Gates Stainless Steel Glass Over Isolation Stall Fronts Stainless Steel Glass Over Isolation Gates Stainless Steel Glass Gates
Sani-Kennel Doors
10010756 3' Standard Run Door, S.S.
10010758 4' Standard Run Door, S.S.
10010757 3' Standard Run Door, Glass
10010759 4' Standard Run Door, Glass
Gate/ Sidelight Options:
All Glass
All Wire
Wire over Glass
Glass over Wire
Glass over FRP
Wire over FRP
Panel Options:
All Glass
All Wire
Wire over Glass
Glass over Wire
Glass over FRP
Wire over FRP
Feeder Options:
Double Bowl Bracket 2 1/2 QT or 1 QT
Rotary Double Bowl Insert 1 QT
Solid FRP Back Panel
10010754-XXX 3'
10010755-XXX 4'
("XXX" denotes color choices)
FRP Side Panel with Wire
10010751-XXX 4'
10010752-XXX 5'
10010753-XXX 6'
("XXX" denotes color choices)
