Infrared Sensory Network

The RTLS Precision You Need in Healthcare

Jump to Product Details

A reliable real-time locating system that uses infrared sensors, offering the chair-level locating precision needed for automating workflow and optimizing patient flow.

Wired Infrared Sensors for Low Maintenance

Aesthetics matter. Our wired infrared sensors provide high location granularity in a small, discreet form factor with little ongoing maintenance.

Wired Infrared Sensor Plus for Wayfinding

These strategically placed sensors power third-party Bluetooth® Low Energy (BLE) beacons to allow patient and staff wayfinding throughout your facility—without the need for a battery-powered wayfinding network.

Wireless Infrared Sensors for Easy Installation

Achieve the same level of RTLS precision in a battery-powered infrared sensor, with less install time and no wiring required. Wireless Sensors are interoperable with BLE, making it easy to layer room-certain locating onto BLE deployments.

Explore BLE

Download Image

IR Sensory Network

RTLS Accuracy Options Designed For Healthcare

Our scalable RTLS platforms give your health system the freedom to choose the technology that best suits your needs.

One small, discreet infrared sensor in each location and an inexpensive focus kit allows you to sense an entire room or a 2-foot radius for bed-, bay- or chair-level locating.

Benefits of Wired

Little to no maintenance needed.
No battery changes.
Low total cost of ownership over time.
Aesthetically pleasing design.

Benefits of Wireless

Quicker installation time.
Lower installation costs.
Interoperable with BLE.
Easier relocation of sensors.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

CONTACT AN RTLS SPECIALIST

Wired Sensors

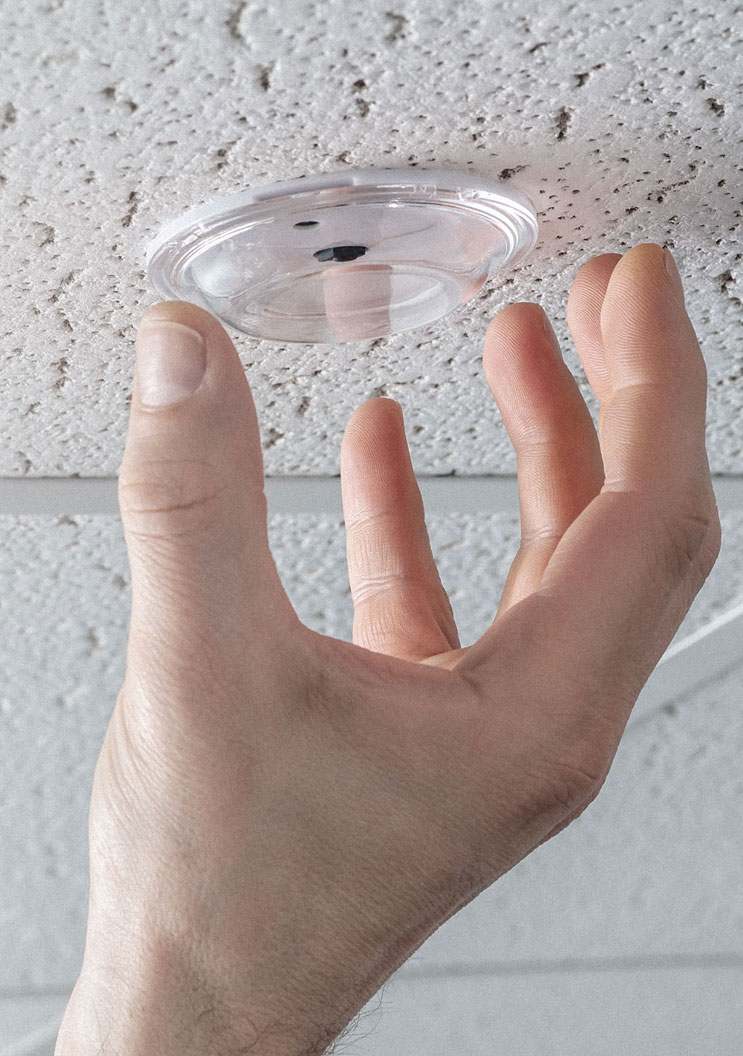

Our seventh generation wired infrastructure provides the highest level of precision needed to drive workflow automation, using small, discreet IR and RF ceiling-mounted sensors. Once installed, little to no maintenance is required, offering a low total cost of ownership.

Infrared (IR) Sensor

Size:
2.75" x 1"
Weight:
1.2 oz
Maximum Location Detection:
15-foot radius (room-level)
Minimum Location Detection:
2-foot radius (chair-level)

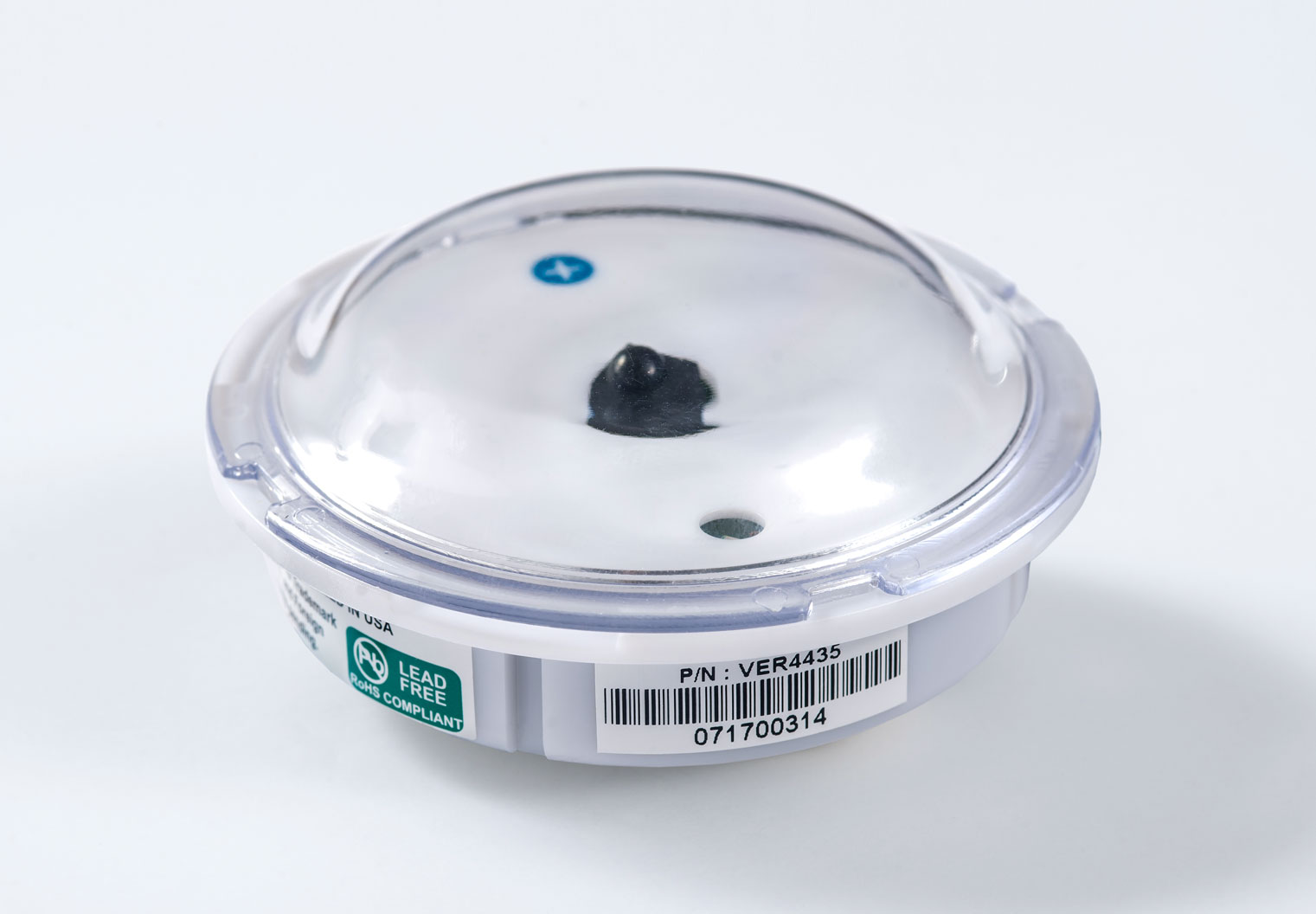

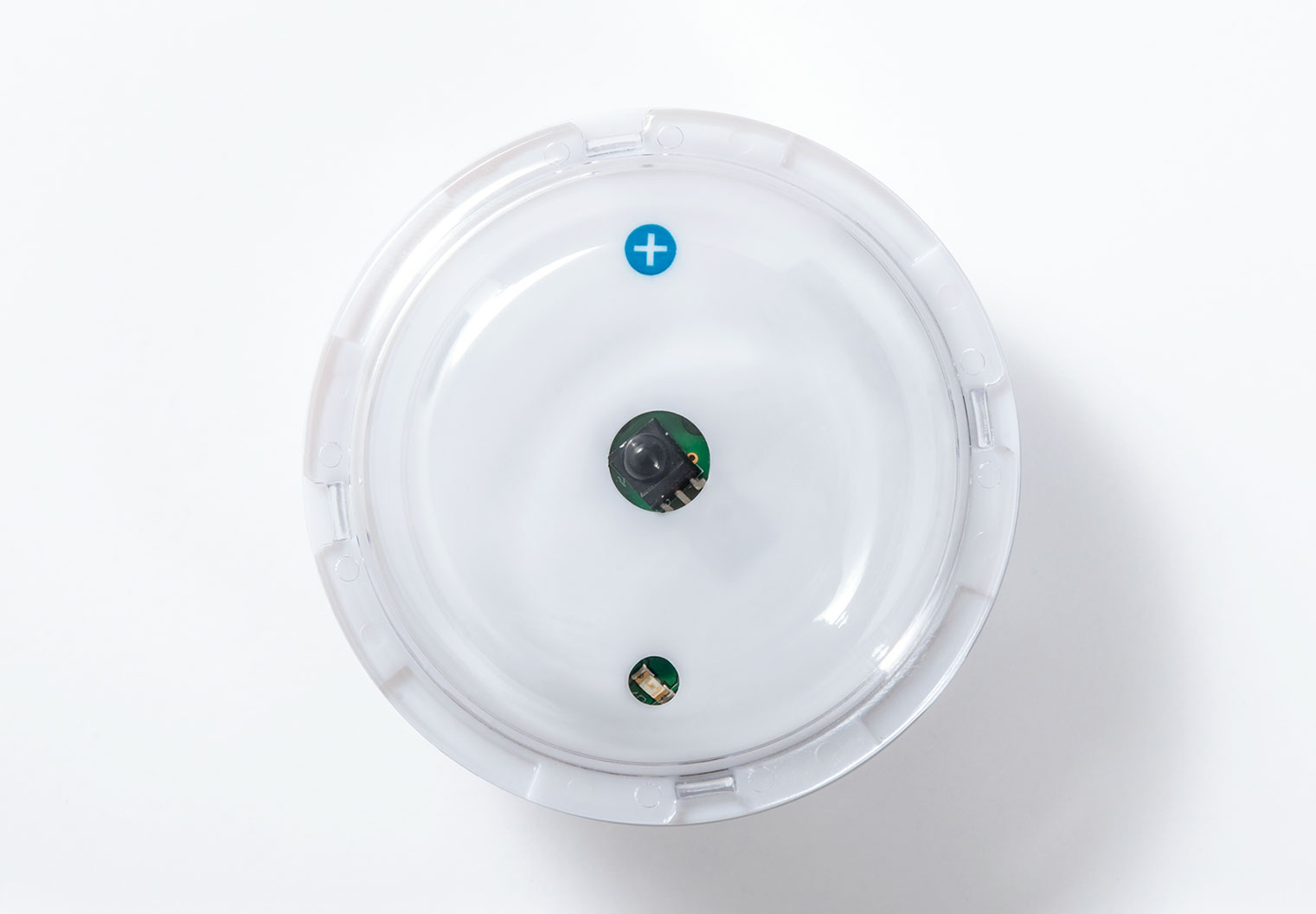

Infrared (IR) Sensor Plus
Includes internal USB port to power Bluetooth® Low Energy (BLE) beacons for wayfinding.

Size:
2.75" x 1"
Weight:
1.2 oz
Largest Location Detection:
15-foot radius (room-level)
Smallest Location Detection:
2-foot radius (chair-level)

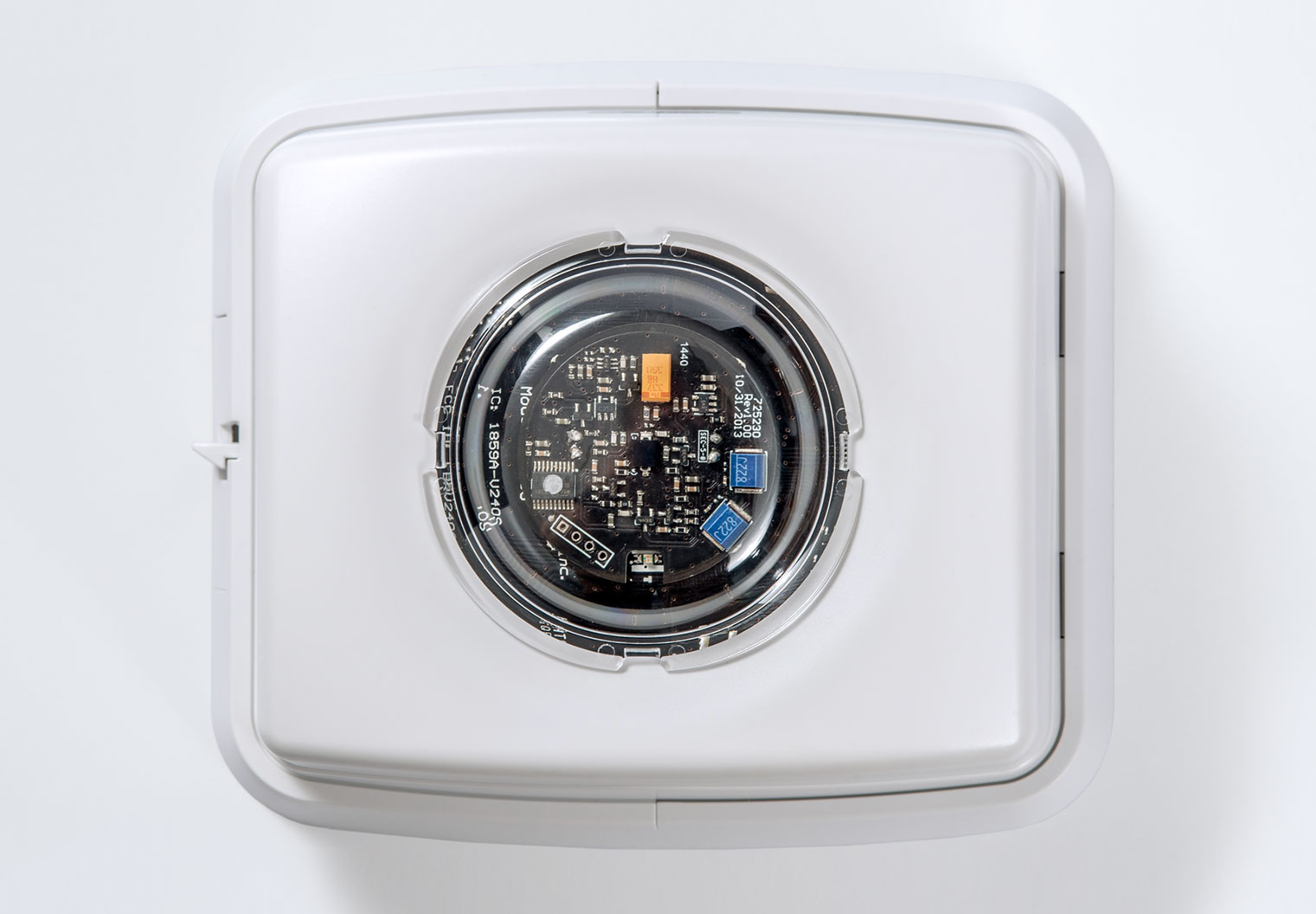

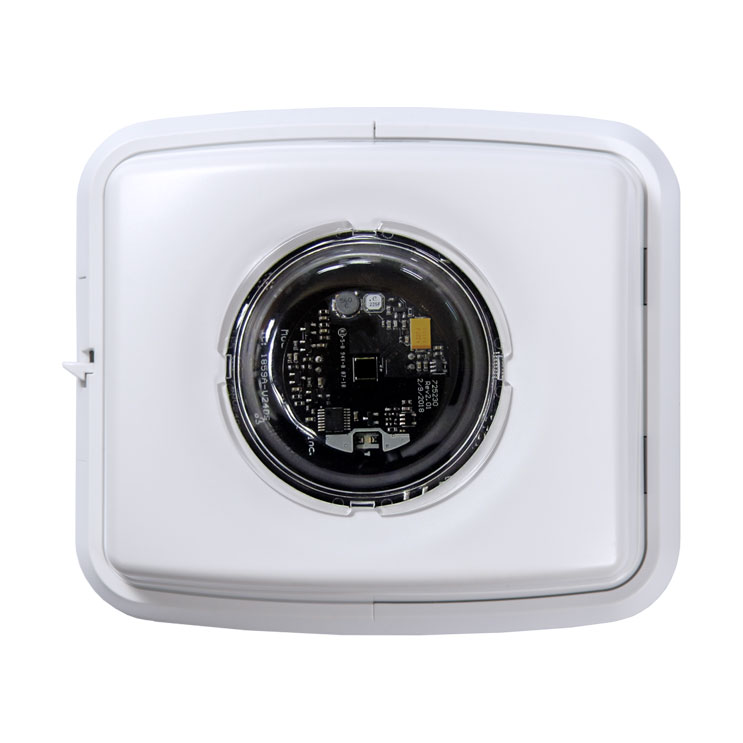

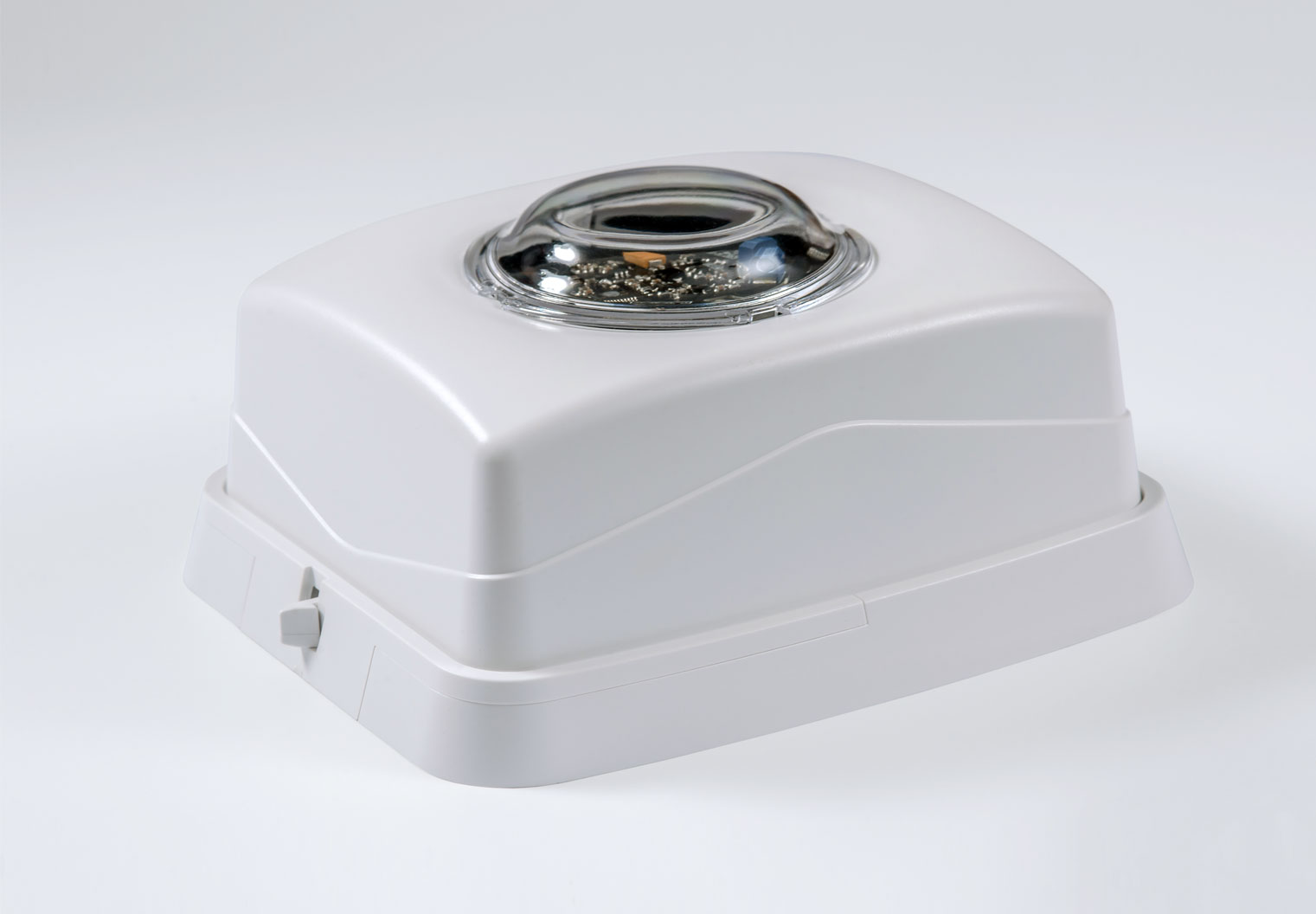

Wireless Sensors

Wireless Sensors
Our wireless sensory network transmits location data without burdening your Wi-Fi network. Battery-operated infrared sensors transmit location data via ANT wireless protocol and provide room-, bed- and chair-level accuracy in an easy-to-install wireless infrastructure.

Size:
6" x 5" x 2.625"
Weight:
22.16 oz with batteries
Battery:
3 standard D-Cell Batteries
Battery Life:
Up to 3 years
Largest Location Detection:
15-foot radius (room-level)
Smallest Location Detection:
3-foot radius (chair-level)
