Dog Daycare Room Dividers

PANELS

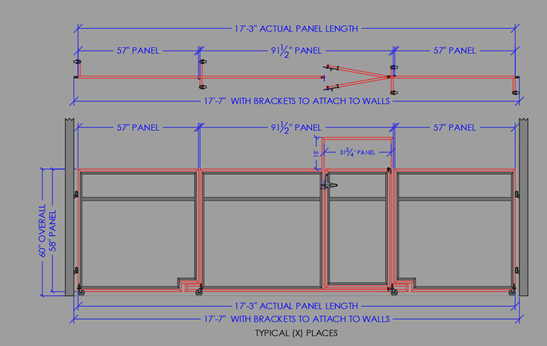

Each room divider system is configured with up to three panels connected by hinges to allow the system to be folded for storage
or expanded for various configurations.

SIZES

•  Each section is composed of three panels and one gate.

•  Panels are configured as a 4’ H (standard) with an additional configurable upper section that is 2’ H.

•  Standard gates are 6’ H.

MATERIALS

Perimeter frame, caster mounting and internal bracing:

• 1” square 18-gauge (.049” wall) square 304 A-554 welded
stainless-steel construction.

•  180-grit polished tubing.

•  TIG-welded frame corners.

•  Stainless steel fasteners and aluminum connector brackets.

•  3” swivel casters.

Solid internal panel options (as required):

•  FRP (fiberglass reinforced plastic): bonded on each side of a
.400” HDPP fluted core with aluminum edge protection.

•  Stainless steel sheet: 24-gauge 304 stainless steel sheets bonded
on each side of a .400” HDPP fluted core.

•  Wilsonart®: high-pressure laminate bonded on each side of a polypropylene fluted core with aluminum edge protection.

•  Isolation panels: perimeter-sealed to aluminum framework.

Wire grids

•  3/16” diameter, 304 stainless steel; 3/16” spacing between vertical wires; 1-5/8” spacing between horizontal wires; welded intersections.

DOORS

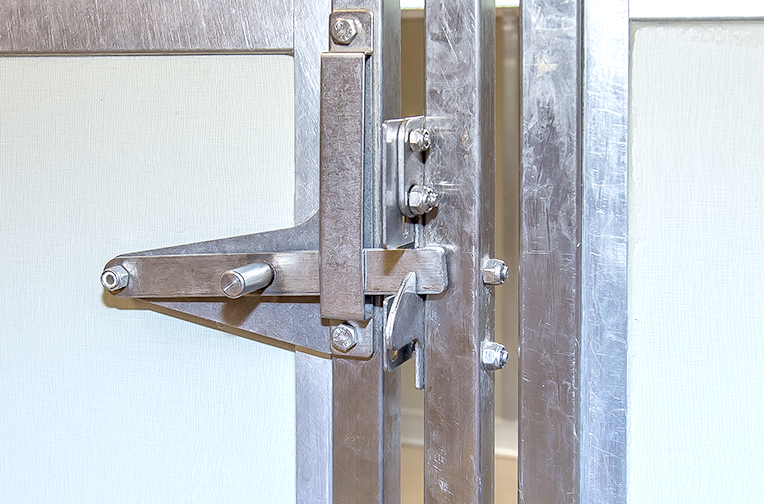

•  Stainless steel pass-through gates.

•  1” square 18-gauge 304 stainless steel tube construction.
