RTLS Sensory Network

Plug-In BLE Sensors

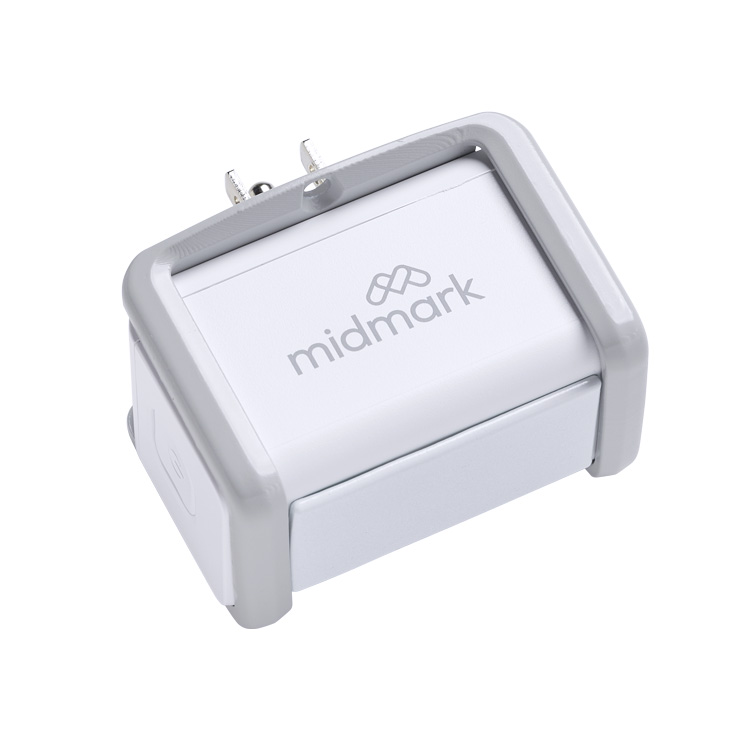

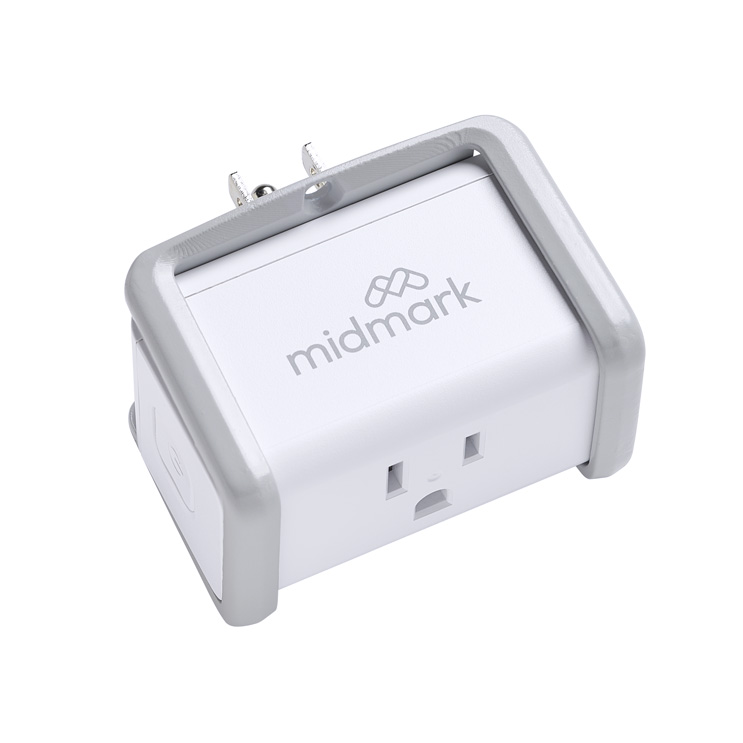

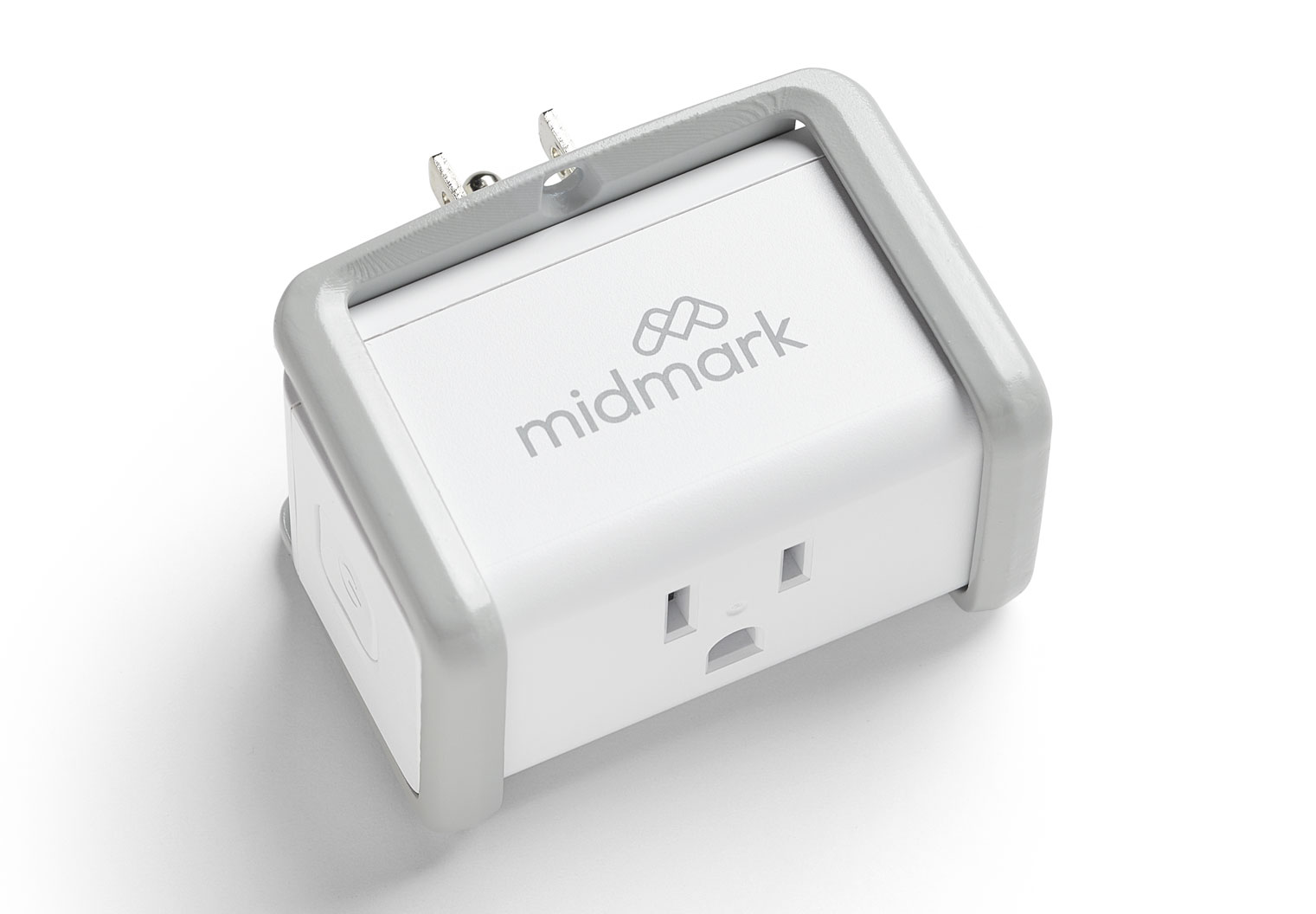

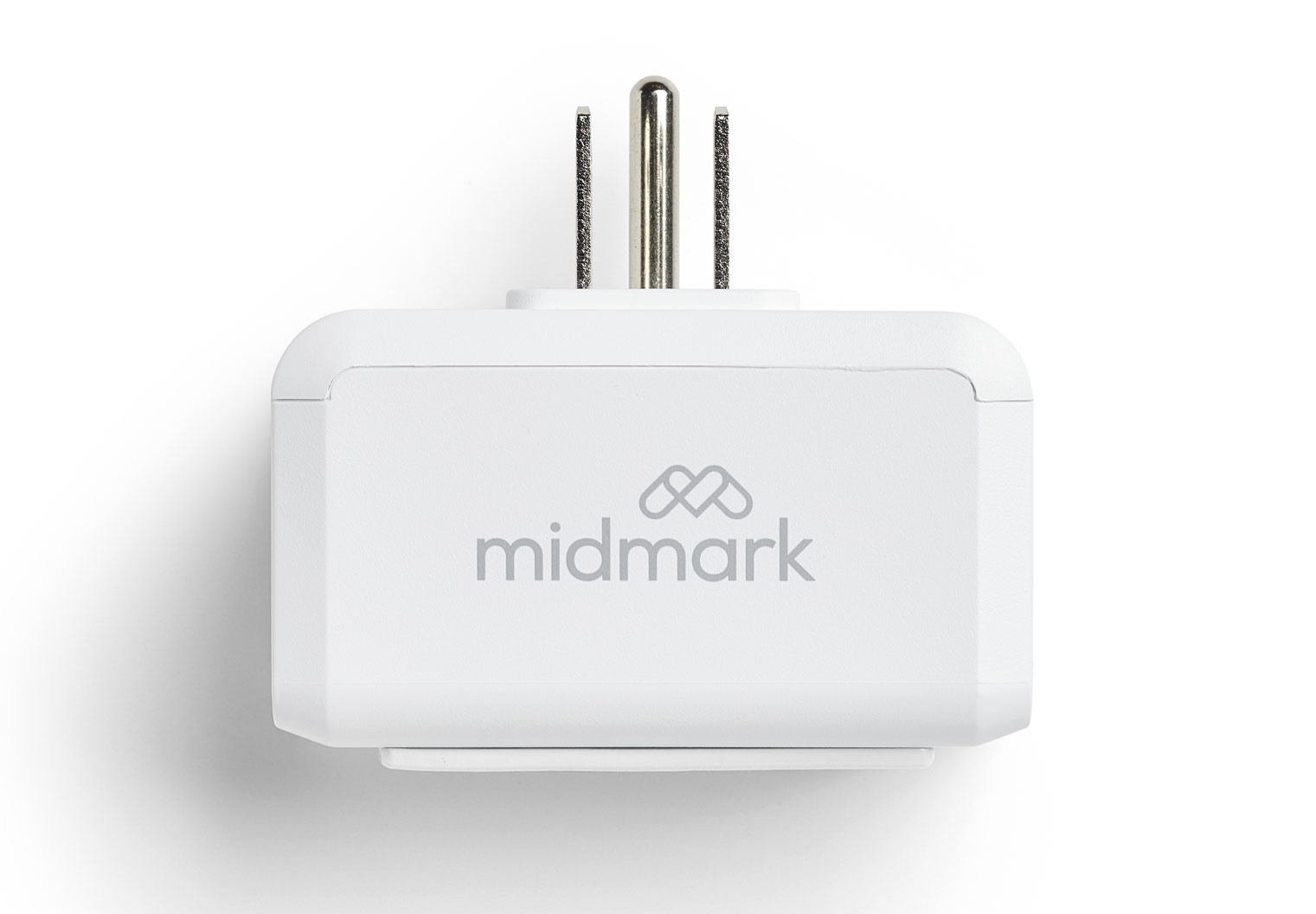

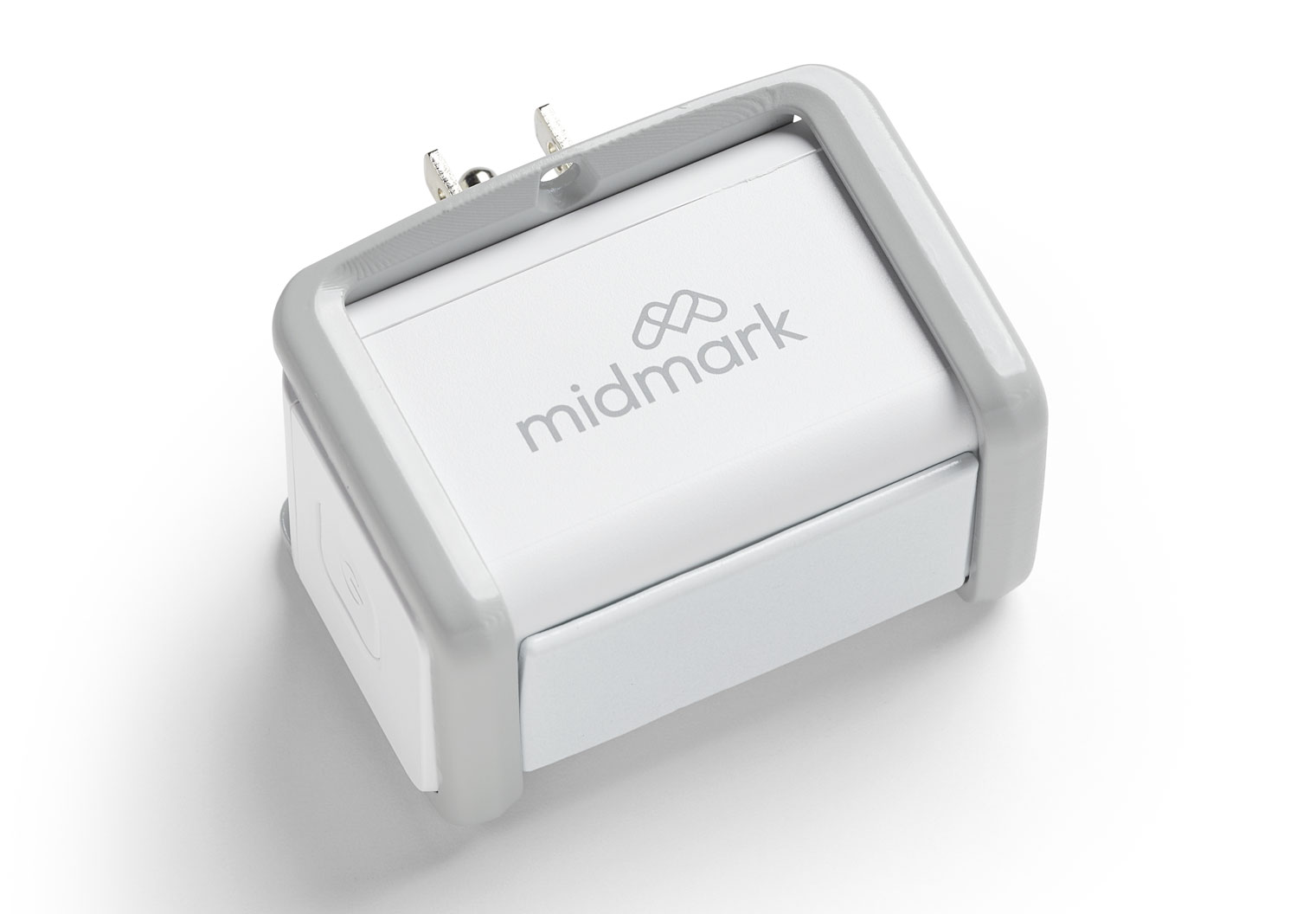

The Plug-In BLE Sensor turns a typical electrical outlet into a smart, controllable locating device that can be rapidly deployed without wiring. The sensor receives Bluetooth Low Energy (BLE) signals from Midmark RTLS BLE Asset Tags and uses Wi-Fi to transmit tag data to the Midmark RTLS Cloud Platform, which calculates the tag's location with near room-level precision (within three meters). For non-patient care areas, VER-5800 features a convenient pass-through outlet. Order the no-outlet version, VER-5800-NO where required by hospital policy for patient care areas.

Size:
1.50"H x 2.72"W x 1.65"D

Weight:
3.2 oz

Housing:
Durable white ABS case

Input Voltage:
120 VAC

Wi-Fi Specifications:
Wi-Fi protocol 802.11 b/g/n
Frequency band 2.4 GHz
Bandwidth usage 1-2 Kbps

BLE Wavelength:
2.4 GHz

Bluetooth Standard:
BLE v5.0 protocol compliant

Our 11th-generation wired infrastructure offers the lowest total cost of ownership of any RTLS on the market. Once installed, little to no maintenance is required. Wired sensors easily achieve room-, bed- and chair-level accuracy with small, discrete infrared (IR) sensors. Radio frequency (RF) sensors receive call/alert messages and act in an important supervisory role.

Infrared (IR) Sensor

Size:
2.75" x 1"

Weight:
1.2 oz

Wiring:
24 AWG twisted-pair

Idle Voltage:
17.5 VDC

Power:
255 mW

Maximum Location Detection:
15-foot radius (room-level)

Minimum Location Detection:
2-foot radius (chair-level)

Infrared (IR) Sensor Plus

Includes internal USB port to Bluetooth® Low Energy (BLE) beacons for wayfinding

Size:
2.75" x 1"

Weight:
1.2 oz

Wiring:
24 AWG twisted-pair

Idle Voltage:
17.5 VDC

Sensor Power:
255 mW

USB Power:
5 V DC, max 15 mA

Largest Location Detection:
15-foot radius (room-level)

Smallest Location Detection:
2-foot radius (chair-level)

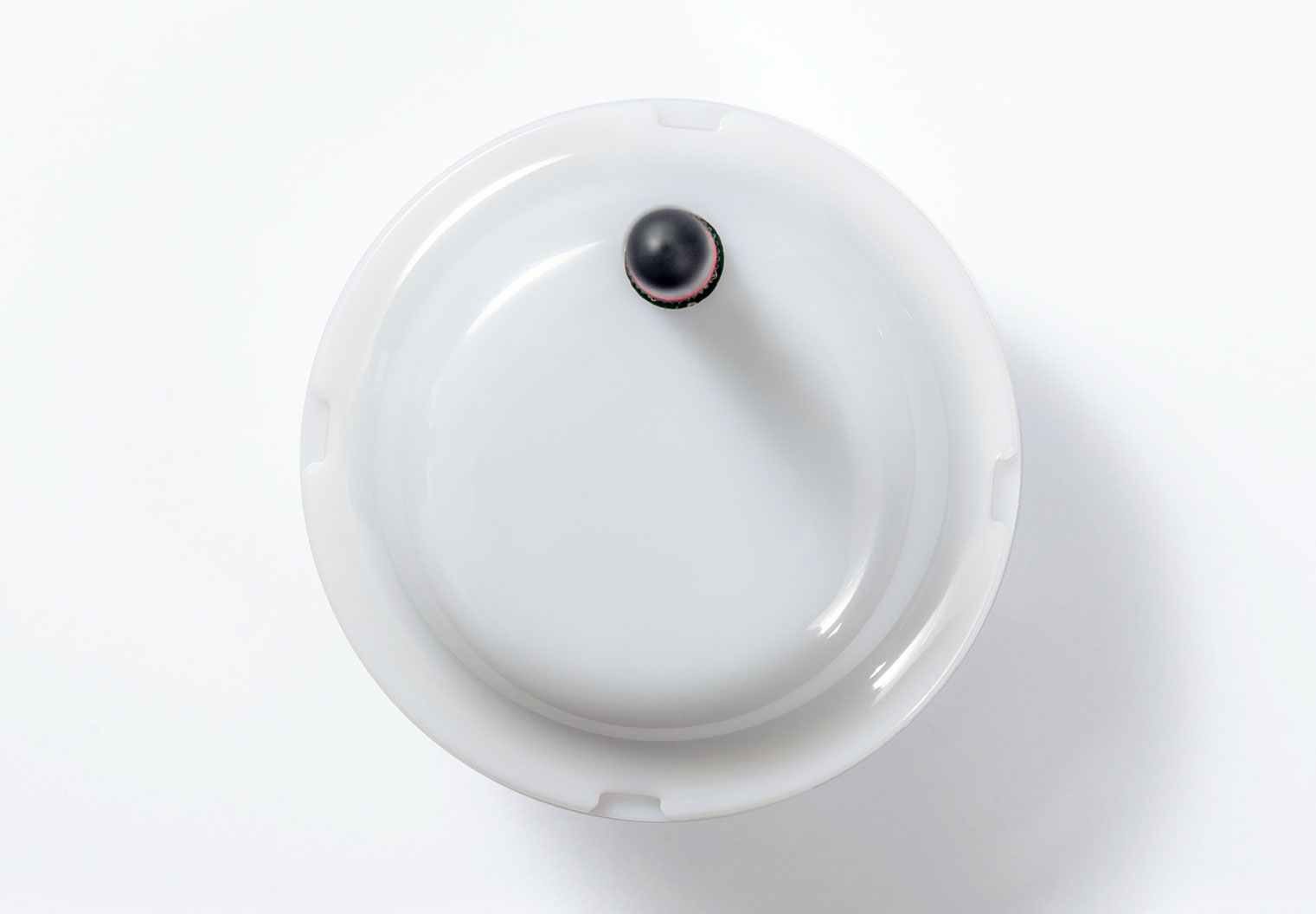

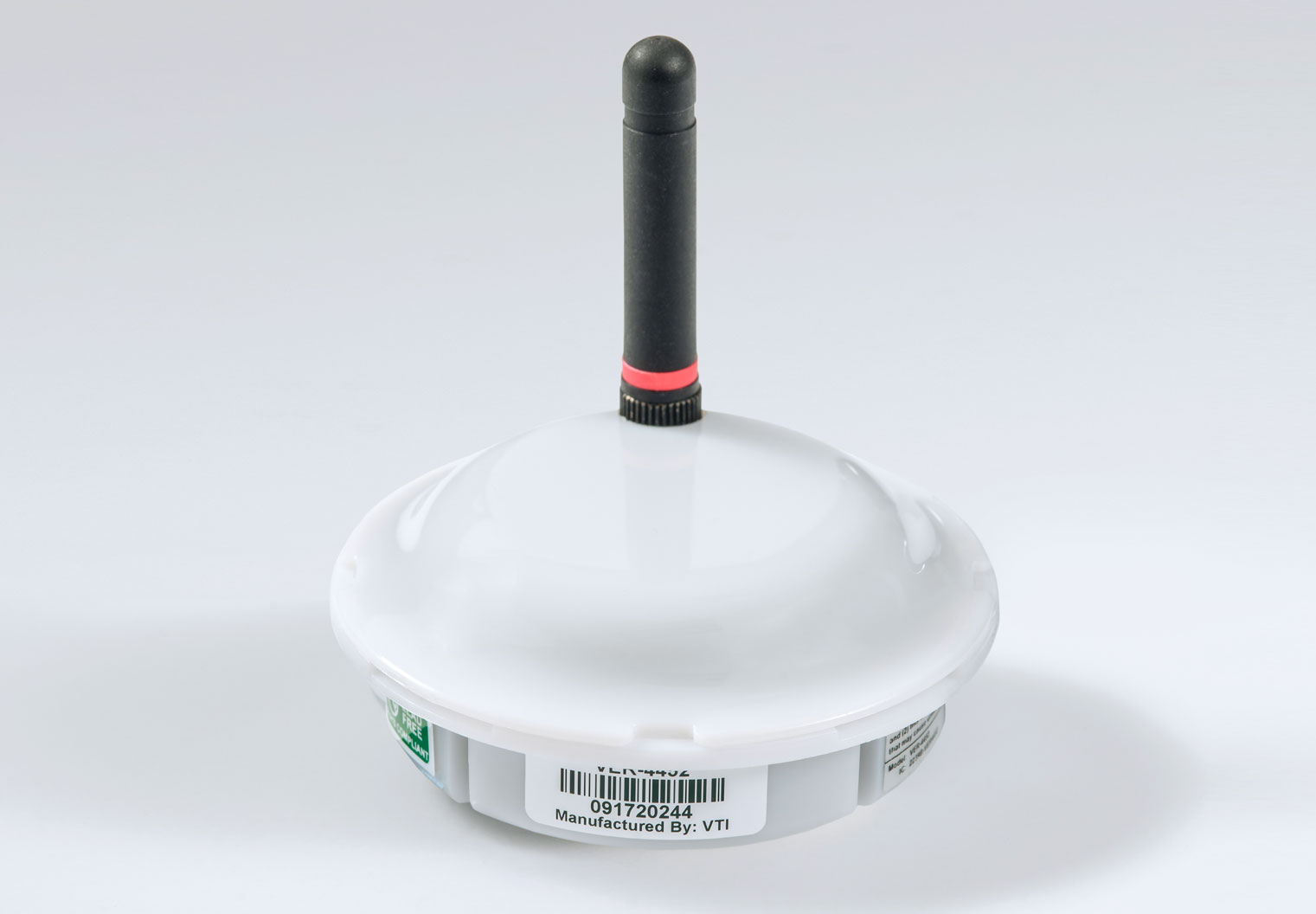

Radio Frequency (RF) Sensor

Size:
2.75" x 1"

Weight:
2.45 oz

Wiring:
24 AWG twisted-pair

Idle Voltage:
18.0 VDC

Power:
180 mW

Reception Distance:
90 feet open air

Wireless Sensors

Our wireless sensory network transmits location data without burdening your Wi-Fi network. Battery-operated infrared sensors transmit location data via ANT wireless protocol and provide room-, bed- and chair-level accuracy in an easy-to-install wireless infrastructure.

Size:
6" x 5" x 2.625"

Weight:
22.16 oz with batteries

Battery:
3 standard D-Cell Batteries

Battery Life:
Up to 3 years

Voltage:
2.5-5.5 VDC

Power:
780 μA

Largest Location Detection:
15-foot radius (room-level)

Smallest Location Detection:
3-foot radius (chair-level)

Wi-Fi RTLS

Combine our wired or wireless sensors with your Cisco Wi-Fi network for economic, scalable and effective real-time locating. Our dual-technology Wi-Fi Asset Tag emits both Cisco CCX and infrared locating signals, allowing you leverage Wi-Fi RTLS for campus-wide visibility and add infrared sensors where you need precision locating.

Requirements

• Cisco MSE (8.0+) or Cisco CMX (10.3.1+)
• Cisco environment must be calibrated for Locating Services

For full requirements, contact a Sales Rep
