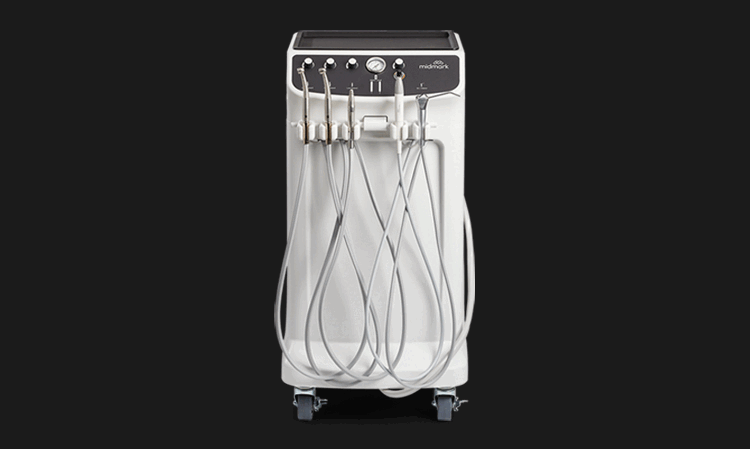

Oral health care is important for your patients—and your practice. The next generation Midmark Mobile Dental Delivery System helps improve the way you work by streamlining dental workflow with built-in tools and resources that provide everything you need to perform dental procedures.
• Compact Design
• Convenient Storage
• Large Work Surface
• Integrated Handles
• User-friendly Controls
• Cord Management
• Smooth Handpiece Tubing
• LED Water Level Indicator

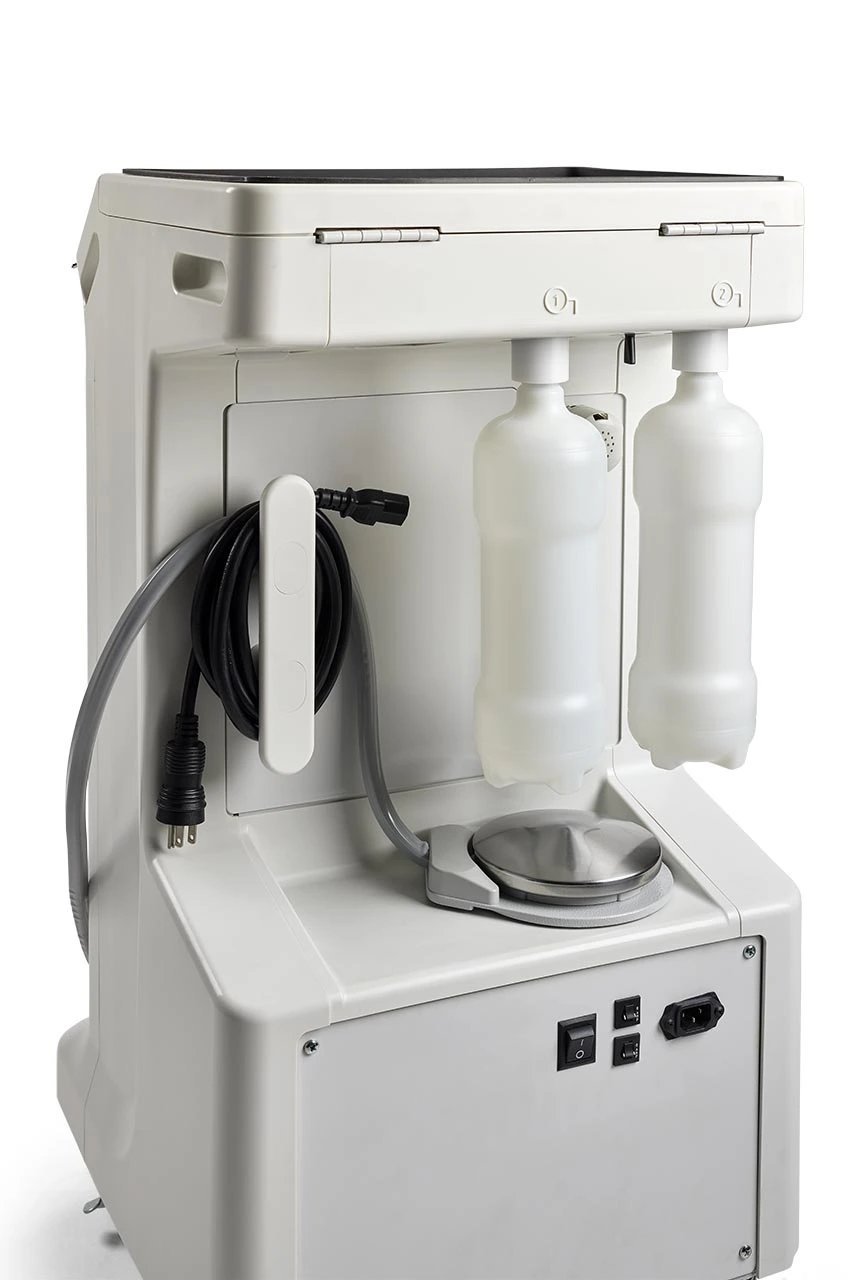

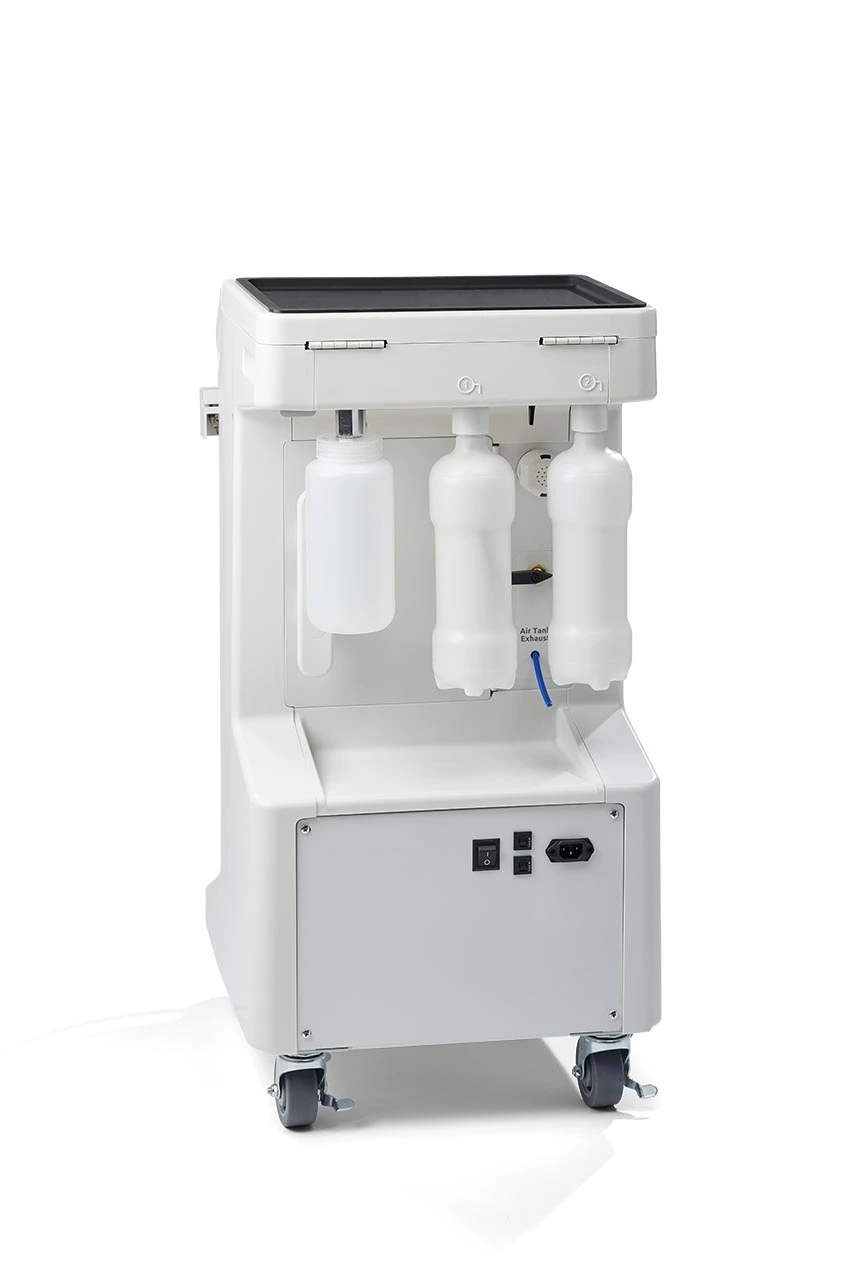

• Quick-Connect/Disconnect Water Bottle System

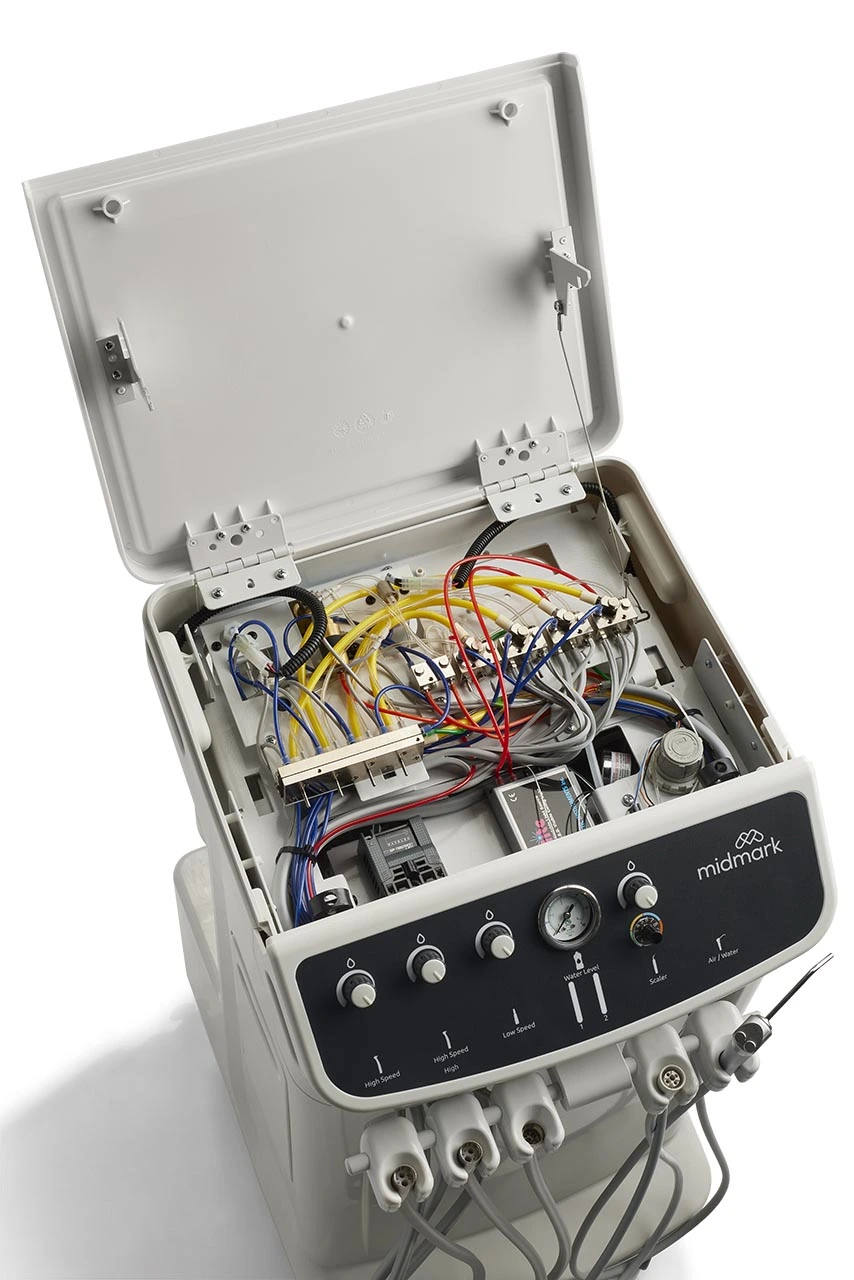

• Easy Access Points for Serviceability
• Onboard Maintenance Checklist

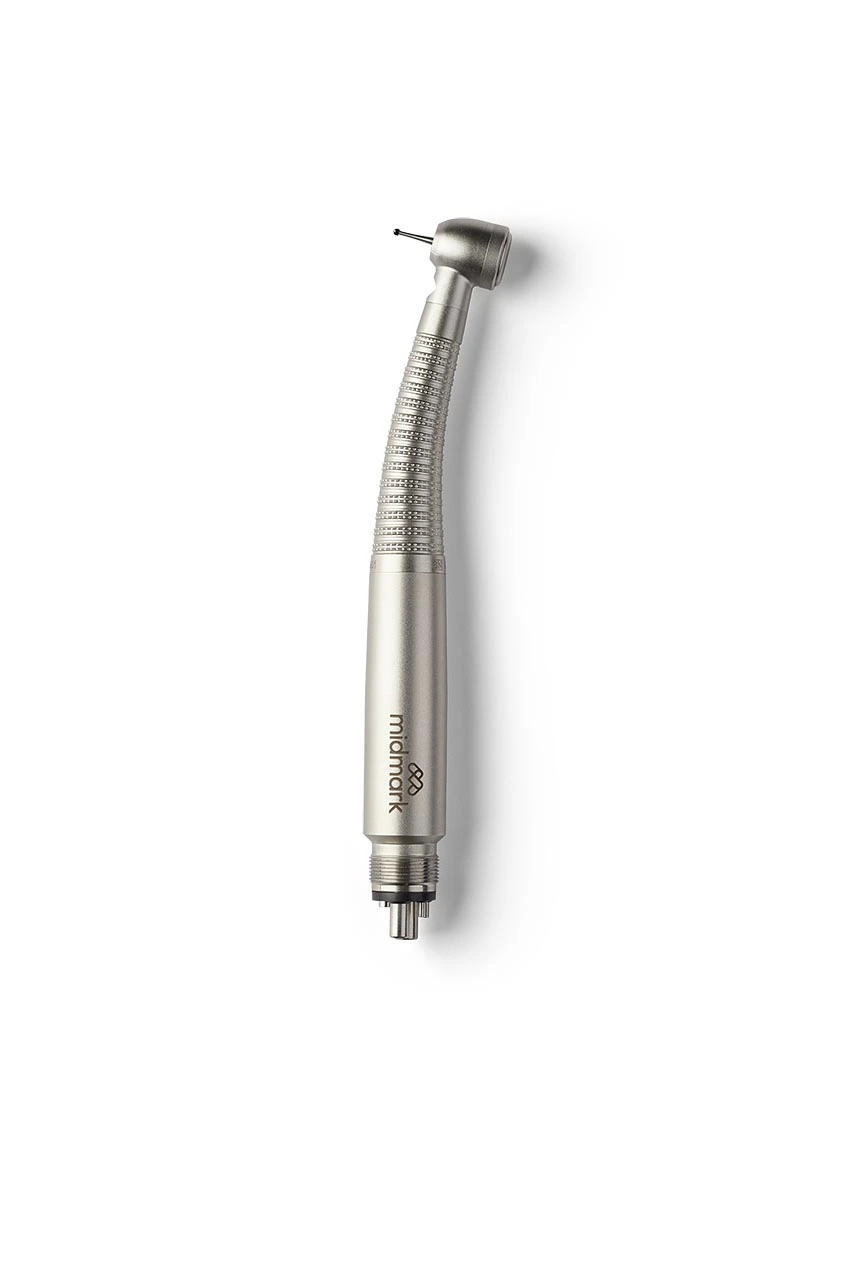

• High-Speed LED Handpiece and LED Scaler Standard
• Optional Dual High-Speed Handpieces
• Optional Integrated Suction
• Overall Dimensions: 18.6” D x 17.4” W x 33.8” H
Weight & Dimensions
Overall depth: 18.6" (47.24 cm)
Overall width: 17.4" (44.20 cm)
Overall height: 33.8" (85.85 cm)
Weight: 130 lbs
Compressor
Oil-free 1/2 hp motor
Working pressure: 70-100 p.s.i.
Flow rate: 2.2 CFM at 70 p.s.i.
Air reservoir: 1 gallon
Manual air tank purge
Water Module
2 - 1 liter reservoirs (Toggled)
Pressurized system: 30-40 psi
Manual handpiece flush system
External quick connects for water and air
Electrical Ratings
Voltage:
• 115 VAC, (models: -001, -002, -003, -005)
• 230 VAC (model: -004)
Frequency: 50/60 Hz
Circuit breaker protection:
• 6A, (models: -001, -002, -003, -005)
• 3A (model: -004)
Powercord length: 10'
Model Numbers
AH9000-001 Midmark Mobile Dental Delivery System, 4-Position Integrated LED High-Speed Handpiece and Scaler
AH9000-002 Midmark Mobile Dental Delivery System, Swivel, 4 Position Integrated LED High-Speed Handpiece and Scaler
AH9000-003 Midmark Mobile Dental Delivery System, Swivel, 5 Position with 2 Integrated LED High-Speed Handpieces and a Scaler
AH9000-004 Midmark Mobile Dental Delivery System, Integrated 4-Position Export
AH9000-005 Midmark Mobile Dental Delivery System, 4-Position Integrated LED High-Speed Handpiece and Scaler, CANADA
Midmark Mobile Dental Delivery System Introduction
Midmark Mobile Dental Delivery System Unboxing and Setup Video
