Midmark DC Digital Dental Radiography System
Designed for reliable performance and precise imaging, the Midmark DC Digital Dental Radiography System helps support consistent diagnostic results while streamlining workflow in veterinary dental procedures. With a range of mounting options and thoughtfully designed controls, it is built to adapt to your practice.
Designed with a proprietary dual-arm braking system that keeps the head securely in place where you position it—without sagging or drifting.

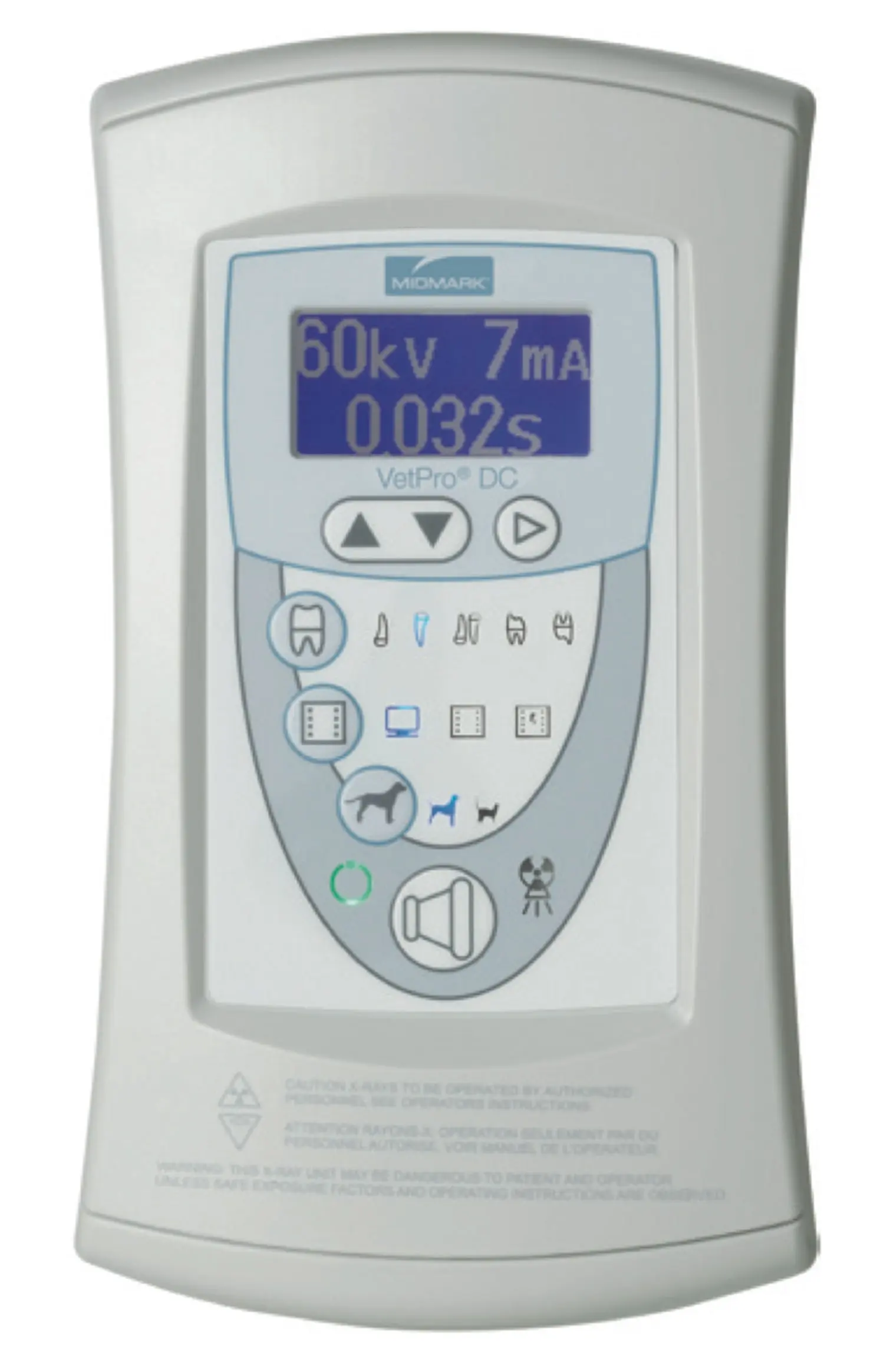

Intuitive control panel with large display and icons for fast setting selection.
Customizable exposure settings (kVp, mA and time) plus 30 pre-programmed techniques for streamlined workflows.
Made in the USA.
-
Options
Wall-Mount Arm Lengths
56", 66", 76" or 82"
(total reach)Double-stud mounting plate

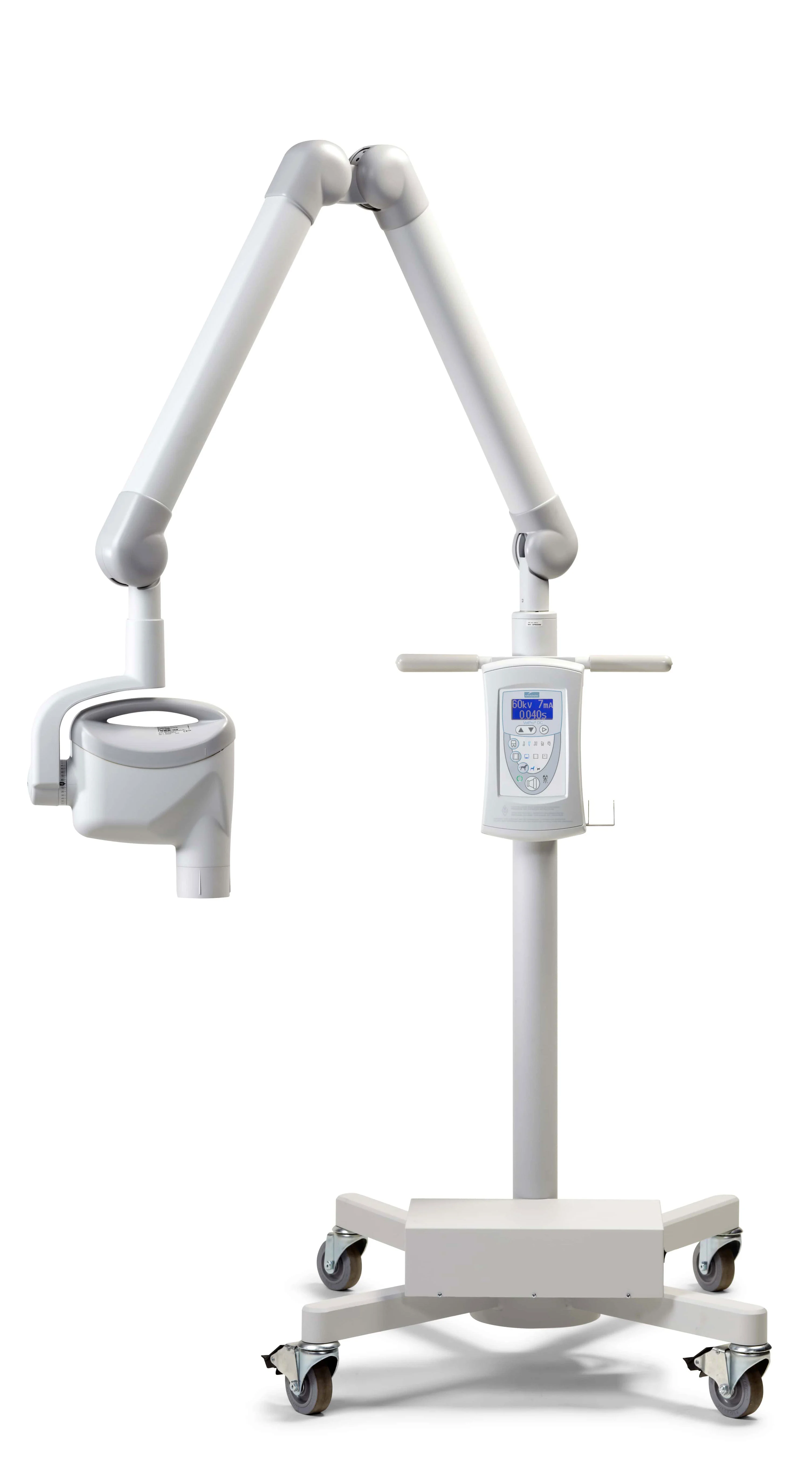

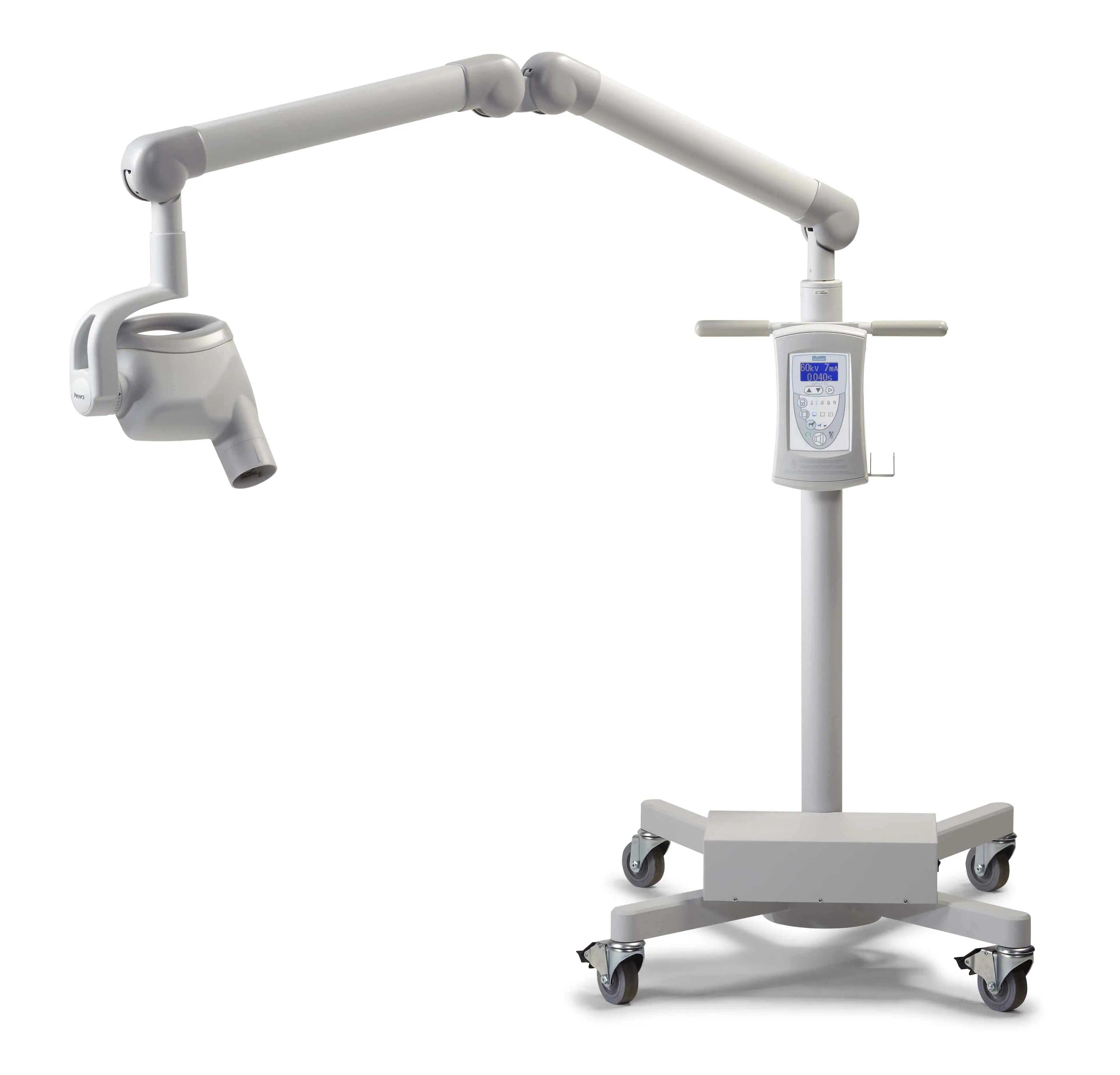

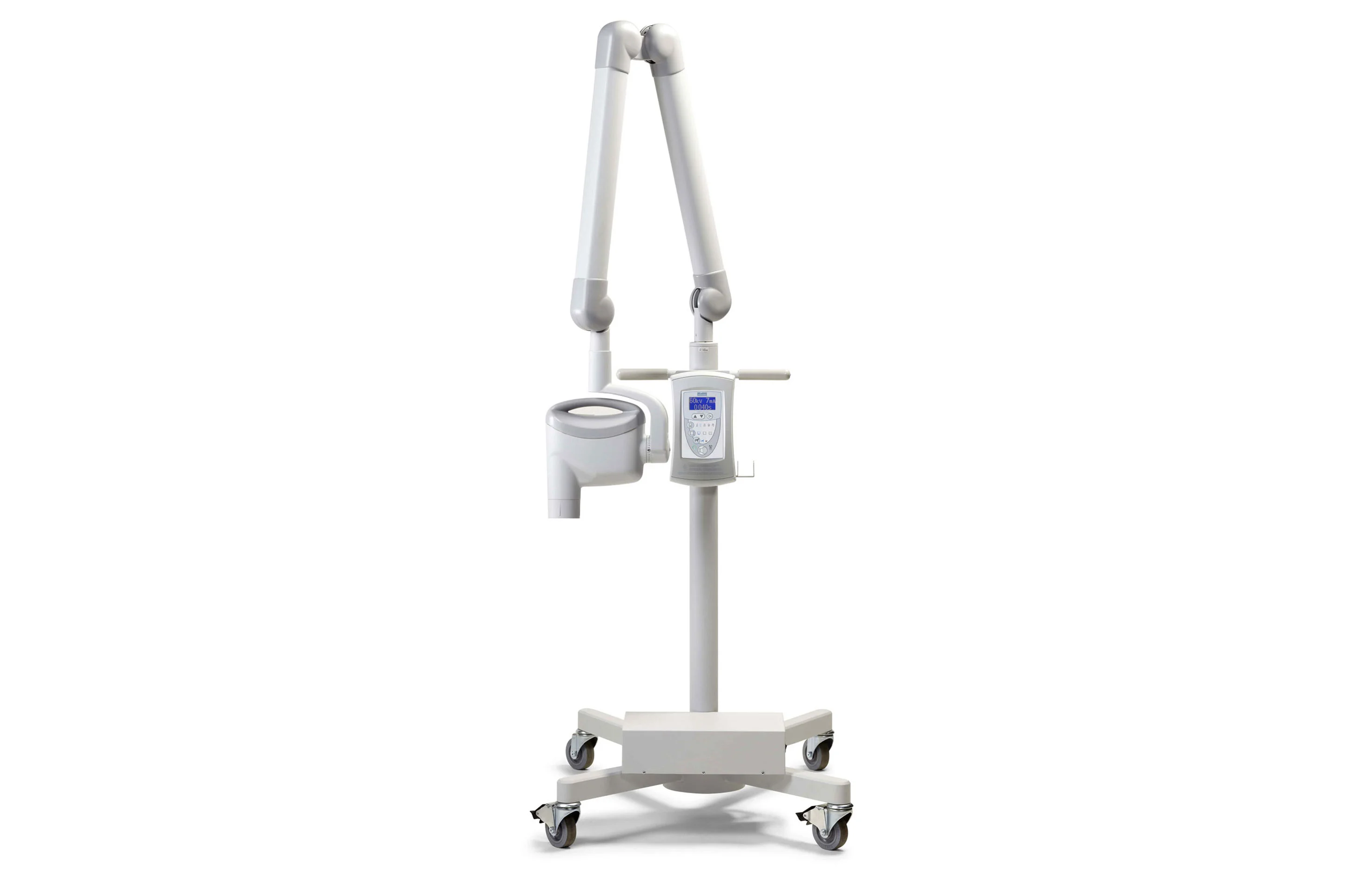

Mobile Configuration
Includes base and four (4)
caster wheels with locking mechanismModels

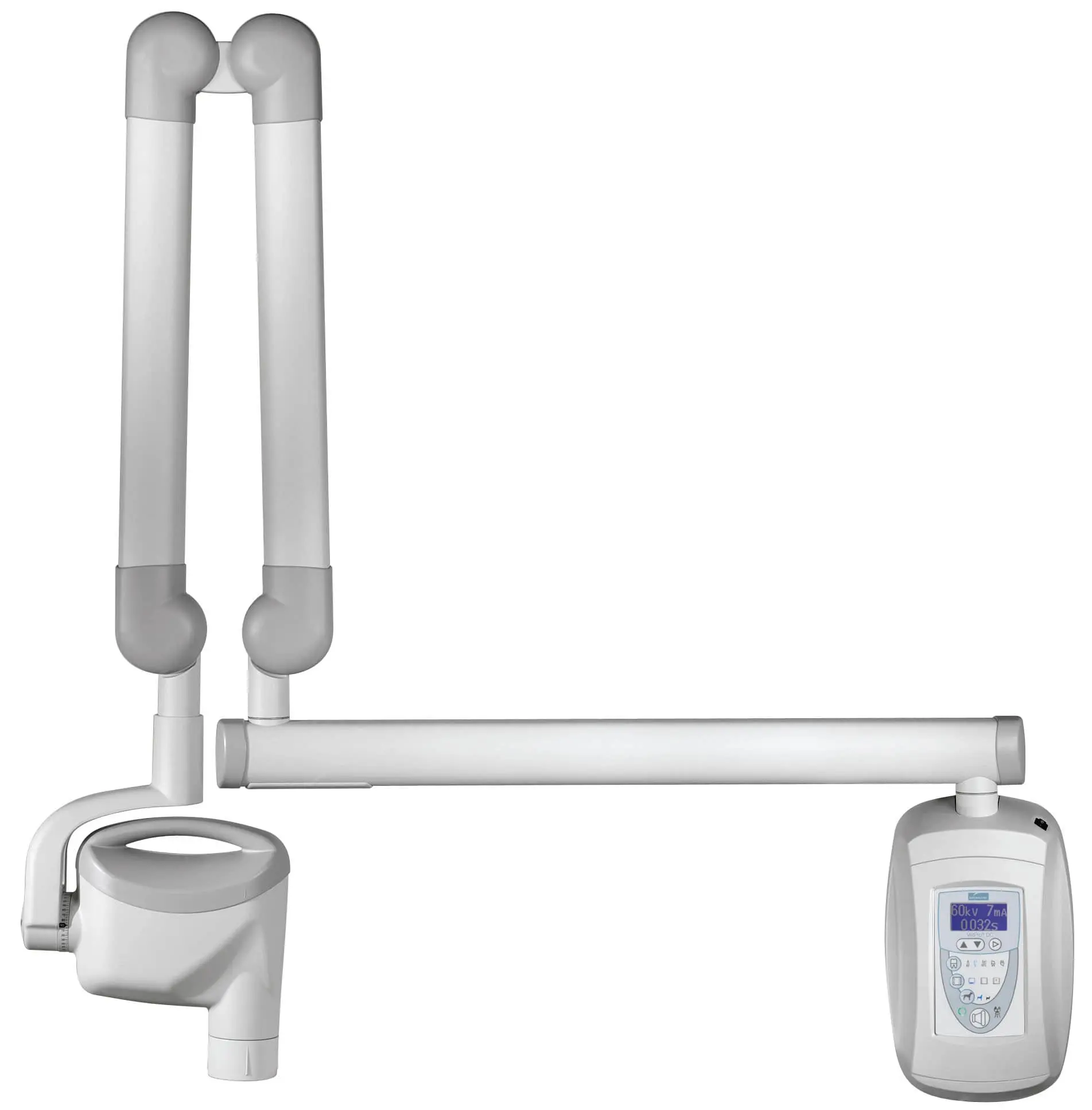

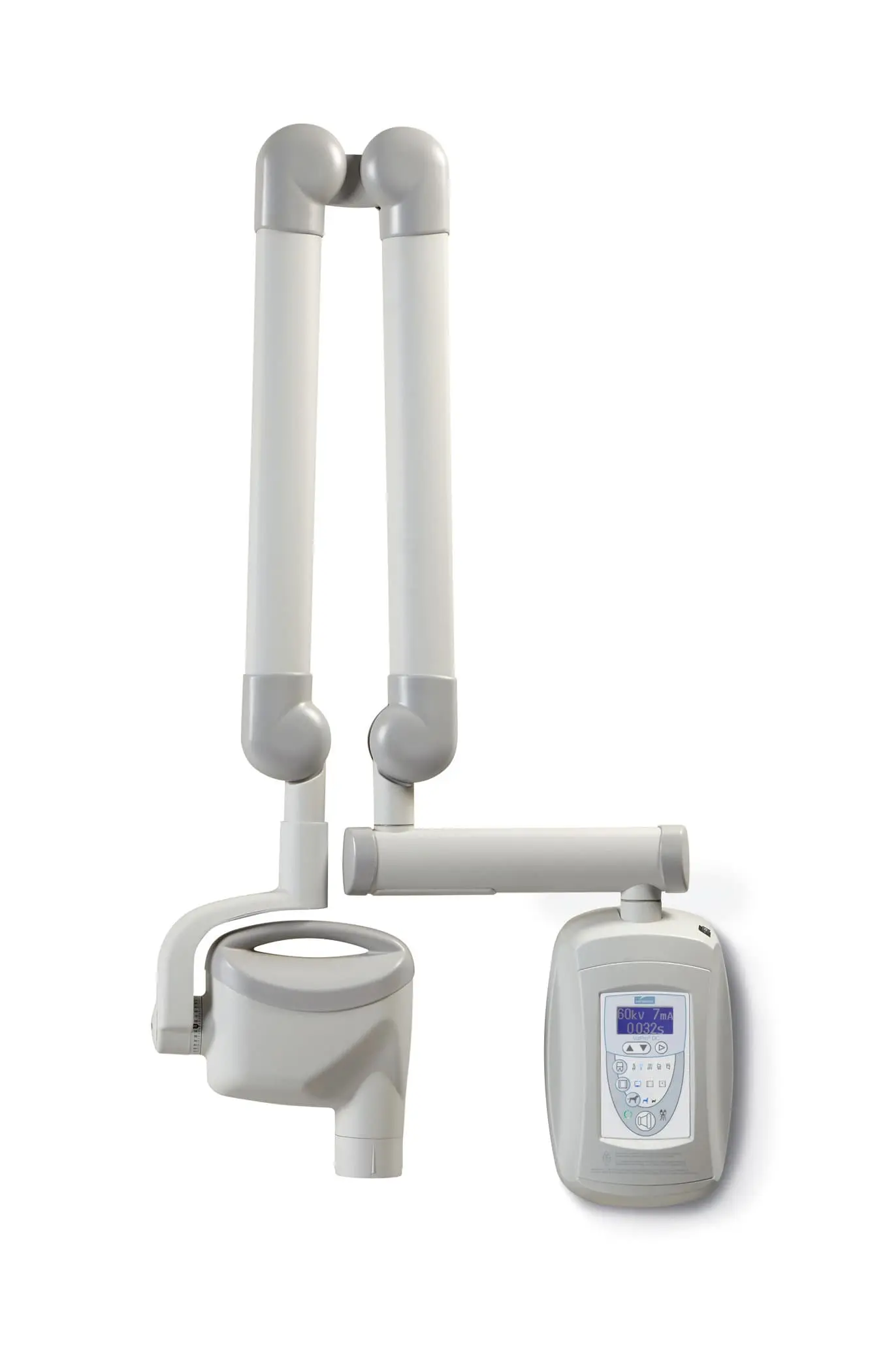

DCV5-G2X/H Wall-Mounted, 56”
Integrated ArmDCV6-G2X/H Wall-Mounted, 66”
Integrated ArmDCV7-G2X/H Wall-Mounted, 76”
Integrated ArmDCV8-G2X/H Wall-Mounted, 82”
Integrated ArmDCVM-G0X/H Mobile,
Integrated Arm -
Technical Specifications
Line Voltage
120-230 VAC +/- 10% 50-60 HzTube Potential
60, 65 or 70 kVTube Current
4, 5, 6 or 7 mAExposure Time
20 ms to 2 secondsCone Length
20 cm (8 inches)Focal Spot
0.4 mm (IEC 336)Applicable Documents Federal Regulations:
21 CFR, UL, CEDimensions
Mobile:
Base: 26.9 in W x 36 in L
(68.3 cm x 91.4 cm)
Arm reach: 56 in (142 cm)
Height: 76.9 in (195.3 cm)Remote Exposure Hand Switch Included
Warranty
2 years, limited
Optional extended warranty available -
