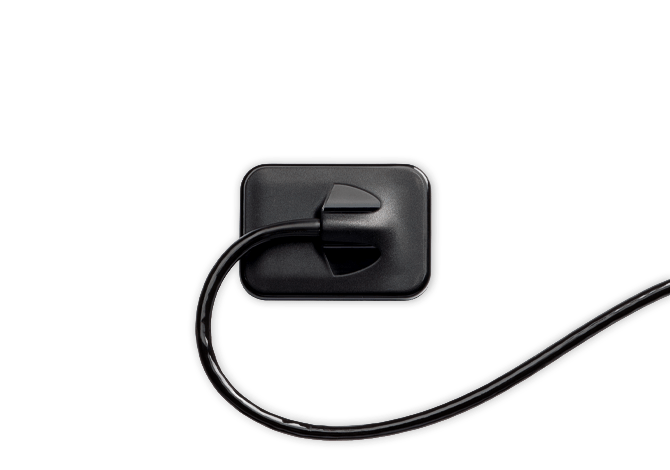

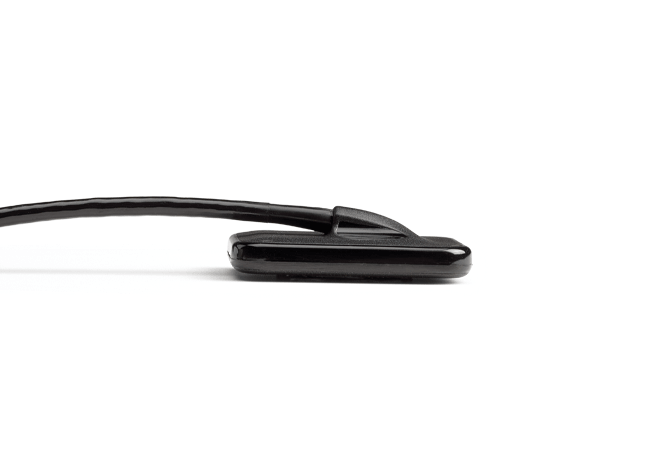

Midmark DR Sensor
Recommended for exotics, feline patients and toy breed dogs
The Midmark DR Sensor provides clear, detailed radiographs with exceptional image quality, even at low-dose radiation. Suitable for exotic, feline and toy breed patients, its compact sensor design supports image acquisition in patients with smaller mouths while helping veterinary teams maintain an efficient digital imaging workflow.
Offers superior image resolution with more pixels per area
Provides high-quality images, even at low-dose radiation

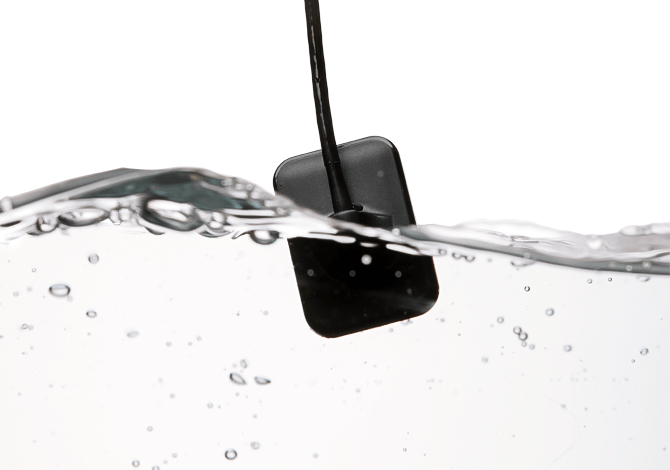

Uses a Kevlar® reinforced cable for reliability and a water-tight connection
The Midmark DR Sensor includes embedded calibration files to simplify integration and workflow. Sensor purchases include imaging software, clinical and technical support and the Midmark five-year limited warranty with discounted first replacement.
-
Technical Specifications
MODELS
XSVS-06 (includes 3-meter cable for connection through a laptop/computer) XSVS-06/L (includes laptop and 3-meter cable) XSVN-06 (1.1-meter cable for connection through the Midmark DC Generator) SIZE
Size 2 DIMENSIONS
Width Depth Height External Dimensions 32mm 43mm 55mm Active Area 36 mm x 26 mm SPECIFICATIONS
Number of Pixels 2,574 lines x 1,852 pixels Pixel Size 14 µm x 14 µm Theoretical Resolution 35.7 lp/mm Levels of Grey 4,096 Signal-to-Noise Ratio 89 dB Connection Type USB 2.0, High Speed Sensor Cable Length(s) Integrated: 1.1 m, Standalone: 3 m Calibration Files Embedded Cable Kevlar reinforced Connection Water-tight SOFTWARE + SUPPORT
Includes Midmark Dental Imaging Software Includes clinical and technical support Practice management integration capabilities available through imaging software WARRANTY
Midmark DR Sensor―Manufacturer defect as determined by Midmark for a period of five (5) years. If the sensor ceases to function due to a catastrophic event, it will be replaced at a discount the first time. -
