ENHANCED BP FEATURES

Cardell® BP Technology includes veterinary-specific algorithms that are validated as accurate for anesthetized cats and dogs in peer-reviewed studies. An added screening mode provides more precise readings for awake patients.

Jump to Product Details

Alarm Center + Troubleshooting Guide

Quickly manage technical and physiological alarms with the built-in alarm center. Reference the built-in troubleshooting guide for technical alarms.

ECG + CO<sub>2</sub> Catalogs

Changes in waveforms can be the earliest signals of complications. Use the integrated waveform catalogs to quickly match abnormal waveforms to patterns of common anesthetic occurrences.

Best-Practice Reminders

Improve team compliance and help promote safer, more efficient procedures with the built-in pre-procedure checklist, CO₂ soda lime absorbent reminder and NIBP best practices reminder.

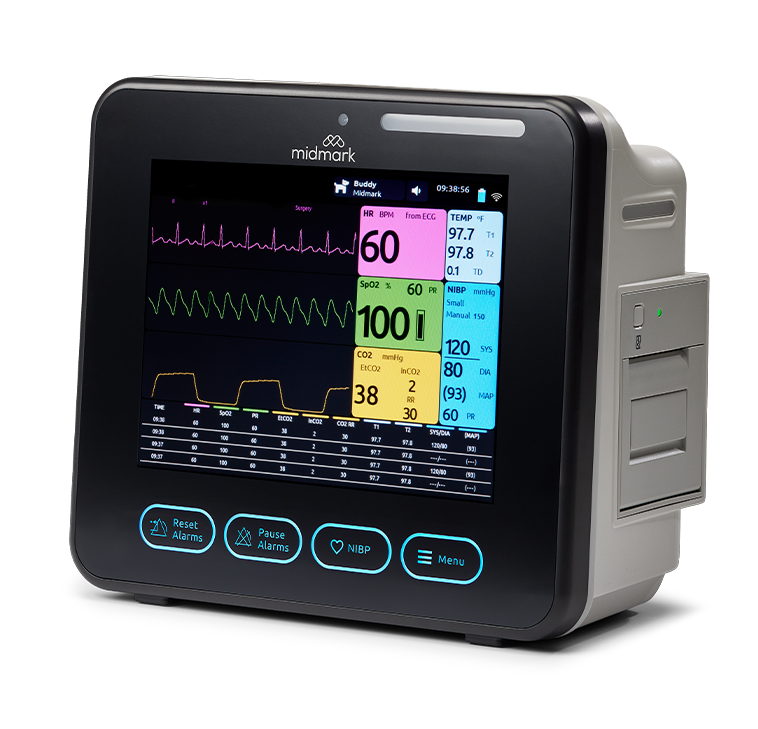

Midmark Multiparameter Monitor 8"

Your Guide to Better Care

CUSTOMIZED USER DISPLAY

Save up to 7 monitor configurations including preferred alarm and display settings, customized for different users or departments.

midmark-multiparameter-monitor-8-inch-product-thumbnail

Download Image

Midmark Multiparameter Monitor 8"

Leveraging decades of clinical experience responding to common anesthetic issues, the new Multiparameter Monitors are designed to help guide veterinary care teams through anesthetic procedures more efficiently with integrated safety features and user-friendly capabilities.

Get the most out of your monitor with Midmark Anesthetic Record Interface.

Also available in 12 inch.

Contact Sales

Specifications

Specifications
Dimensions/Weight
6.0 lb (8020-001)
4.88" x 9.06" x 8.27"
Electrical
Voltage: AC 100 - 240 V
Parameters
NIBP: Cardell® BP Technology
Pulse Oximetry (SpO₂): Nellcor®
CO₂ Monitoring:
Respironics^® CAPNOSTAT® 5 Mainstream
Respironics® LoFlo™ Sidestream
Masimo® Mainstream
Masimo® Sidestream
ECG: 3-Lead Standard, 5-Lead Optional
HR/PR: ECG HR/SpO₂ and NIBP PR
Temperature: 2-Channel
Respiration Method:
Indirect: Impedance
Direct: Capnography (optional)
Display: 8" LCD Resistive Touch Screen
Printer: Integrated (optional)
Waveform Display:
3-4 Channel Standard Display
ECG Vector Waveform Display:
7-Channel with 5-Lead Option
1-Channel with 3-Lead Option
ECG Gain: Auto, x0.25, x0.5, x1, x2, x4
HR/PR Range:
ECG HR = 15-350 bpm
SpO₂ PR = 20-300 bpm
NIBP Modes: Manual, Auto, Continuous, Screen
Graphical Trends: 168 hours
Tabular Trends: 168 hours
Parameter Alarms: User-Defined High/Low with 4 Defaults (cat, dog, horse, other)
Download to PC: USB Drive
Battery Life: Up to 4 hours
Capnostat, Cardell, LoFlo, Masimo, Nellcor, and Respironics are all trademarks or registered trademarks of their respective companies.
Options

Model Numbers

8020-001 8" Multiparameter with Printer
8020-002 8" Multiparameter without Printer
Parts + Services Store
Add-On Accessories
C-STAT5 CAPNOSTAT^® 5 Mainstream CO₂ Probe
LOFLO LoFlo^™ Sidestream CO₂ Module
002-1895-00 Kit, Masimo CO₂ Mainstream Sensor and Adapters
002-1896-00 Kit, Masimo CO₂ Sidestream Sensor and Adapters
002-1745-00 Kit, Masimo^® Multigas Mainstream Sensor and Adapters
002-1746-00 Kit, Masimo^® Multigas Sidestream Sensor and Adapter
Resources

Brochures
Anesthesia + Monitoring Solutions Brochure Midmark Multiparameter Monitor Spec Sheet Midmark Anesthetic Record Interface Midmark Academy^SM Anesthesia Monitoring Training and Education Network
Contact
Contact Sales Contact Tech Support Visit The Midmark Shop for Accessories, Parts + Services
Support
Request Printed Spec Sheet Review Technical Documentation
Additional Info

Monitor Warranty
2-Year Limited Warranty

Included Accessories
(Warranties Vary)
ECG
016-10178-00 3-Lead ECG Cable/Lead/Clip Set
PL-200 Redux Gel for ECG Use

NIBP
NIBP-TUBE NIBP Inflation Tube
061-1016-00 Blood Pressure Cuff Selector
SV1 Small Animal BP Cuff #1 (QTY: 1)
SV2 Small Animal BP Cuff #2 (QTY: 2)
SV3 Small Animal BP Cuff #3 (QTY: 3)
SV4 Small Animal BP Cuff #4 (QTY: 3)
SV5 Small Animal BP Cuff #5 (QTY: 2)
SV8 Large Animal BP Cuff #8 (QTY: 1)
SV10 Large Animal BP Cuff #10 (QTY: 1)
SpO₂
01-02-0183 Nellcor DOC-10 SpO₂ Cable
V-SAT Nellcor VETSAT SpO₂Sensor w/Lingual Clips
Temperature
016-10164-00 Temperature Probe
Midmark Visualizer
015-3322-02 USB, Visualizer
Other
PAPER-4F Printer Paper, 4 rolls (printer models)
015-3091-00 Monitor Ground Wire
015-1338-06 Power Cord
