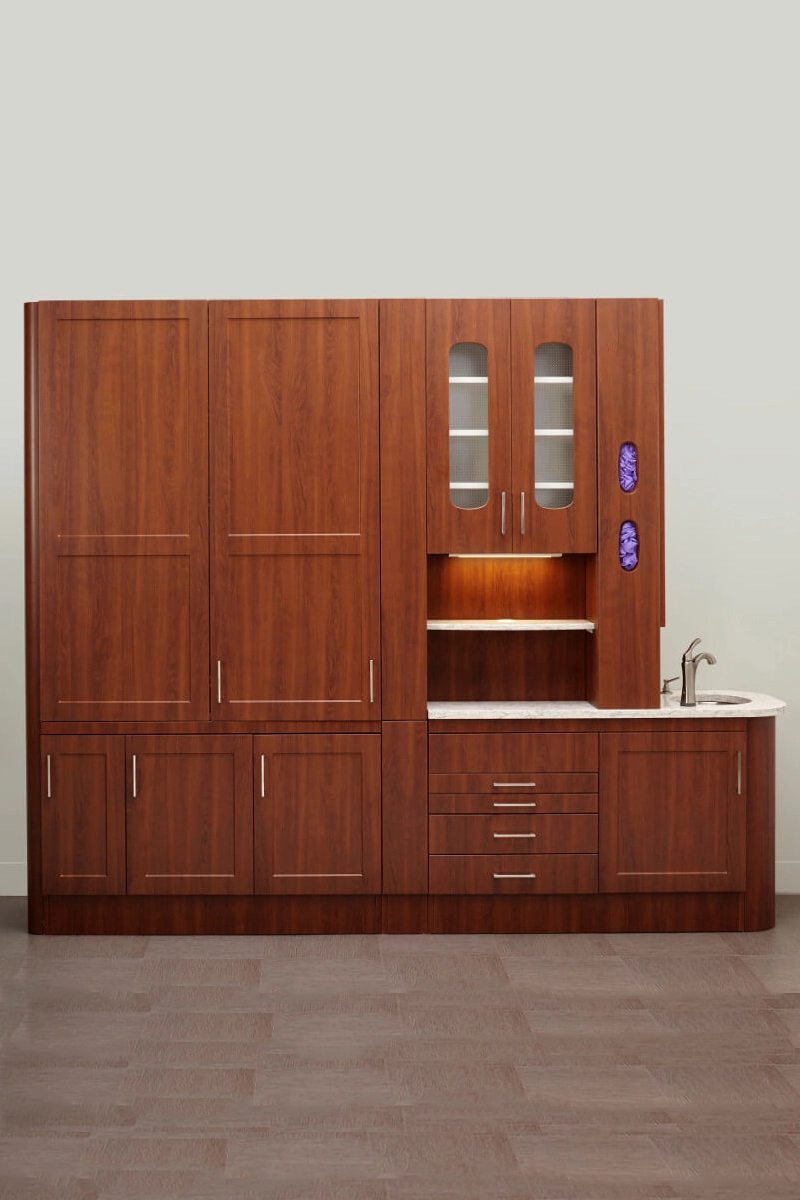

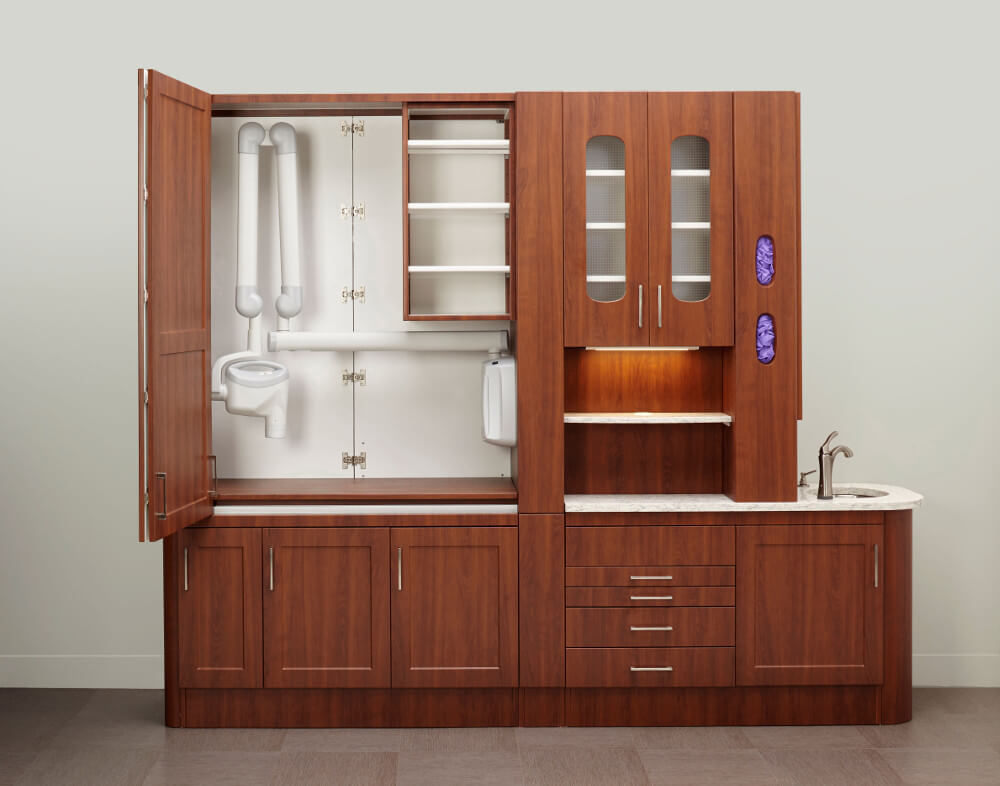

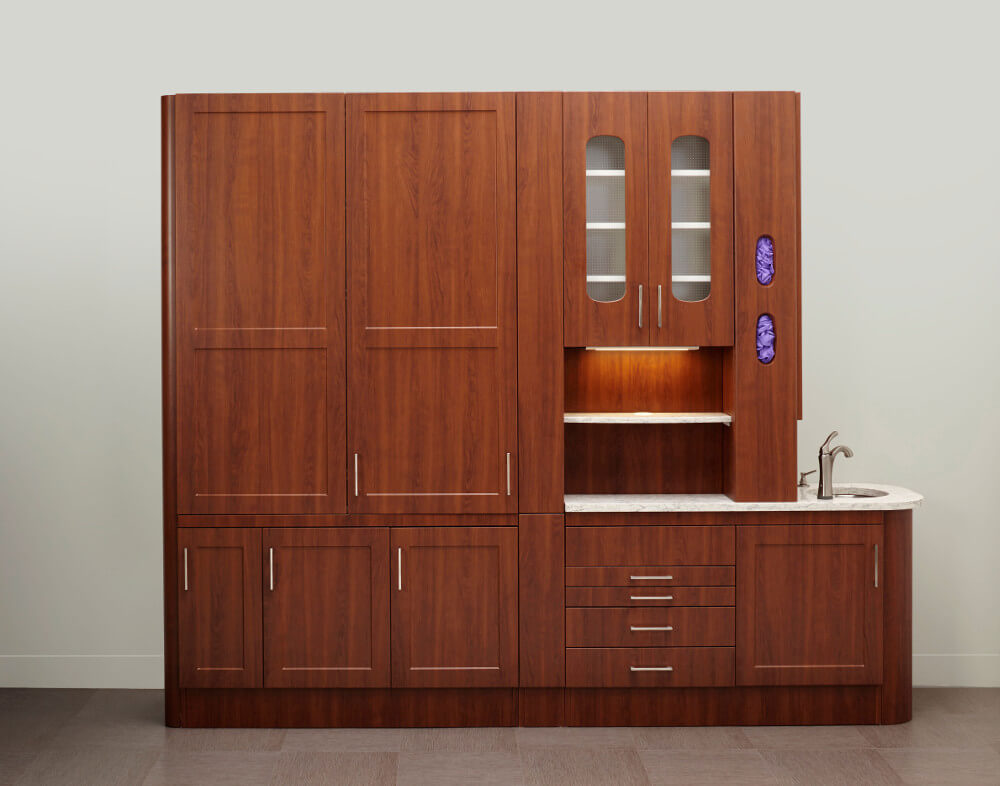

Synthesis® Central Stations

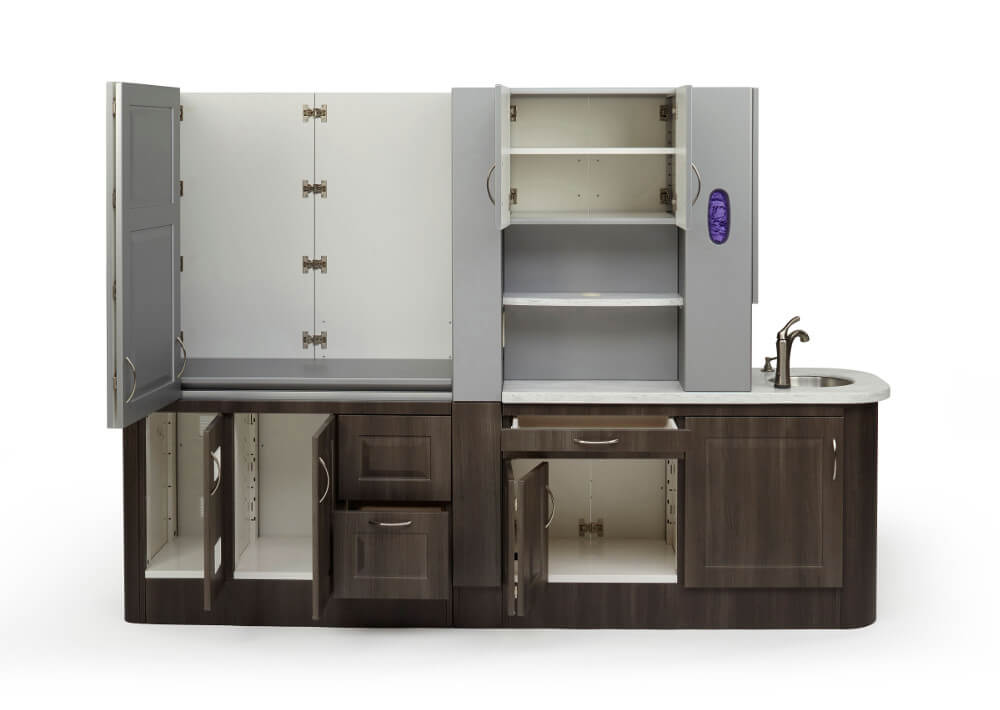

Synthesis Central Stations are the ideal solution for multi-room plans. Saving valuable floor space, central stations offer storage on both sides for the dentist and assistant. With a width of 18 inches, the Synthesis Central Station requires approximately 55% less floor space than a traditional wall and side cabinet installation. More usable floor space provides greater flexibility for your space utilization.
Standard Features
- Available in 72", 90" and 95" heights (95" is the 90" with a 5" top extension)
- Nine standard models available in three heights and three lengths
- 18-gauge steel frame
- Full-extension ball-bearing glides
- Concealed steel hinges
- Multiple handle and panel styles
- Seamless panels and polystyrene drawers
-
Resources
Brochures
Operatory Cabinetry Brochure Safety now More than Ever eBook Synthesis Specification Sheet Synthesis Color Selections Midmark Cabinetry vs. Local Millwork LEED Commercial Interiors v3 Credit Summary Details LEED Existing Building v3 Credit Summary Details LEED New Construction v3 Credit Summary Details LEED v3 Credit Summary -
Technical Specfications
Models:

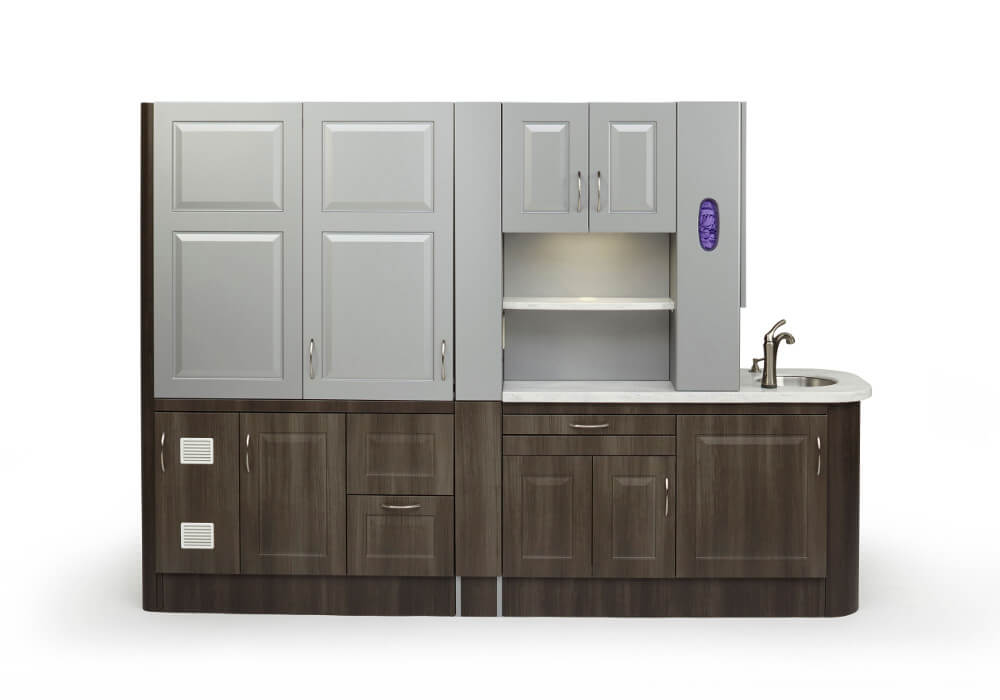

CS1 – 59'' x 72": sink base to center column (no equipment end)
CS2 – 103.5'' x 72'': full central with 42" equipment base
CS3 – 109.5'' x 72'': full central with 48" equipment base
CS4 – 59'' x 90'': sink base to center column (no equipment end)
CS5 – 103.5'' x 90'': full central with 42" equipment base
CS6 – 109.5'' x 90'': full central with 48" equipment base
CS7 – 59'' x 95'': sink base to center column and extension (no equipment end)
CS8 – 103.5'' x 95'': full central with 42" equipment base and extension
CS9 – 109.5'' x 95": full central with 48" equipment base and extensionStructure:
Powder-coated, 18-gauge cold-rolled steel; multi-piece shell and frame design; rivetedDoor and drawer front/back:
12-mm seamless polymer-covered front; melamine back (Frost in color)Door and drawer core:
45-lb LEED® IEQ-compliant MDF board,
¾"-thick (all composite wood material to meet CARB P2 emission standard of CARB regulation 91320.4)Hinges:
Manufacturer's standard Blum® concealed,
self-closing, 110°-opening, nickel-plated metal, clip-on mount, three adjustment points
Soft-close, full-extension, ball-bearing glides
Soft-close, concealed steel hingesPulls:
128-mm pull offering (Serenity, Transcend and Pinnacle styles); integrated front-pull design (Cove style)Deep-drawer construction:
One-piece, molded polystyrene drawer bodies with rounded corners (Frost in color)Slide:
Manufacturer's standard Accuride® Aero (100-lb capacity) ball-bearing slidesSecurity:
Keyed and key-less lock optionsStandard panel color options:
12 woodgrains
5 solids
4 metallicsPanel style options:
Cove
Serenity
Transcend
PinnacleHandle style options:
Arc
Bent
Bent Antimicrobial
Edge
FlareStandard countertop options:
11 Formica® and Wilsonart® laminate colors
15 Corian® solid-surface colors
10 Zodiaq® and Viatera® quartz colorsSink options:
Laminate Countertop – drop-in sink, touch proximity faucet and soap dispenser
Solid-Surface Countertop – undermount stainless-steel sink, touch proximity faucet and soap dispenser
Quartz Countertop – undermount
stainless-steel sink, touch proximity faucet and soap dispenserThird party trademarks referenced are the property of their respective owners.
-
Colors
-
Corian® Solid Surface
- Deep Night Sky
- Sparkling White
- Antarctica
- Arrowroot
- Silver Birch
- Domino Terrazzo
- Lava Rock
- Pearl Gray
- Neutral Aggregate
- Dove
- Ash Aggregate
- Juniper
- Weathered Concrete
- Linen
- Clam Shell
- Sandstone
- Hazelnut
- Willow
- Canyon
-
Synthesis Cabinet Panel
- Fawn
- Henna
- Path
- Acorn
- Timber
- Pearl Essence
- Pebble Grey PVC Free
- Flat Iron (Metallic)
- Flax
- Sediment
- Storm
- Venus Silver (Metallic)
- Radiance
- Nest
- Whisper
- Frost
- Pebble Grey
- Frost PVC Free
- Earth
- Hewn
- Earthen Bronze (Metallic)
- Dune
-
Laminate
- Frosty White
- Paloma Polar
- Drama Marble
- Neo Cloud
- Argento Romano
- Elemental Concrete
- Praline Antico
- Ebony Fusion
- Smoky Topaz
- Oiled Soapstone
- Polished Concrete
- Kalahari Topaz
- Concrete Stone
- Natural Canvas
- Brazilian Brown Granite
- Milano Quartz
- Butterum Granite
- Jamocha Granite
- Labrador Granite
-
Standard Quartz Countertops
- Minuet
- Everest
- Aria
- Carrara Delphi
- Chateau
- Moon Gaze
- Moorland Fog
- Umber
We have tried our best to accurately represent product colors on this website. However, due to the nature of electronic media, the color of actual products may differ slightly from how they appear on your screen. Colors are subject to change by suppliers.
-
-
