VistaCool™ Direct-To-Drain System
The condensation produced by your sterilizer's steam can be time-consuming and messy to empty from condensate tanks. It can even melt plumbing if not cooled sufficiently before being poured down the drain.

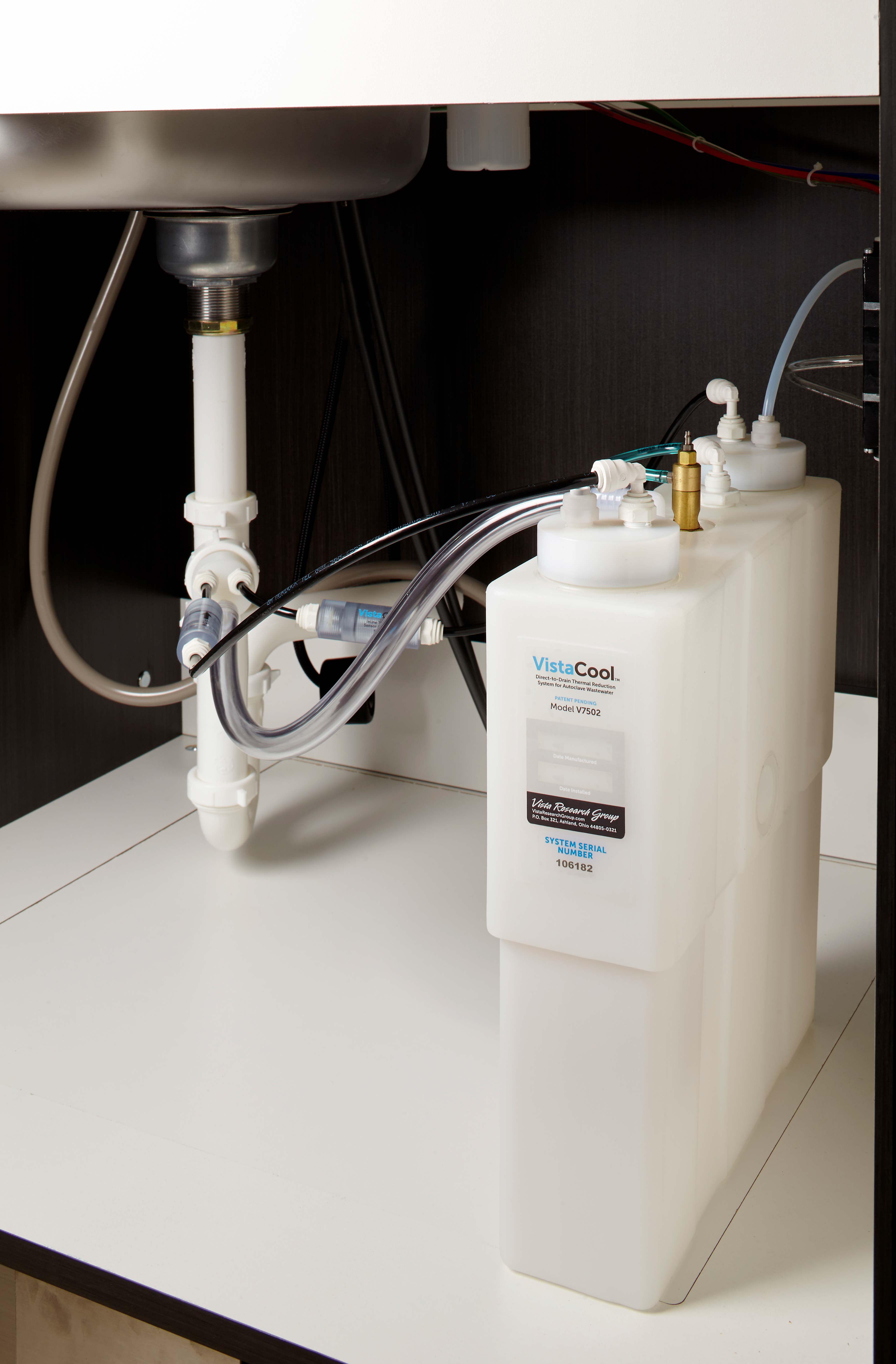

Finally, a product has been designed to provide a reliable and efficient solution. The VistaCool™ direct-to-drain system reduces the temperature of sterilizer wastewater, eliminating the need for condensate bottles and tanks. This safe and reliable solution is designed to enhance office efficiency, as less work for staff means more time to care for patients.
Features
The double unit is compatible with any two current Midmark automatic sterilizers (Midmark M9 and M11). VistaCool™ is designed to:
- Eliminate the need for office staff to empty steaming-hot water bottles manually
- Save staff time by eliminating user maintenance, thanks to the non-electric, self-monitoring, and self-regulating system
- Prevent sterilizer wastewater from melting plumbing

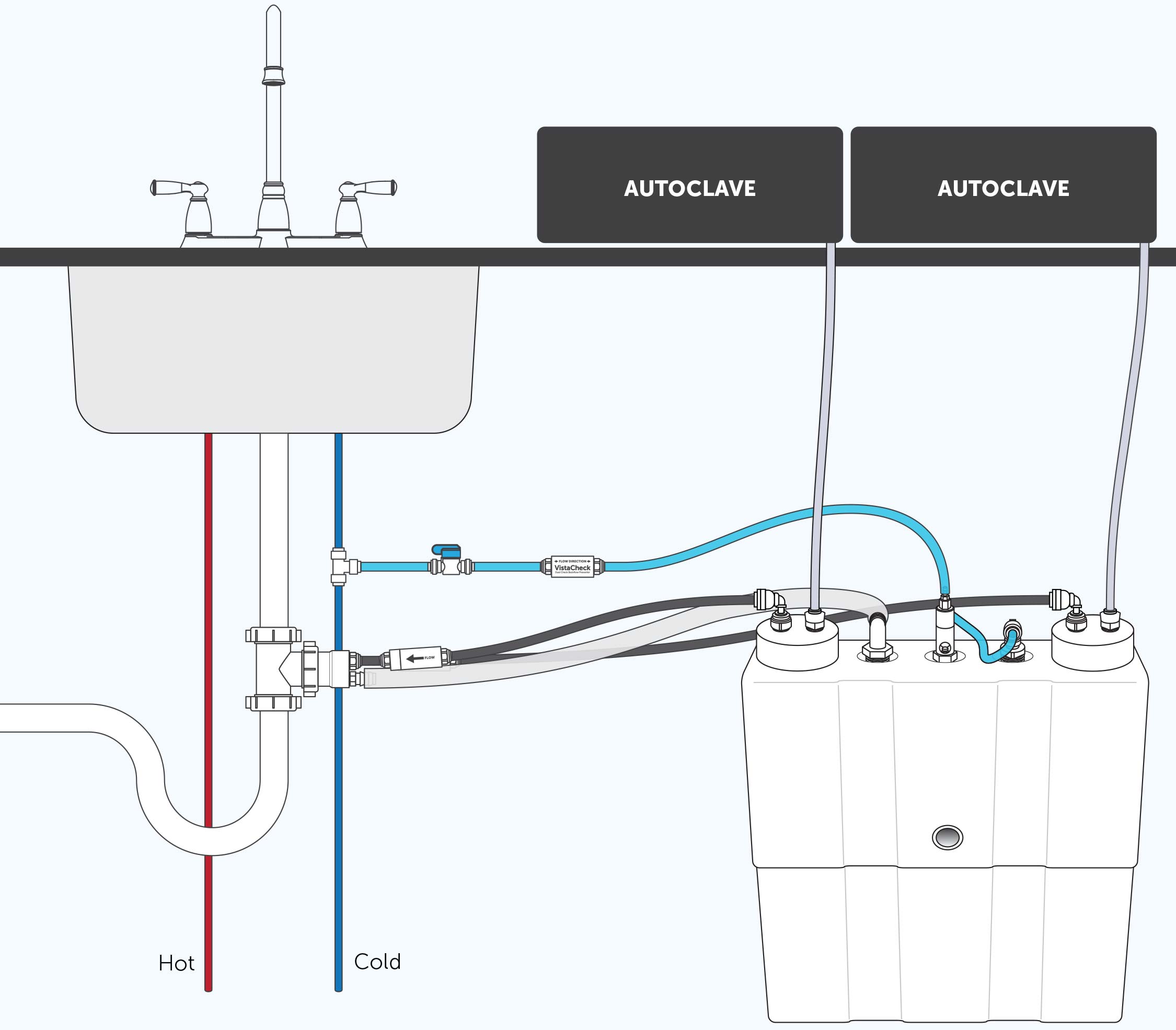

- Provide built-in backflow prevention that meets or exceeds local plumbing codes
- Prevent mold and mildew caused by spills and exhaust from condensate tanks
- Help protect cabinets from rot and rust by sending cooled wastewater directly and safely to the drain
-
Technical Specifications

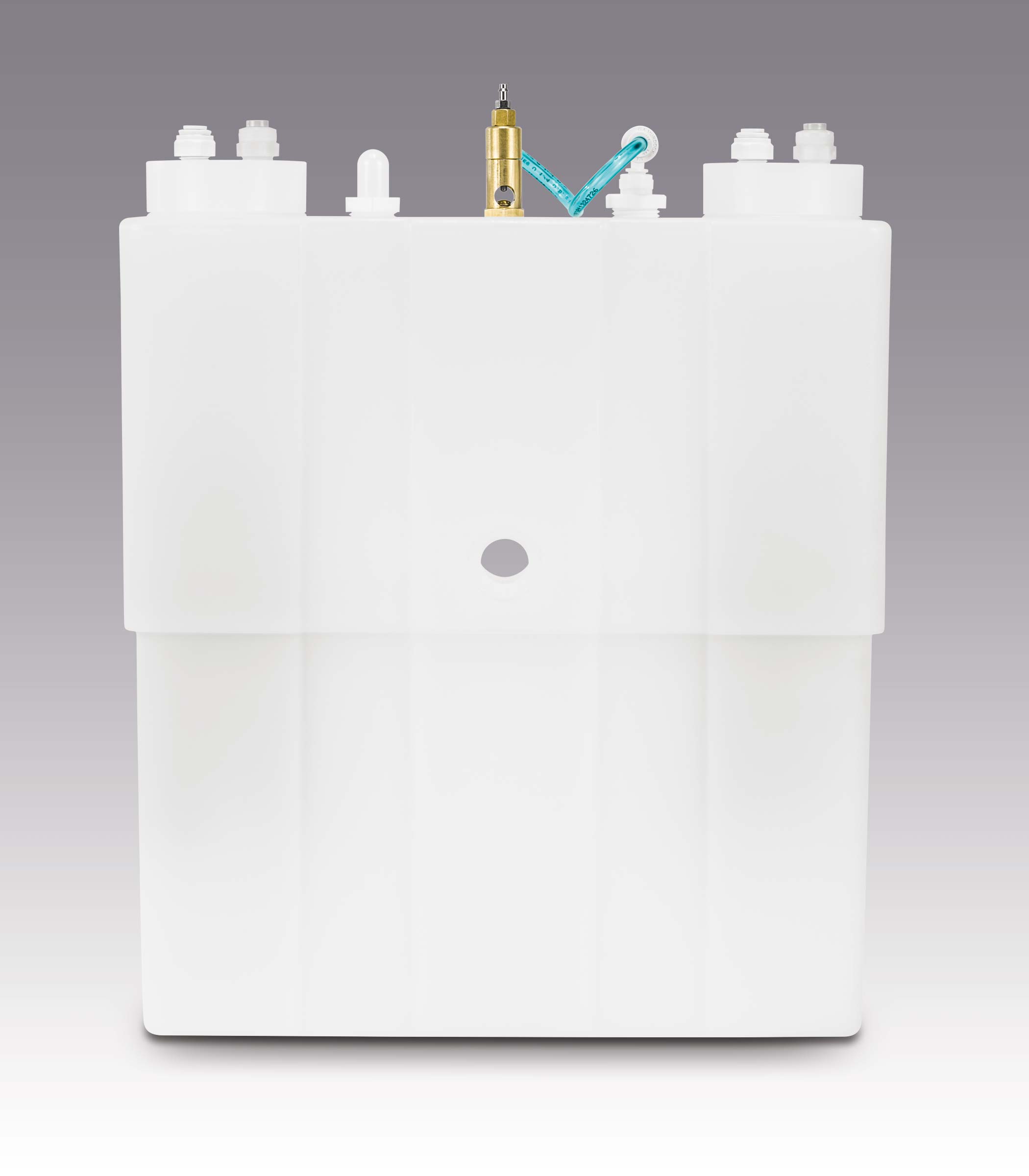

Double Unit
Tank material: Polyethylene – Natural White
Tank dimensions with fittings: 4.0" W x 13.0" L x 17.0" H (10.2 cm x 33.1 cm x 43.2 cm)
Tank volume: 3.0 gal (11.4 liters)
Tank weight with water and fittings: 28.0 lb (12.7 kg)
Approximate shipping weight: 10.0 lb (4.5 kg)
Coolant water connection: Supply fitting for ¼" O.D. required. To be provided by installer.
Max coolant water pressure: 100 psi (6.9 bar)
Max altitude (if using air gap): 6,561 ft (2,000 m)Manufactured by Vista Research Group, Ashland, OH, for distribution by Midmark Corporation. VistaCool™ is a trademark of Vista Research Group, Ashland, OH
-
