Midmark Preva™ 2.0 Intraoral X-Ray

Engineered for performance you can count on, the Preva 2.0 Intraoral X-Ray delivers the same exceptional image quality, one-handed positioning and drift-free stability clinicians trust from Preva DC, paired with digital-ready design. In-arm cabling and a high-speed USB connection at the elbow support direct sensor integration, helping streamline workflow and reduce clutter in the operatory.

Image Clarity

Capture sharp, well-defined details with a 0.4-mm focal spot for easy identification of pathology with both film and digital sensors.

Digital Readiness

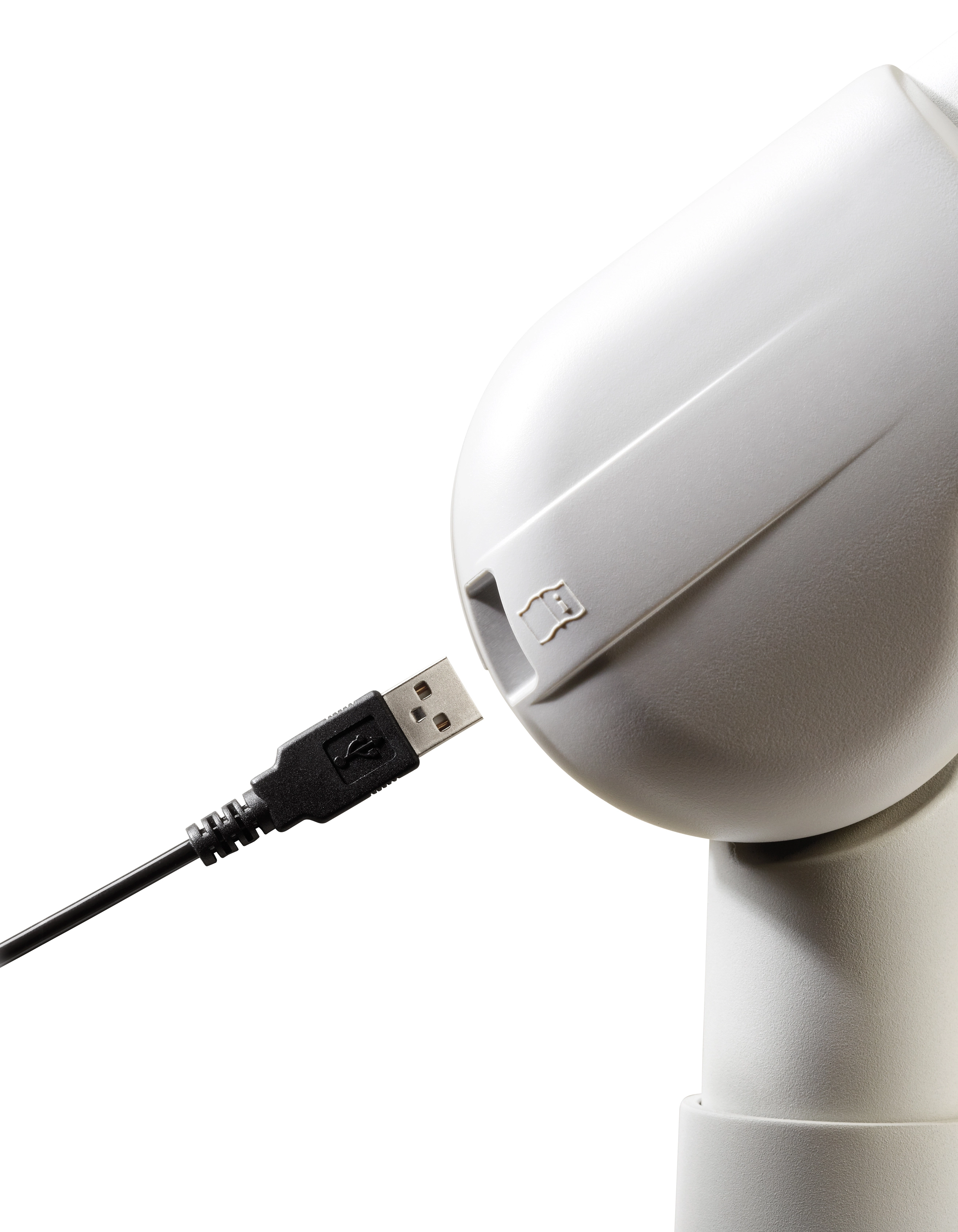

Go digital when your practice is ready with a built-in high-speed USB connector.

Ease of Use

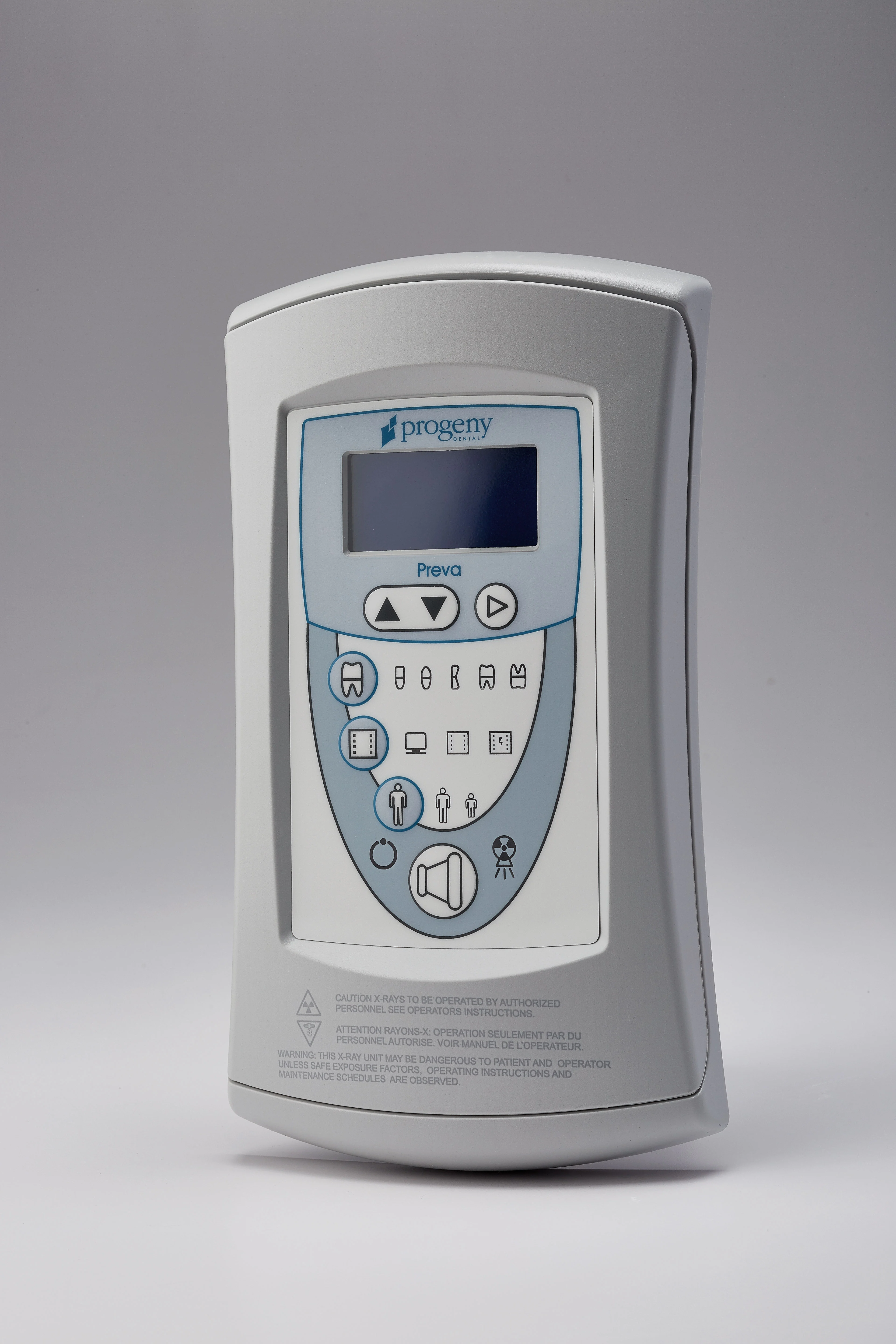

Identify target tooth, receptor type and patient size and select from pre-programmed technique settings on the easy-to-use LCD control panel with large icons.

Ergonomic, Drift-Free Positioning

Help reduce retakes with precision-balanced arm mechanics and a proprietary dual-arm braking system designed to keep the head exactly where you position it, without sagging or drifting.

  • Resources

  • Technical Specifications

    Line voltage: 110-230 V, +/- 10% 50 or 60 Hz

    Tube potential: 60, 65 or 70 kVp

    Tube current: 4, 5, 6 or 7 mA

    Exposure time: 0.02 s to 2 s

    Cone length: 8" (20 cm)

    Focal spot: 0.4 mm (IEC 60336)

    Duty factor: 1:15

    Shipping weight (wall mount): 43 kg (95 lb)

    Applicable regulations compliance:
    21 CFR, UL, IEC

    Warranty: 2-year, limited

    Options: Exposure hand switch; 8"(20 cm) and 12" (30 cm) cone length; rounded 2.3" (60 mm) and rectangular 1.7" x 1.3" (45 mm x 35 mm), 1.5" x 1.1" (40 mm x 30 mm), 1.1" x 0.7" (30 mm x 20 mm) cone openings
    Choice of 56", 66", 76", or 82" (total reach); single stud mounting plate; two-stud mounting plate; metal stud-mounting plate

    Minimum ceiling requirement: 86.5" (220 cm)

    Cabinet pass-through (alternate): 66" Arm: 26.75" W x 47.5" D (68 cm x 121 cm); 76" Arm: 36.75" W x 47.5" D (93.5 cm x 121 cm)

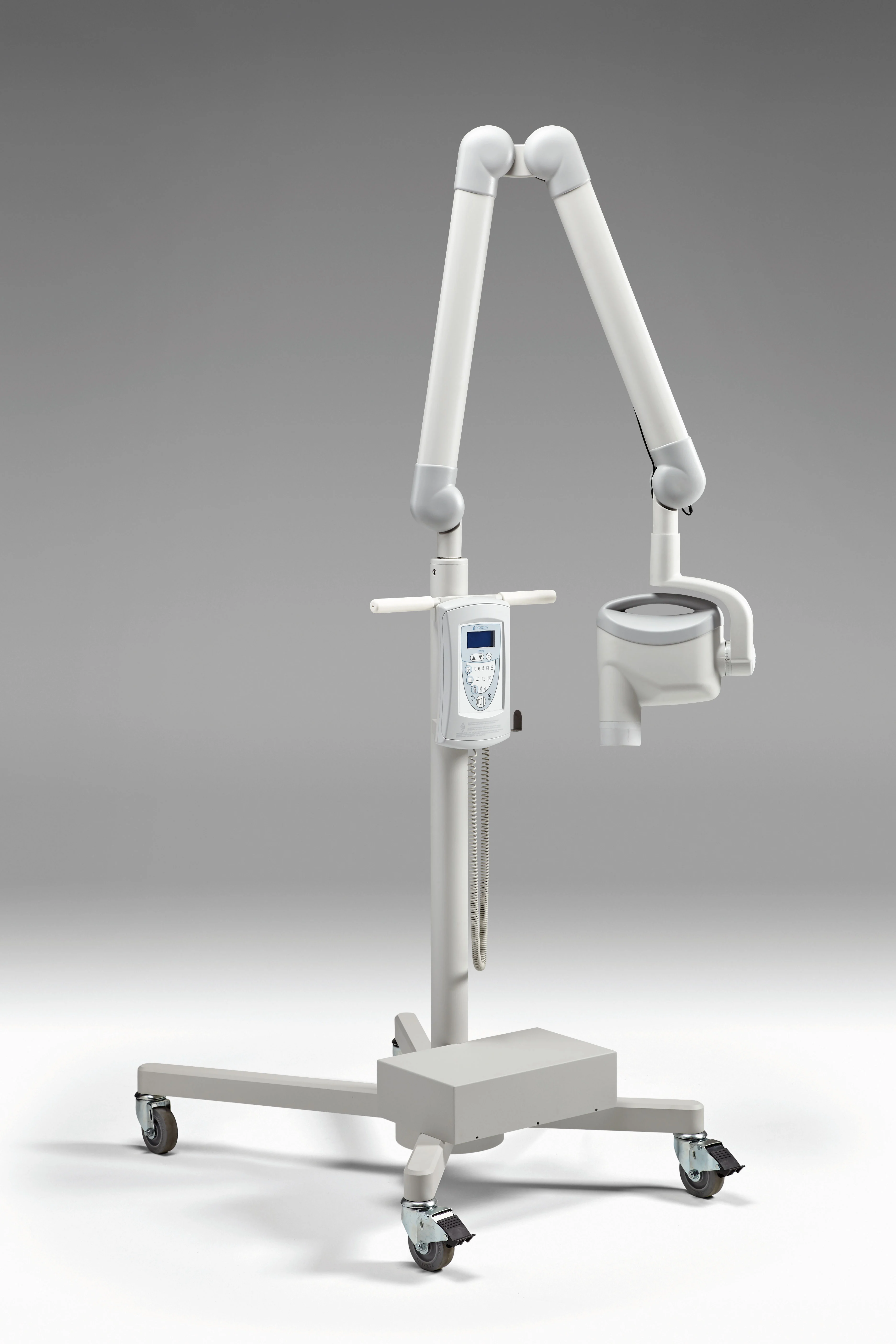

    Mobile: Base: 26.9" W x 36" L (68.3 cm x 91.4 cm); Arm reach: 56" (142 cm); height: 76.9" (195.3 cm)

    For additional specifications, Click Here.

  • Set-Up and Maintenance

    Progeny Imaging Software

    Standard with all Midmark imaging equipment, Progeny® Imaging Software supports image acquisition, diagnosis and image handling.

    Maintaining Intraoral Imaging X-Ray Equipment
  • Accessories

    ACCESSORIES
    30-A2040 Handswitch with 25’ cable
    30-A2044 Lighted Remote Exposure Station (with interconnect cable)
    30-A2114 Preva Dual-operator Panel Kit
    30-08110 Lighted Remote-exposure Station
    30-A2042 Two-stud Mounting Plate
    30-A2099 4 X 4 Pass-through Kit
    30-A2043 Metal Stud Mount
    ASAM-GT Laptop Tray for Preva Mobile
    30-08101 Doorbell-type Exposure Station
    45-P0002 Sensor Holder

    REPLACEMENT ARMS 30-A2071
    Preva - 34 5/8” (76” total reach) - long: 30-A2071
    Preva - 24 5/8” (66” total reach) - short: 30-A2073
    Preva - 14 5/8” (56” total reach) - compact: 30-A2074
