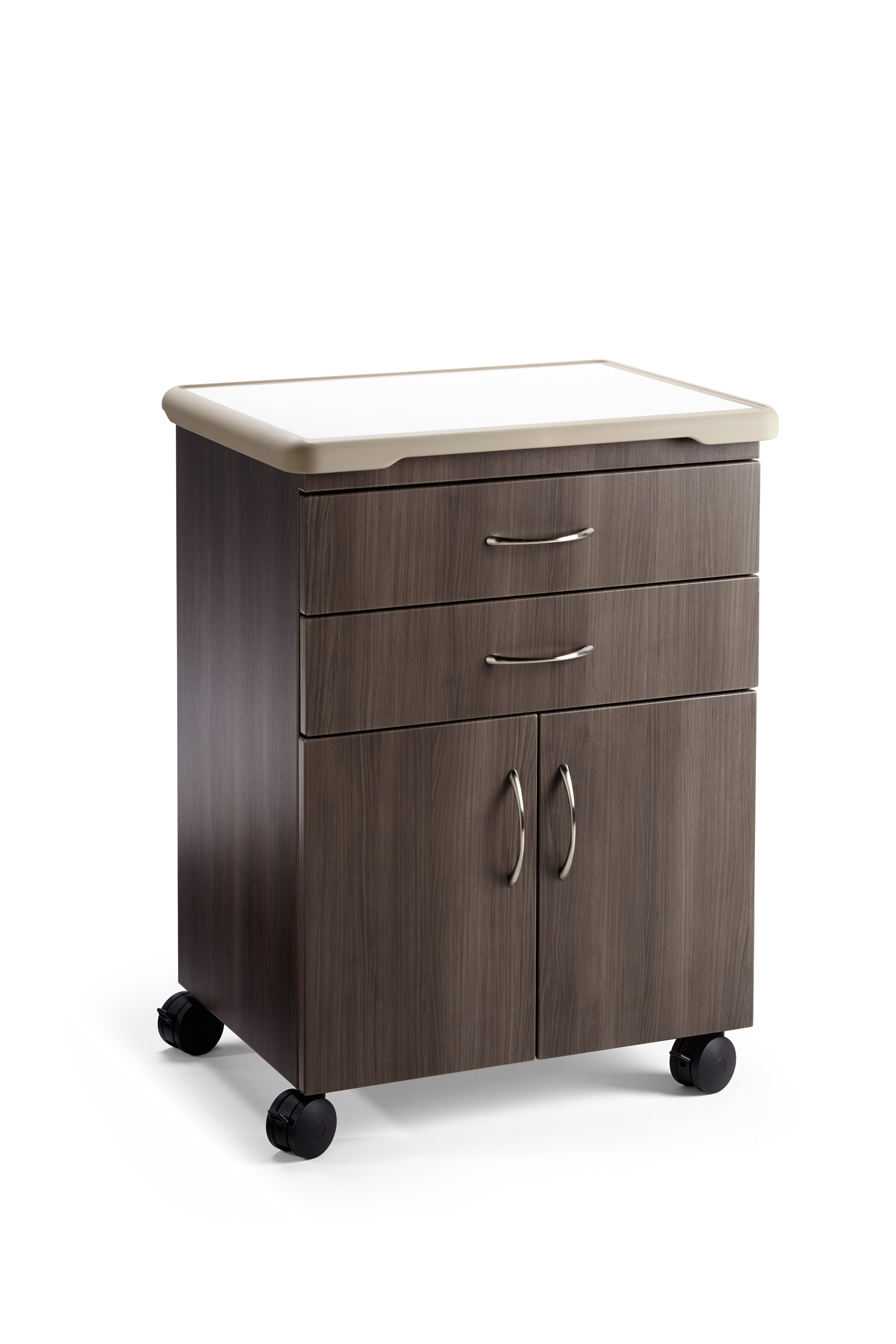

Midmark M2

Treatment Versatility

Bring supplies to the point of care with versatile, mobile treatment cabinets.

Sized Right

A convenient 24” wide x 18” deep treatment top

Storage

Two drawers, each with a one-piece molded insert with rounded corners designed for easy cleaning.

Security

Locks are designed to keep important or hazardous items secured.

  • Technical Specifications

    .

    Cabinet:
    Powder-coated 18-gauge
    cold-rolled steel; multi-piece shell and frame design; riveted and
    press-jointed (Tog-L-Loc®)

    Door construction:
    Front/Back: 12-mm seamless polymer-covered front; melamine back (Frost in color)
    Core: 45-lb LEED® IEQ-compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emmision standard of CARB regulation 91320.2
    Hinges: Manufacturer's standard Blum® concealed, self-closing, 110º-opening, nickel-plated metal, clip-on mount, three adjustment points
    Pulls: 128-mm pull offering for Serenity, Transcend and Pinnacle panel styles; integrated front-pull design (Cove style); recessed clear snap-on handle with interchangeable color strips (Renew style)

    Drawers:
    Deep drawer construction:
    One-piece molded polystyrene drawer bodies with rounded corners (Frost in color)
    File drawer construction:
    18-gauge cold-rolled steel frame; includes suspended file system and file bars
    Front/Back: 12-mm seamless polymer-covered front; melamine back (Frost in color)
    Core: 45-lb LEED® IEQ-compliant MDF board, 3/4-inch thick. All composite wood material to meet CARB P2 emission standard of CARB regulation 91320.2
    Slide: Manufacturer's standard Accuride Aero (100-lb capacity) ball-bearing slides; Accuride Model 3832 (100-lb capacity) for pullout writing surfaces and waste cans; and heavy-duty Accuride Model 3640 (200-lb capacity) slide for file drawers and
    heavy-duty pullout shelves
    Pulls: 128-mm pull offering for Serenity, Transcend and Pinnacle panel styles; integrated front-pull design (Cove style); recessed clear snap-on handle with interchangeable color strips (Renew style)

    Locks:
    Doors: Manufacturer's standard Timberline, individually mounted, cam-style lock removable lock plug; locks keyed alike with two keys per lock
    Drawers: Manufacturer's standard Timberline lock body with removable lock plug with
    14-gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.
