Midmark® Dental Delivery System
Engineered for reliable positioning, enhanced waterline safety and seamless integration, the Midmark Dental Delivery System helps deliver safe, exceptional care with ergonomic precision and control.
Support Ergonomics
- Configuration options help keep instruments within reach to support healthy posture and movement.
Enhance Safety
- Waterlines with minimized internal surface area help inhibit biofilm formation and spread.
- Manifold assembly keeps fresh water circulating to help prevent stagnation and biofilm buildup.
- Biofilm prevention and treatment options help enhance infection prevention—determined to be effective by testing in accordance with ISO 16954
Streamline Workflow

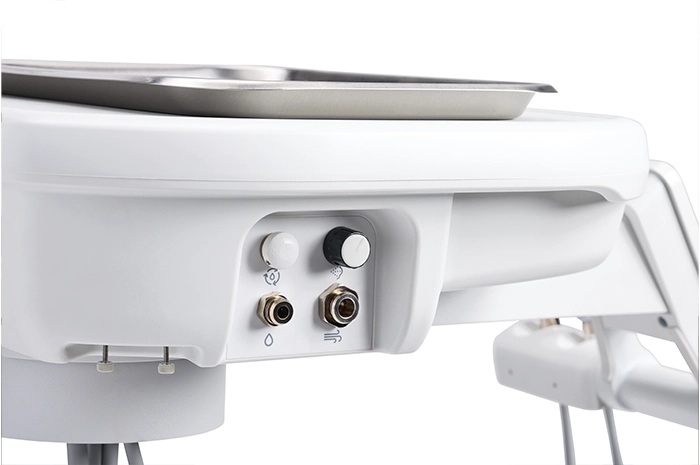

- Water and air quick-connect ports help simplify everyday adjustments, routine flushing and maintenance.
- Easy-to-access water controls support independent handpiece management and precision.
Optimize Performance
- Midmark Smart View™ Connectivity – Enables software updates and refinements designed to help prevent issues, minimize downtime and keep your equipment performing at its best.
-
Resources
Brochures:
Midmark Operatory Solutions French Midmark Delivery Services Spec Sheet: Midmark Dental Delivery System French eBook: Safety Now More Than EverInfographics:
Rethinking “Good Enough” Operatories Design Operatories for Better Workflow Protect Your Health + CareerVideos:
MIDMARK OPERATORY SOLUTIONS
Reimagine the Dental Operatory Elevate Care Experiences + Support Profitability Support Your Health + CareerMIDMARK DENTAL DELIVERY SYSTEMS
Adjusting the Midmark Dental Delivery System -
Technical Support
Mounting Configurations:
Left/Right Chair-Mounted – Doctor-Only Unit

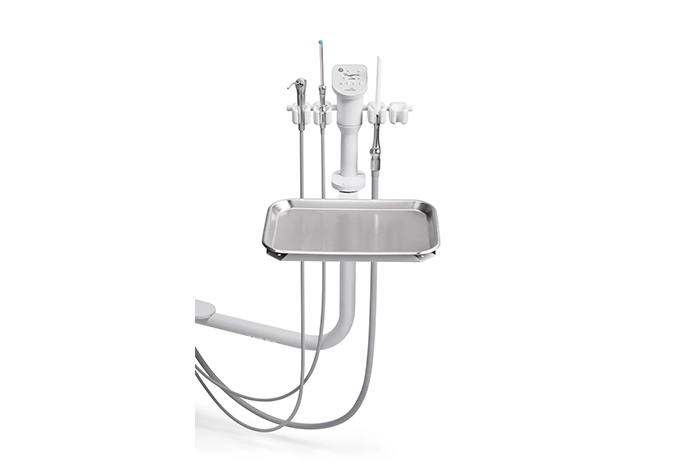

Chair-Mounted – Assistant-Only Unit
12 O’Clock Cabinet-Mounted – Doctor + Assistant Unit

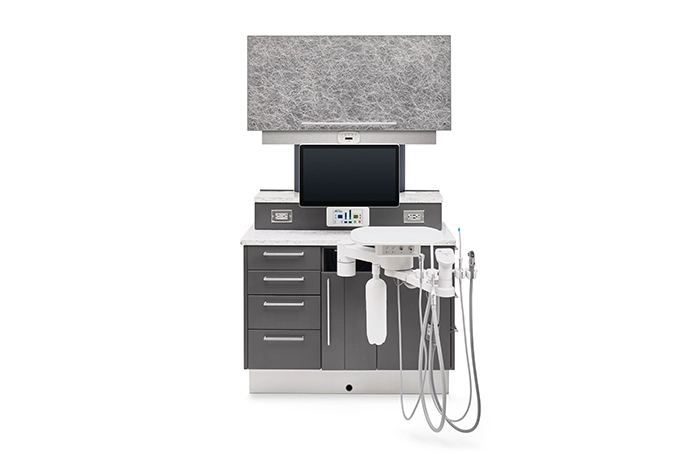

12 O’Clock Cabinet-Mounted – Assistant-Only Unit

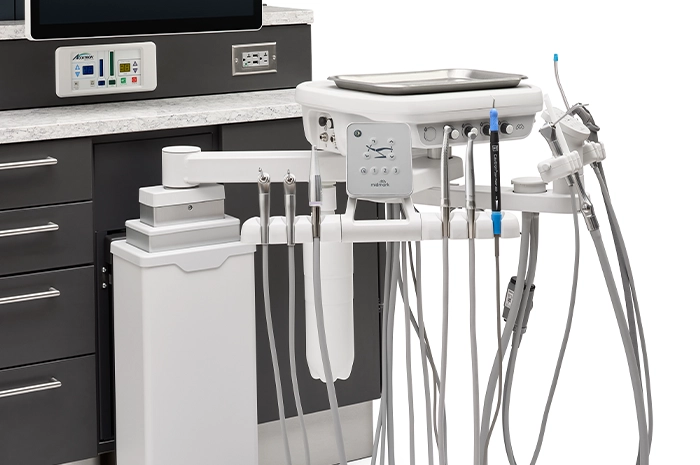

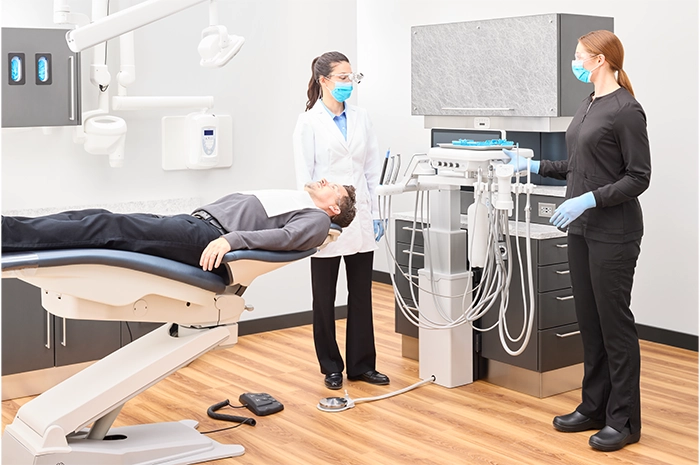

12 O’Clock Column-Mounted – Doctor + Assistant Unit
Handpiece Capacity:
Supports 4 or 6 handpiece positions (configuration dependent)
Independent coolant water control for each handpiece
Water System:
Self-contained water bottle: 2 L
Facility water connection: Available
Recommended water pressure: 40–50 psi
Max. water flow rate: 1.25 GPM
Water hardness limit: 10 ppm TDS
Designed to support cartridge-based dental waterline treatment systems
Air System:
Facility air supply requirement: 80–100 psi
Drive air flow: 60 Nl/min @ 45 psi
Coolant air flow: 1.5 Nl/min @ 35 psi
Individual drive air adjustment for each handpiece
Controls + Integration:

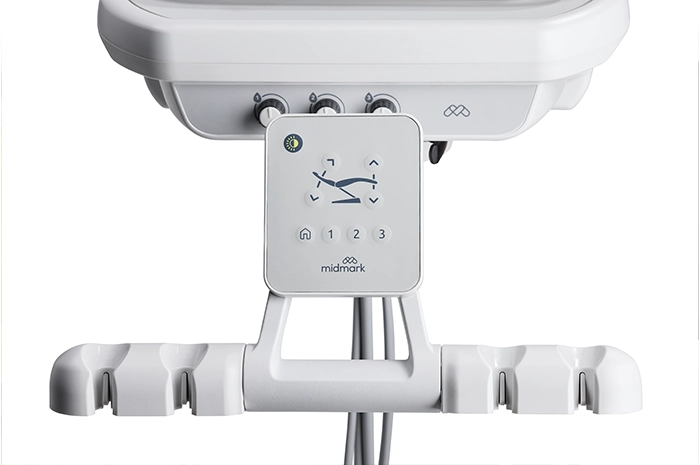

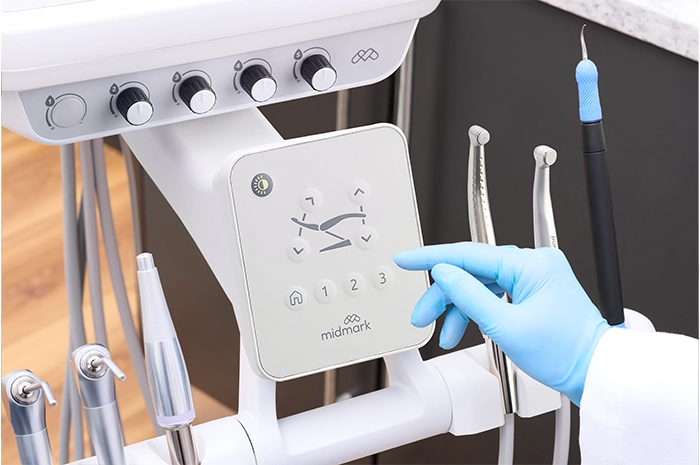

Touchpad controls for chair positioning (when connected)
Supports cure-safe lighting mode with Midmark Dental LED Light
Manual air and water shutoff valves at point of input
Classification + Compliance:
Class I medical electrical equipment
Type B applied part
Continuous operation
Complies with applicable IEC, ISO and ANSI/AAMI standards
Optional Accessories:
Delivery system instrument tray (9" x 13")
Integrated power scaler (configuration dependent)
Assistant’s evacuation system (HVE and saliva ejector)
Specifications and available configurations may vary based on selected delivery system, chair, cabinet and operatory layout.
-
