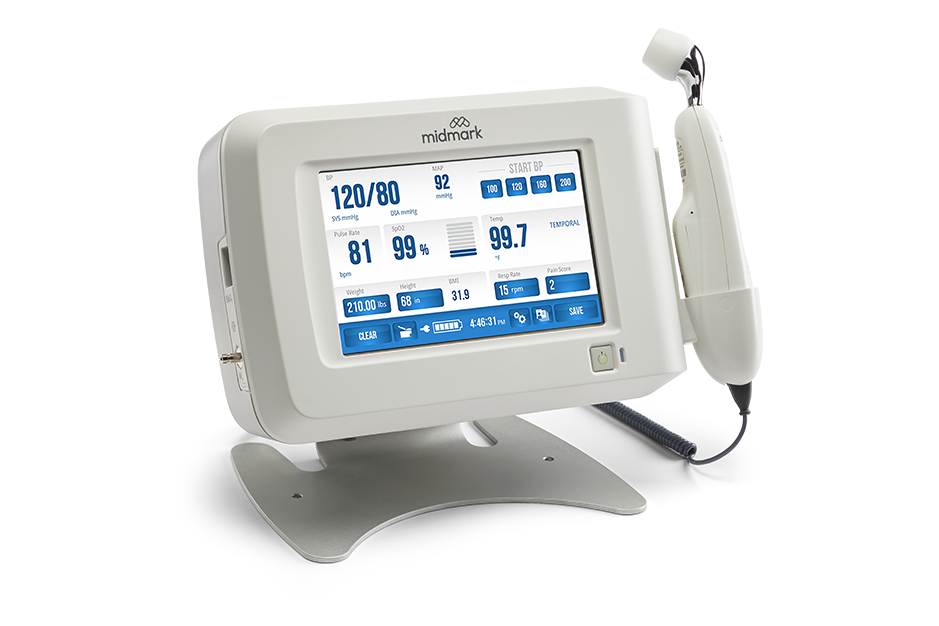

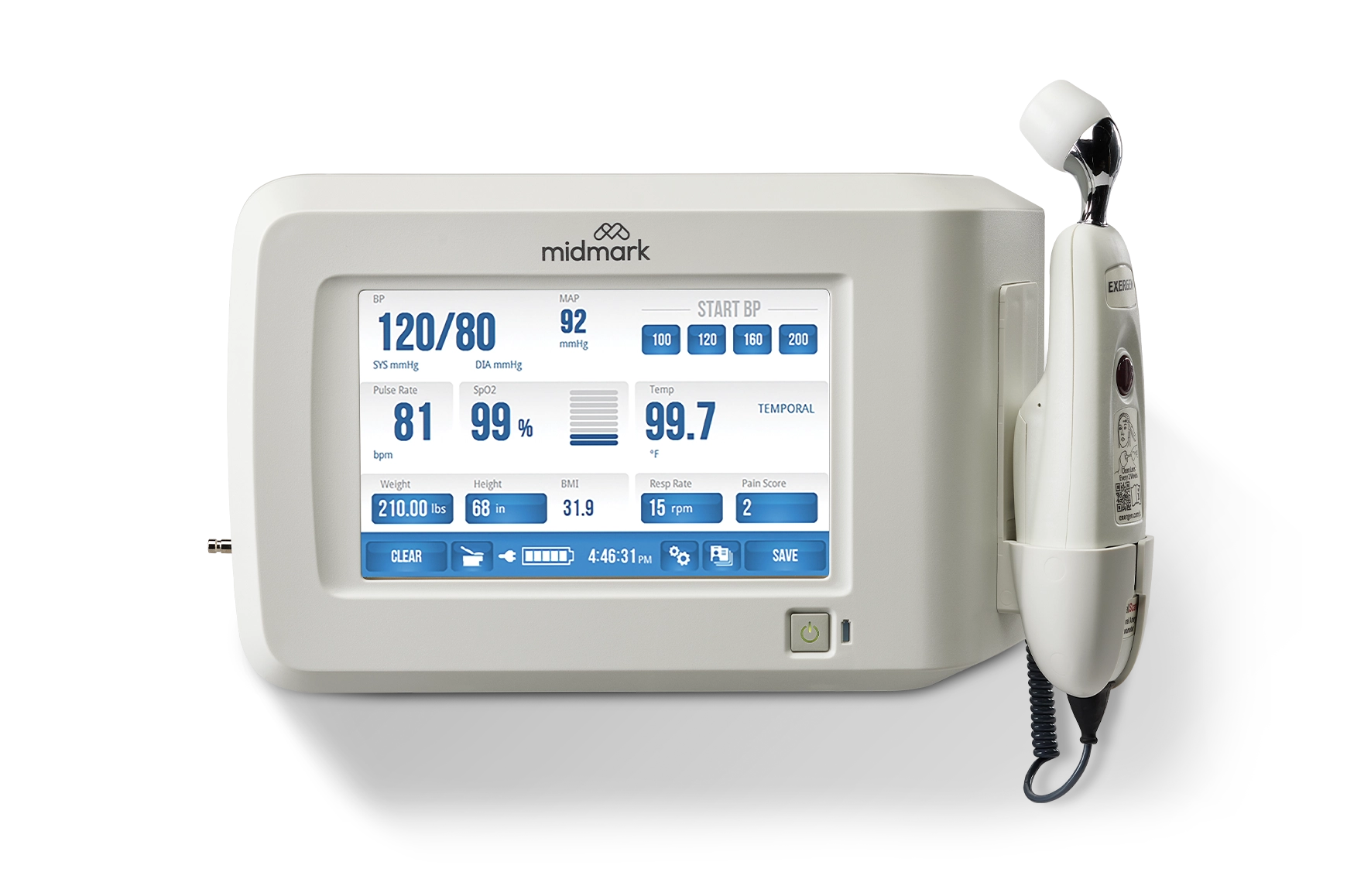

The Midmark Digital Vital Signs Device is an affordable, touch screen, Windows® based device that provides automated blood pressure, temperature, SpO2 and pulse rate readings with a touch of the screen. The Midmark Digital Vital Signs Device is designed to work as a standalone device, connect to Midmark IQmanager® through a computer or seamlessly connect to EMR systems.
Connectivity

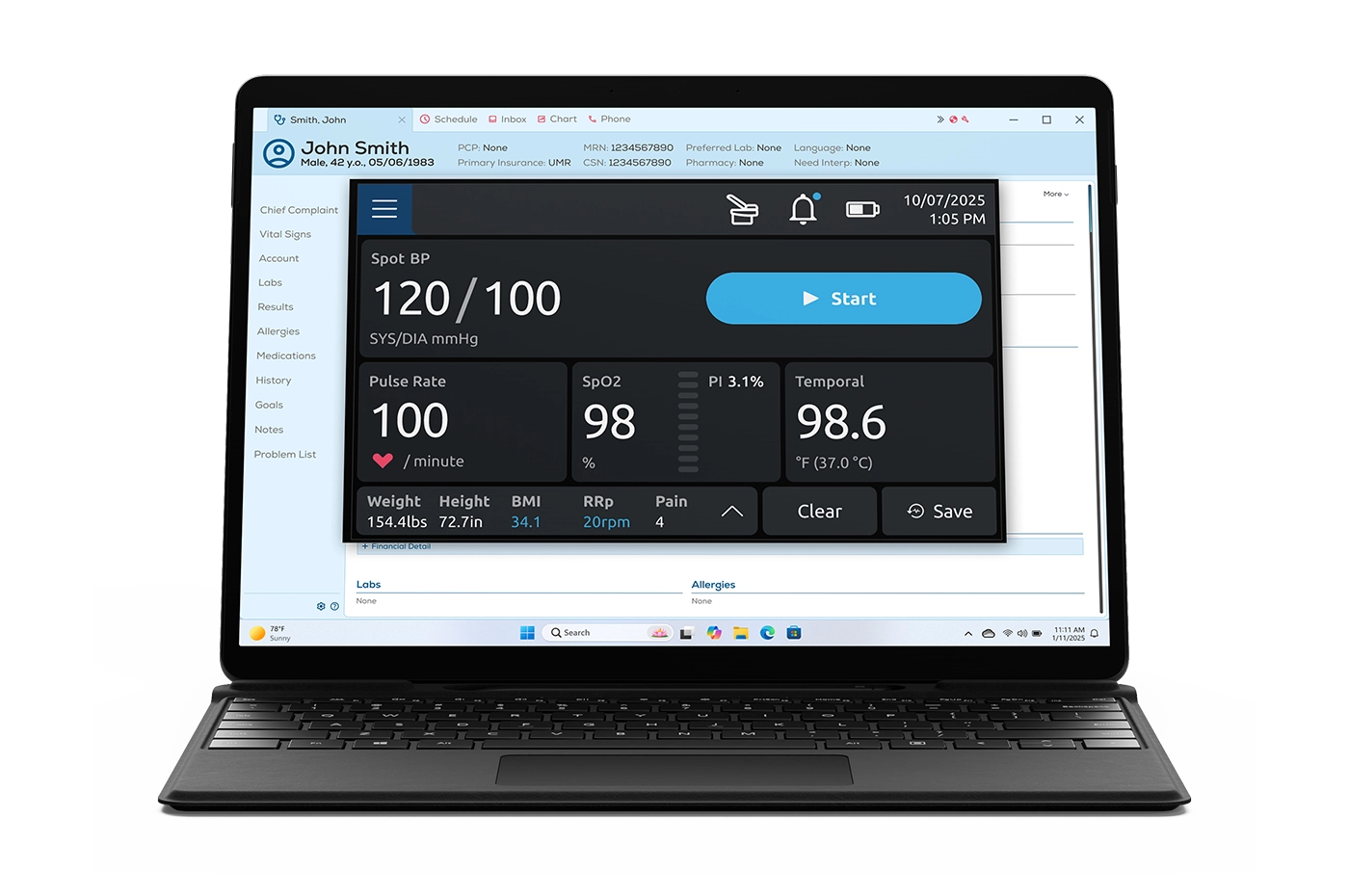

Our diagnostic software works the way you do—letting you capture and sync vital signs data directly from within the EMR. Testing data transfers seamlessly to the patient record, helping reduce manual entry and the risk of errors. See how it works
Efficiency
Designed to support efficiency with an all-in-one vital signs device (with options to add SpO2 and digital scales).
Simplicity
Color LCD display with clear, easy-to-read graphics to support simply usability and help reduce learning curves.

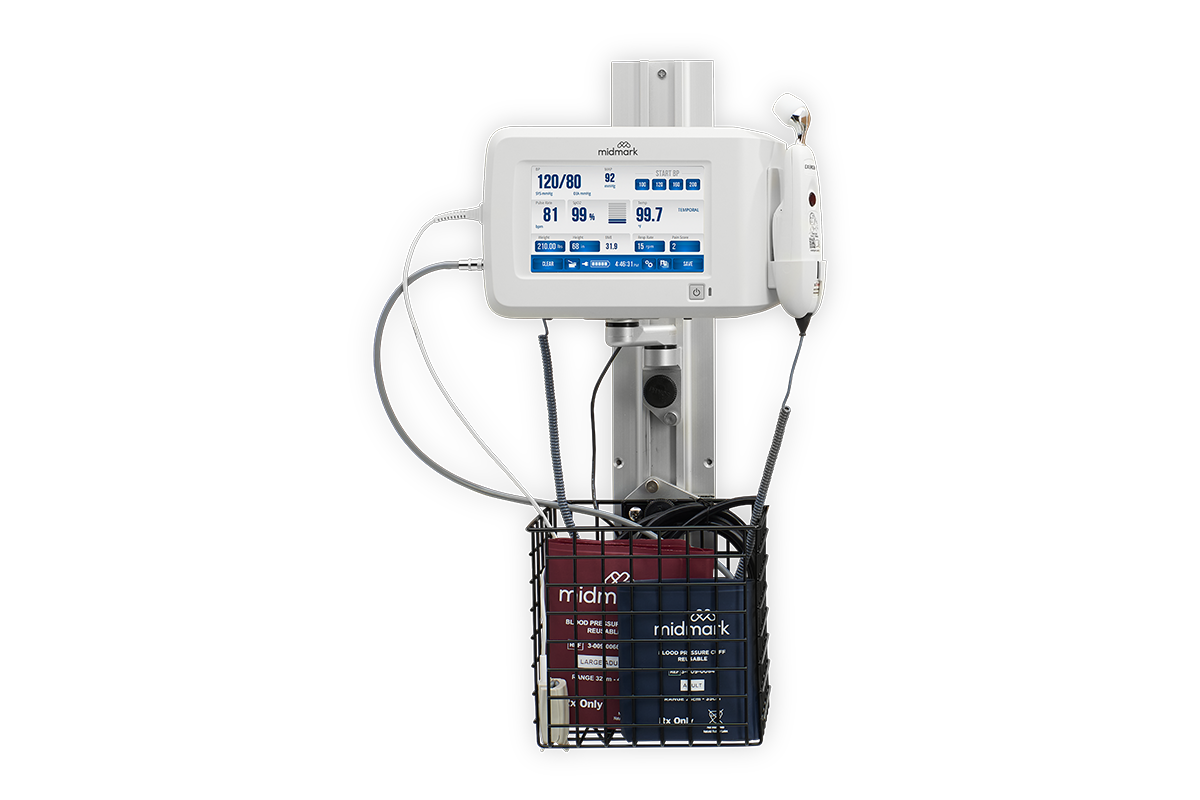

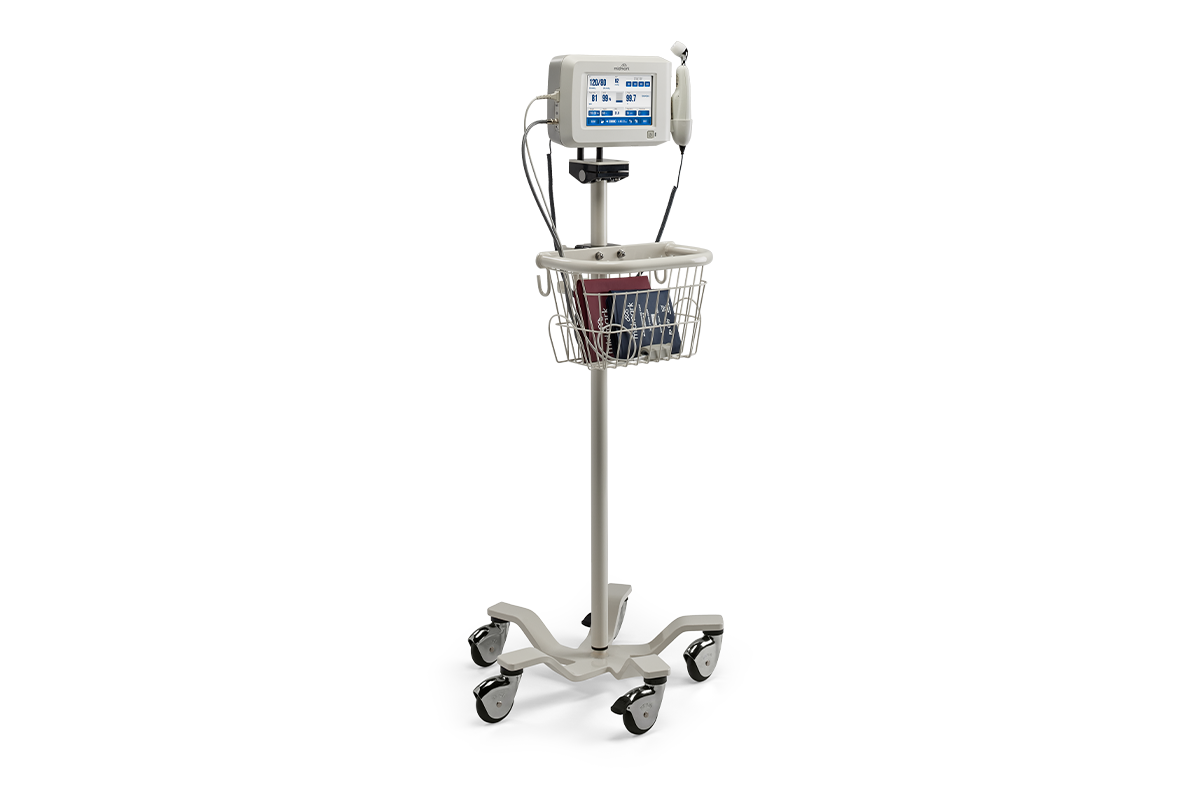

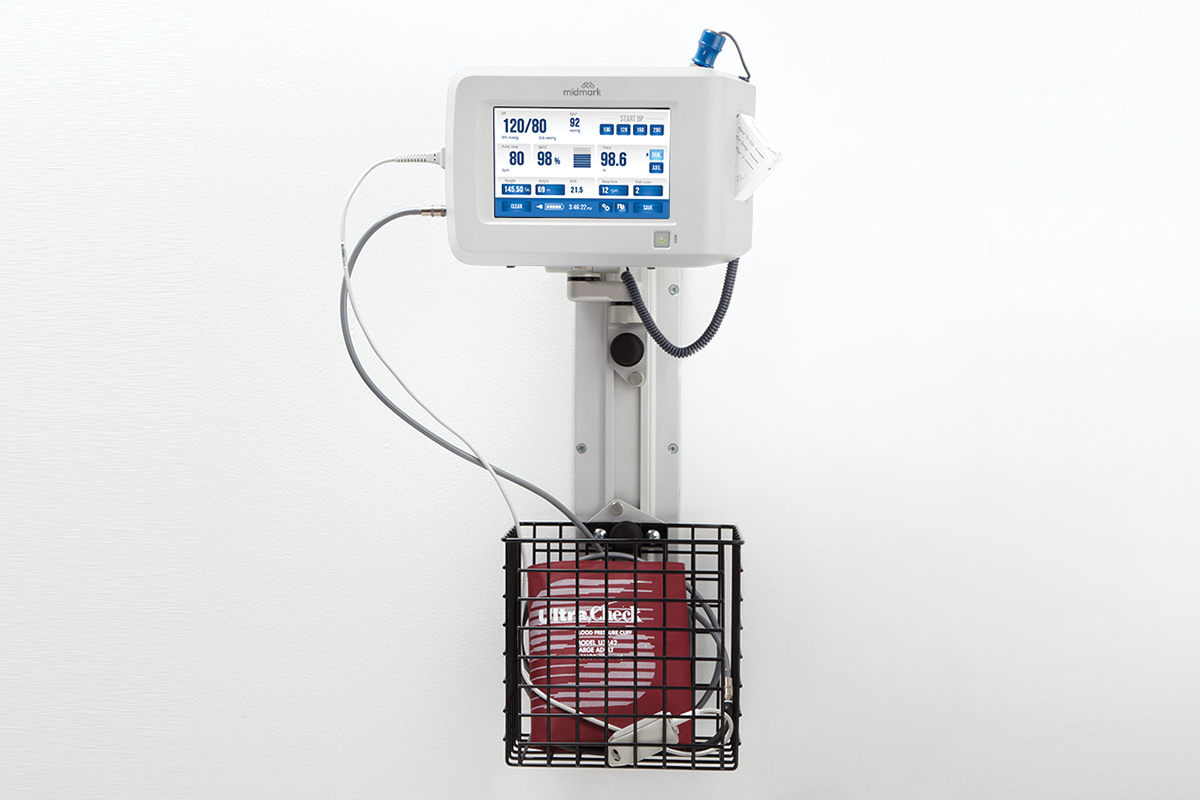

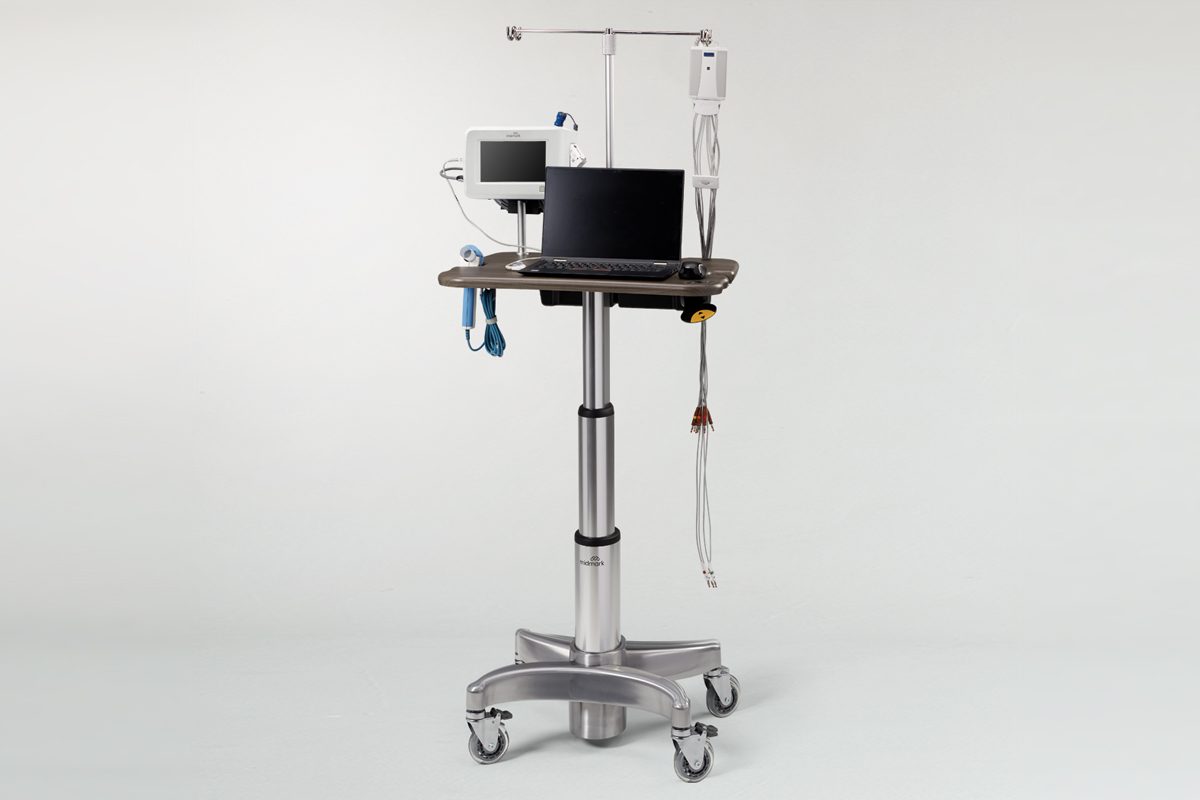

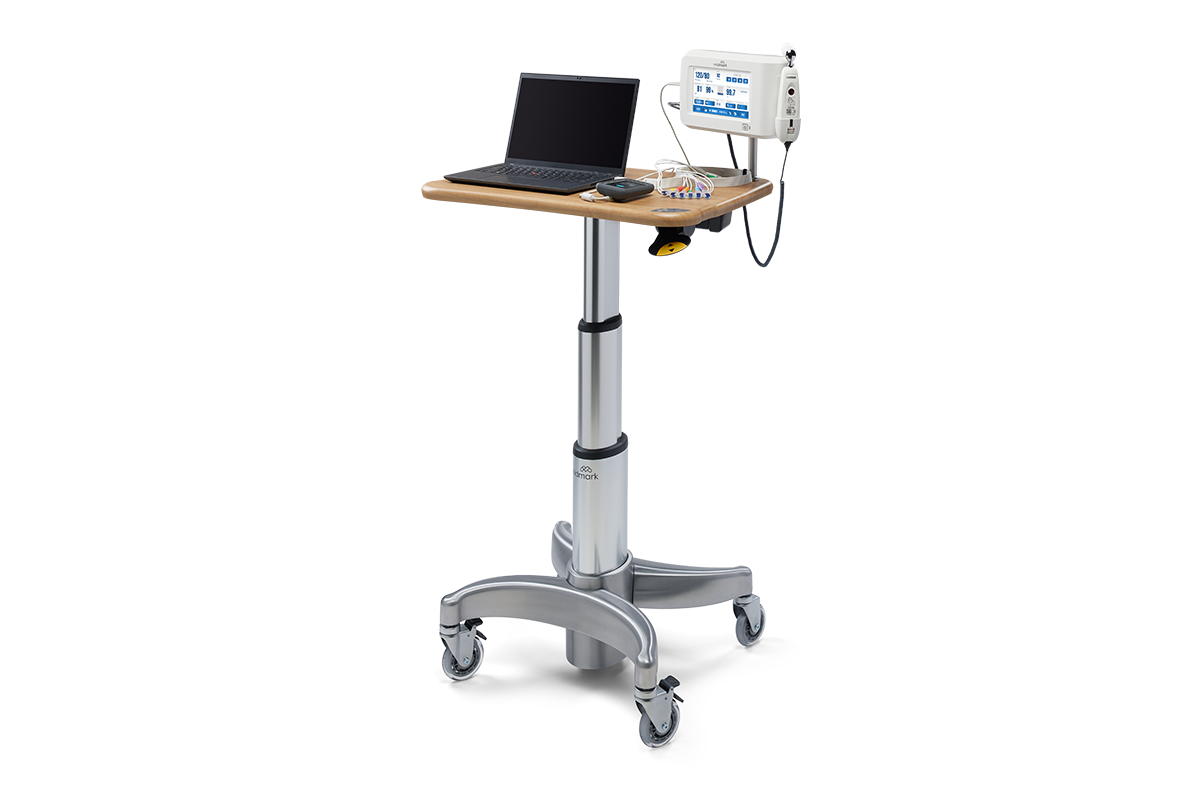

Lightweight and portable with flexible mounting options to meet the needs of the clinical environment.
4.0 lb (1.8 kg) without Exergen® TemporalScanner®
4.7 lb (2.1 kg) with Exergen® TemporalScanner®
12" L x 4" W x 7" H (0.30 x 0.10 x 0.18 m) without the Exergen® TemporalScanner®
12" L x 4" W x 8" H (0.30 x 0.10 x 0.20 m) with the Exergen® TemporalScanner®
100 – 240 V / ~ 50 – 60 Hz / 700 mA Output: 15 V / 2 A
BatteryRechargeable 10.8 V lithium ion battery
NIBP MethodOscillometric
Systolic and diastolic pressures,
and Mean Arterial Pressure (MAP)
User-selectable
Temperature typeExergen® TemporalScanner®
Measurement scaleFahrenheit (F), Celsius (C)
Measurement typeTemporal
Spectrophotometric (dual wavelength)
SpO2 resolution1 O2 %
PR resolution1 BPM
Report interval1 second
Visit this page for a list of our current EMR/EHR partners, information pertaining to device and software compatibility, or to begin the partner registration process.
