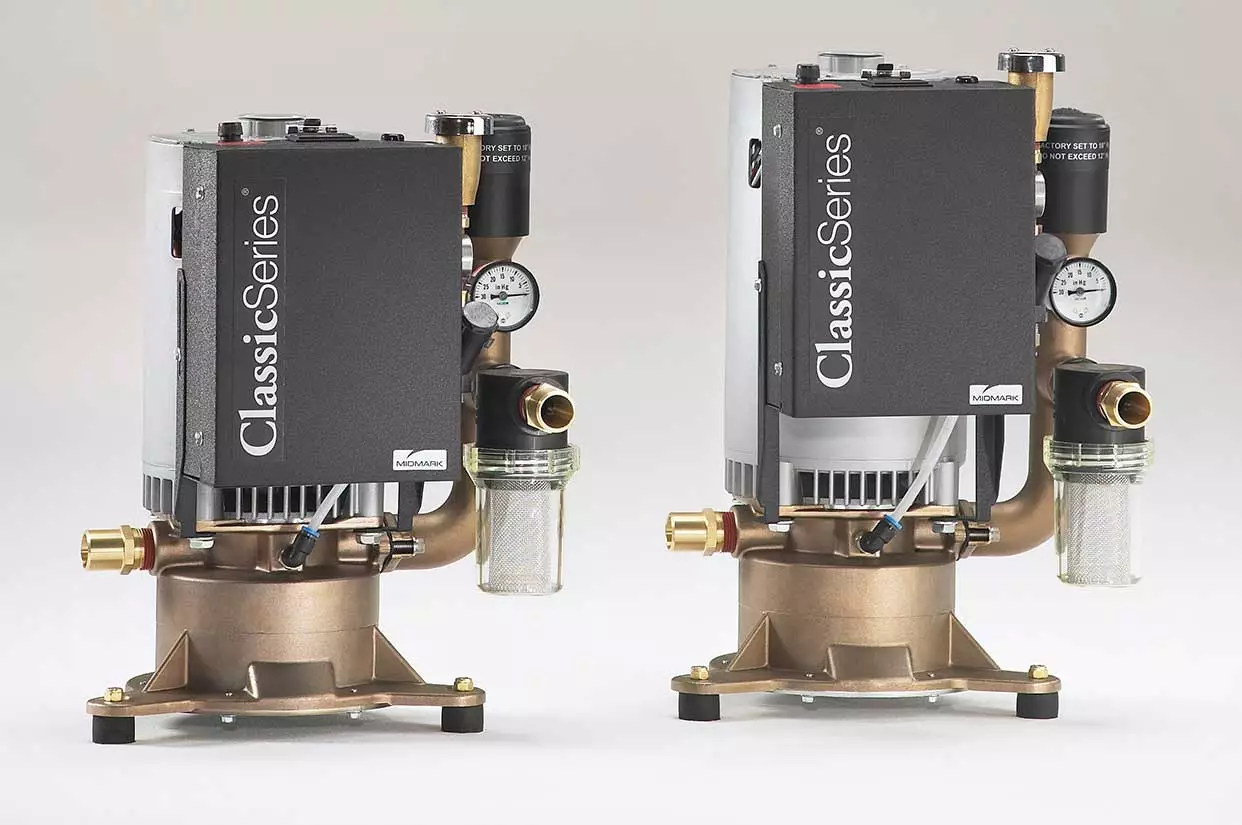

Classic Series® Wet-Ring Vacuum

Midmark Classic Series wet-ring vacuums allow dental offices to deliver dependable performance with a space-saving, compact design. Enjoy the best features and proven technologies of our trusted predecessor machines in one integrated offering.

Features

High output, proven performance
Sound-reducing mufflers are standard
Exclusive internal water recycling
Water-recycling bypass
100% long-term burn-in testing
Durable aluminum bronze construction
NFPA 99C level 3-compliant
UL/CUL classified
Unmatched product warranty – 5-year/10,000-hour full-product warranty

Contact Sales

Technical Specifications

Model: CV3
Max. users: 3
No. vacuums: 1
Total HP: 1.25
Vacuum ("Hg): up to 12"
Voltage: 115/208-230
Amps (per vac): 15/7.5
Water recycling: No
Overall dimensions: 15" H x 12" W x 13" D
Shipping weight (lb.): 70

Model: CV3R
Max. users: 3
No. vacuums:1
Total HP: 1.25
Vacuum ("Hg): up to 12"
Voltage: 115/208-230
Amps (per vac): 15/7.5
Water recycling: Yes
Overall dimensions: 15" H x 12" W x 13" D
Shipping weight (lb.): 70

Model: CV5
Max. users: 5
No. vacuums: 1
Total HP: 2
Vacuum ("Hg): up to 12"
Voltage: 208-230
Amps (per vac): 7.5
Water recycling: No
Overall dimensions: 17" H x 12" W x 13" D
Shipping weight (lb.): 76

Model: CV5R
Max. users: 5
No. vacuums: 1
Total HP: 2
Vacuum ("Hg): up to 12"
Voltage: 208-230
Amps (per vac): 7.5
Water recycling: Yes
Overall dimensions: 17" H x 12" W x 13" D
Shipping weight (lb.): 76

Model: CV6
Max. users: 6
No. vacuums: 2
Total HP: 2.5
Vacuum ("Hg): up to 12"
Voltage: 115/208-230
Amps (per vac): 15/7.5
Water recycling: No
Overall dimensions: 18.5" H x 25.5" W x 20" D
Shipping weight (lb.): 188

Model: CV6R
Max. users: 6
No. vacuums: 2
Total HP: 2.5
Vacuum ("Hg): up to 12"
Voltage: 115/208-230
Amps (per vac): 15/7.5
Water recycling: Yes
Overall dimensions: 18.5" H x 25.5" W x 20" D
Shipping weight (lb.): 188

Model: CV10
Max users: 10
No. vacuums: 2
Total HP: 4
Vacuum ("Hg): up to 12"
Voltage: 208-230
Amps (per vac): 7.5
Water recycling: No
Overall dimensions: 18.5" H x 25.5" W x 20" D
Shipping weight (lb.): 208

Model: CV10R
Max users: 10
No. vacuums: 2
Total HP: 4
Vacuum ("Hg): up to 12"
Voltage: 208-230
Amps (per vac): 7.5
Water recycling: Yes
Overall dimensions: 18.5" H x 25.5" W x 20" D
Shipping weight (lb.): 208
