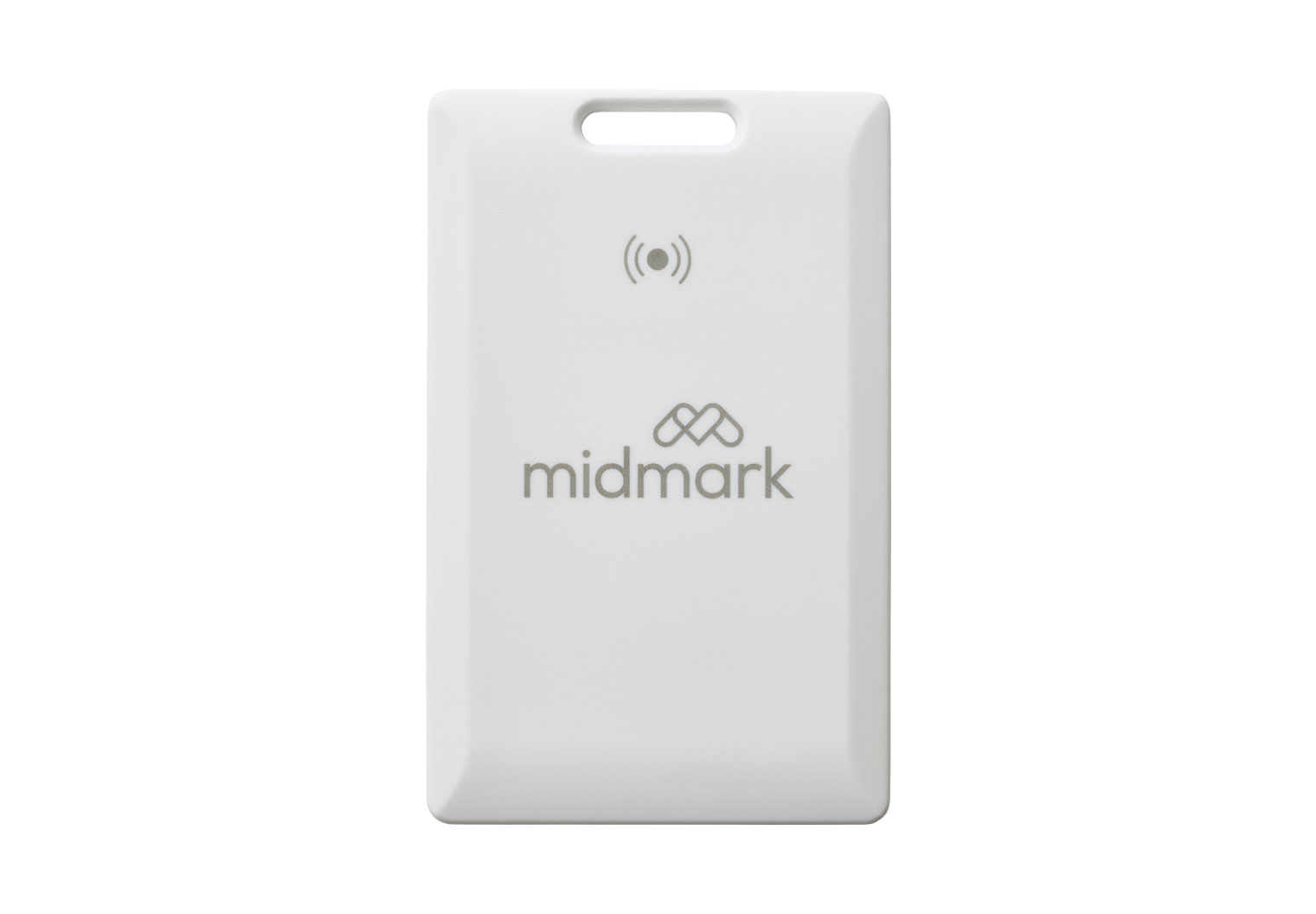

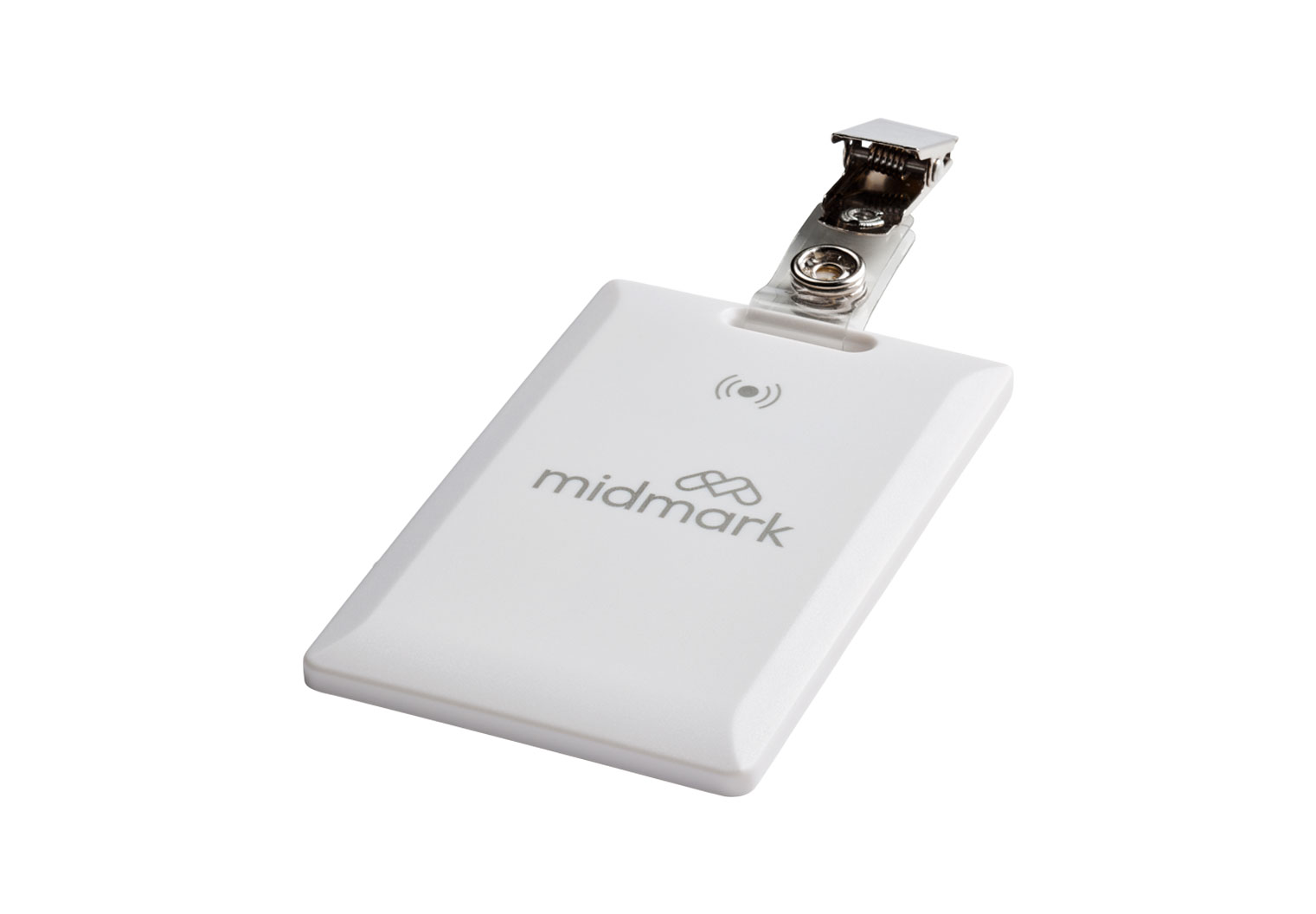

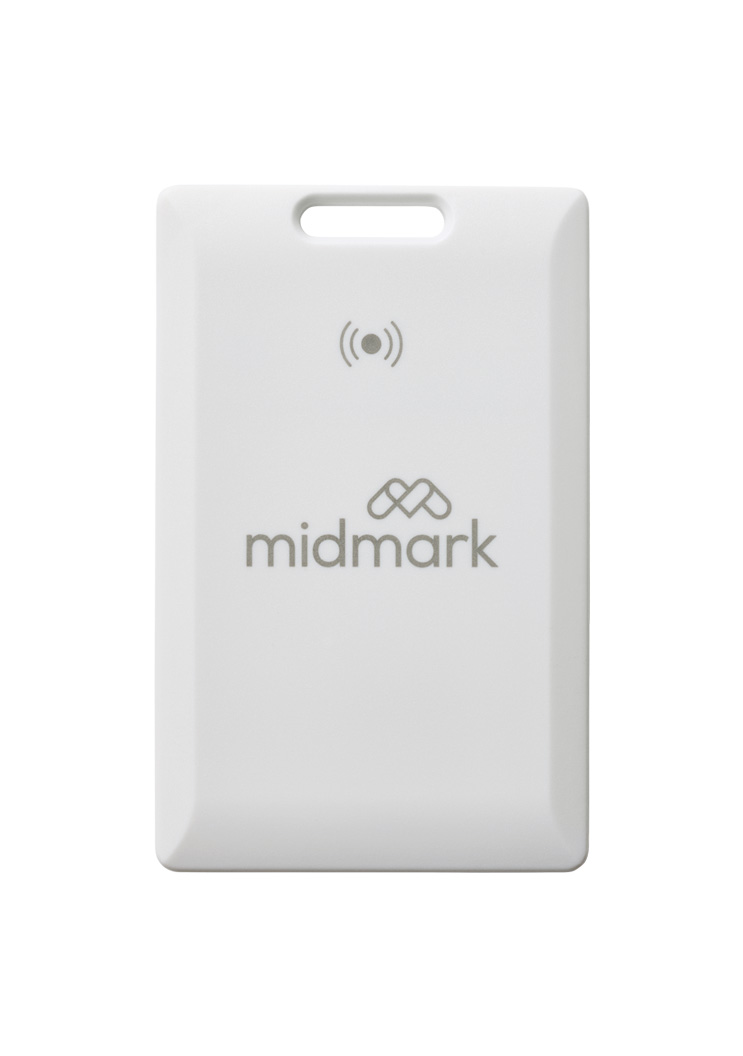

RTLS Patient + Staff Badges

Size:
3.4"H x 2.1" W x 0.2"D

Weight:
0.65 oz

Badge Enclosure:
Badge design protects against low-pressure water jets from any direction, as well as condensation and water spray.

Ingress Protection:
IP67

BLE Frequency:
2.4 GHz

Bluetooth® Standard:
BLE v5.2 protocol compliant

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

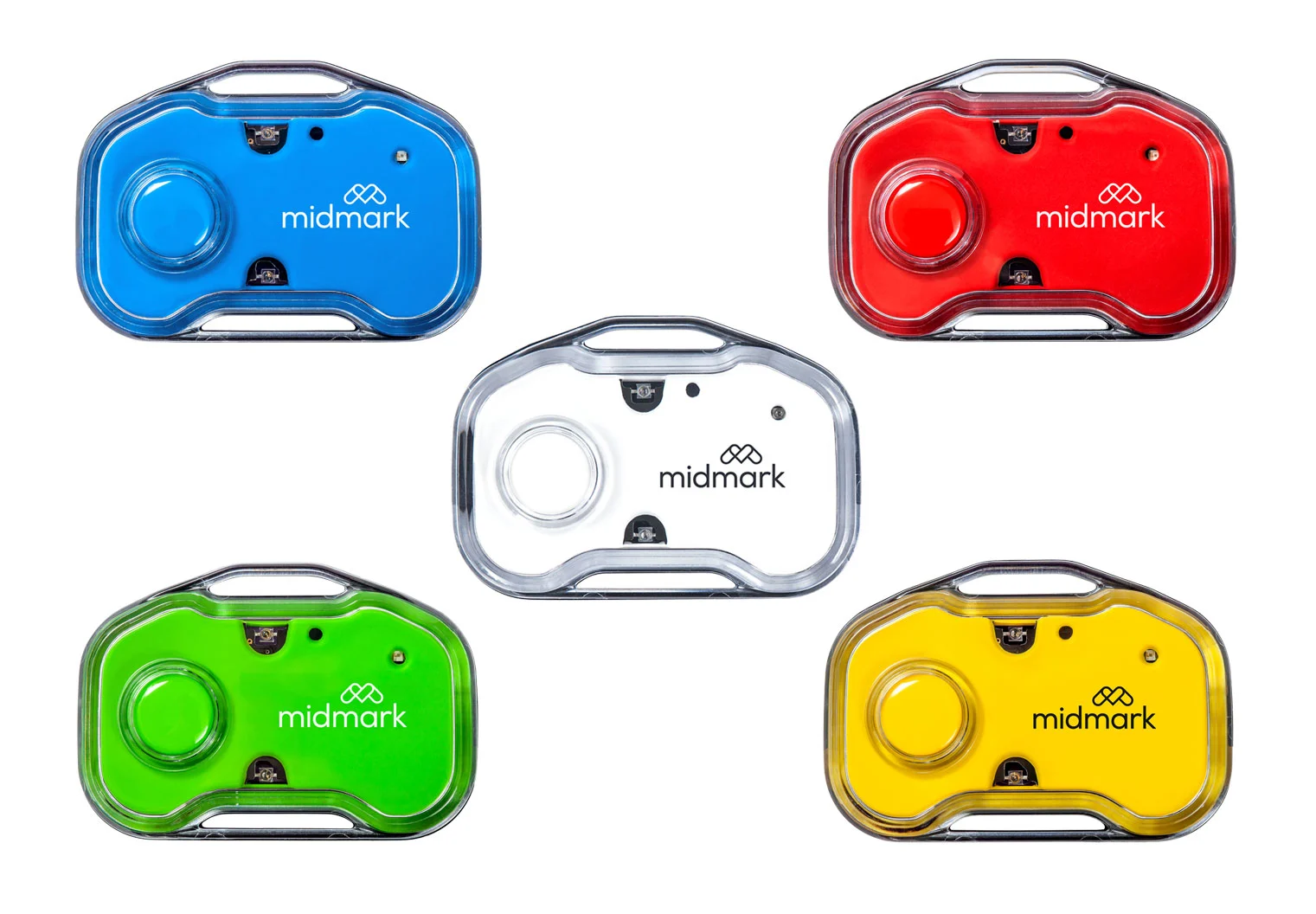

Size:
1.65" x 2.44" x 0.55"

Weight:
1.06 oz with battery

Ingress Protection:
IP53 water/dust sealed

Battery:
Murata CR2477 lithium coin cell

Battery Life:
Up to 2 years when following recommended best practices

IR Locating Signal Interval:
3 seconds when in motion,
2 minutes when resting

IR Frequency:
455 kHz

IR Range:
16 feet

RF Frequency:
433 MHz

RF Distance:
90 feet open air

Size:
1.937" x 1.227" x 0.491"

Weight:
0.6 oz with battery

Weight with Lapel Accessory:
1.1 oz

Weight with Wrist Accessory:
1.4 oz

Ingress Protection:
IPx7 water sealed

Battery:
Murata CR2430 lithium coin cell

Battery Life:
90 days

IR Locating Signal Interval:
3 seconds when in motion,
2 minutes when resting

IR Frequency:
455 kHz

IR Range:
16 feet

RF Frequency:
433 MHz

RF Distance:
90 feet open air

Wearable options:

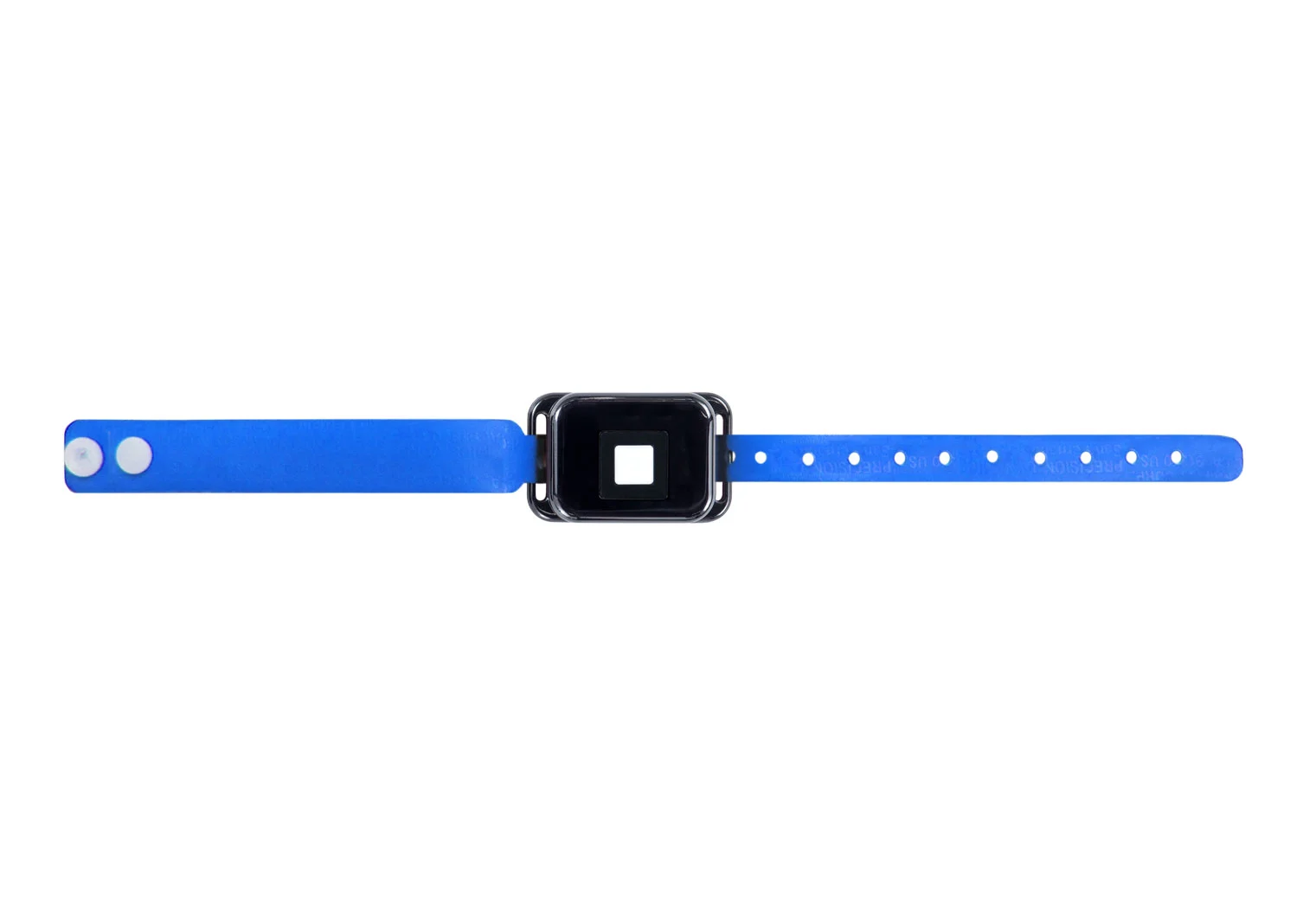

• on the wrist using hospital wrist band (3/4" or less; not included)

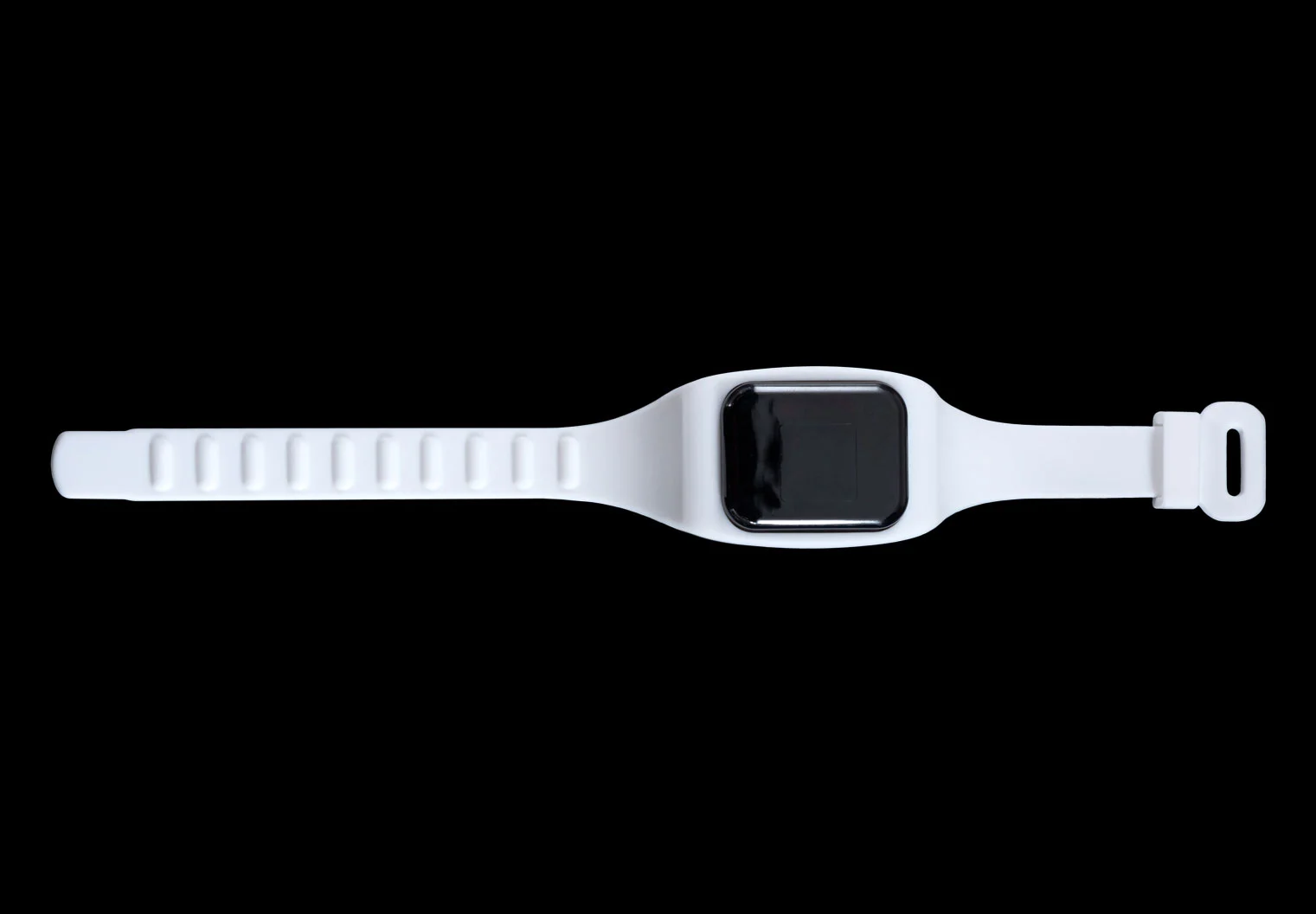

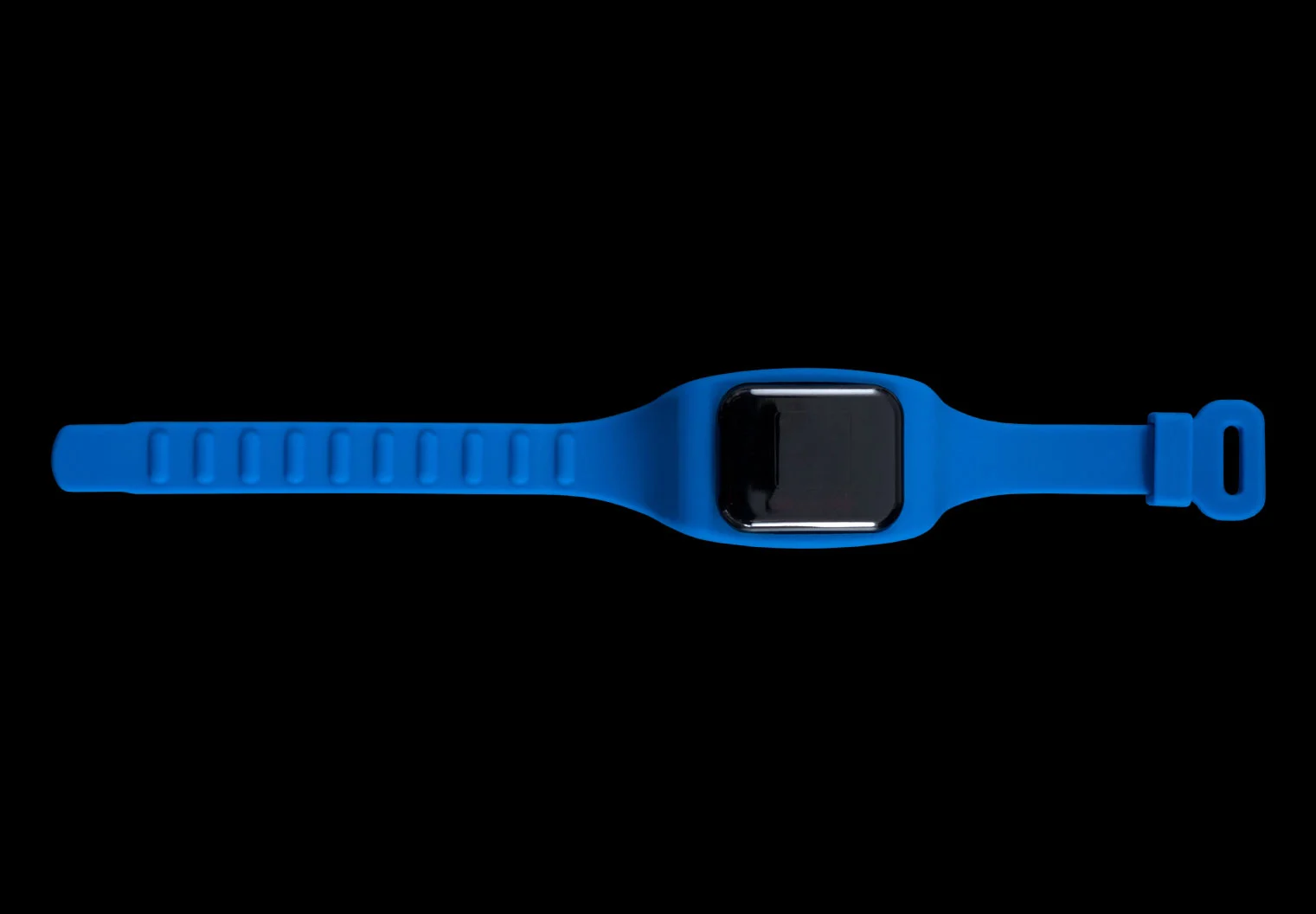

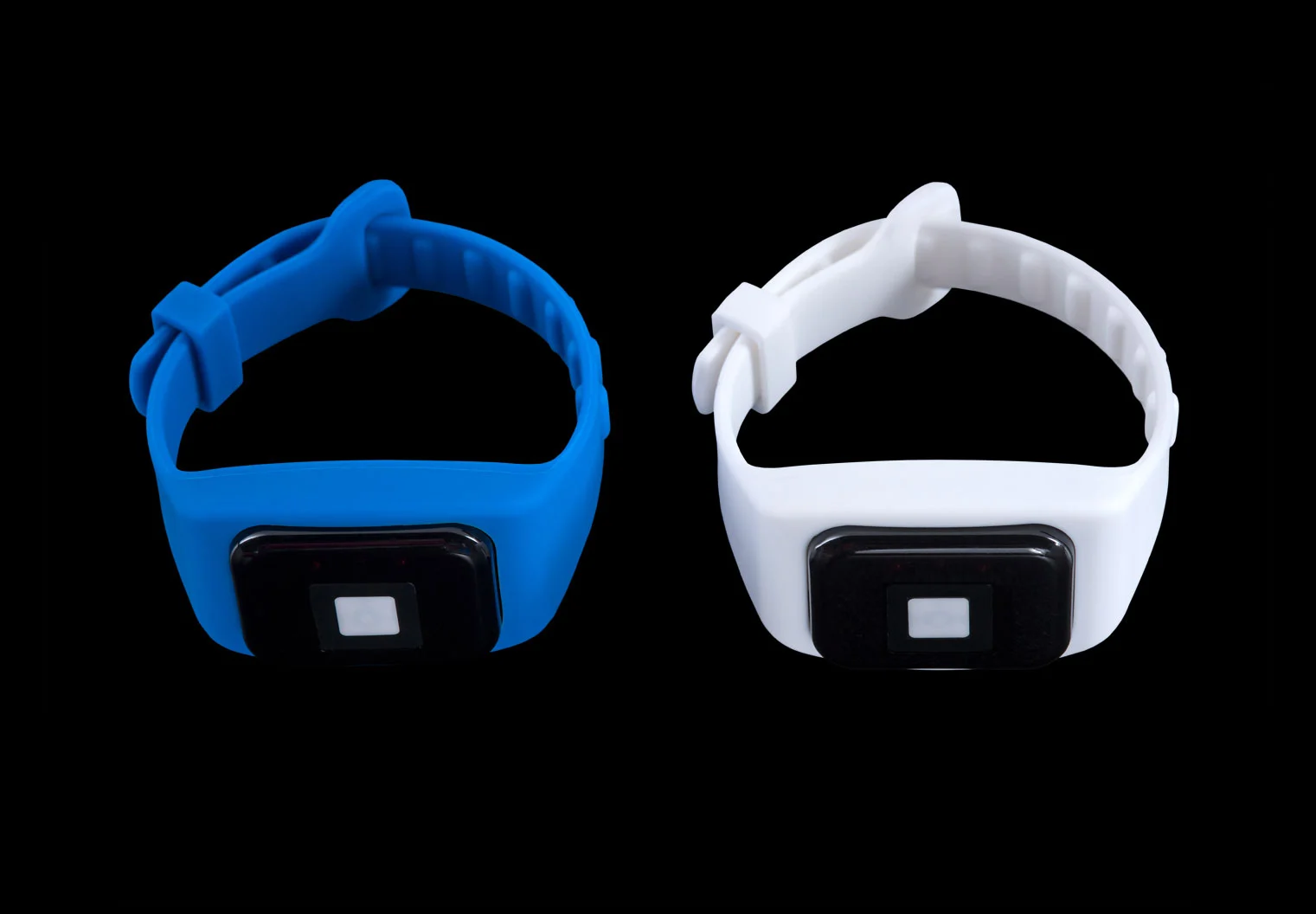

• on the wrist using silicone accessory (sold separately)

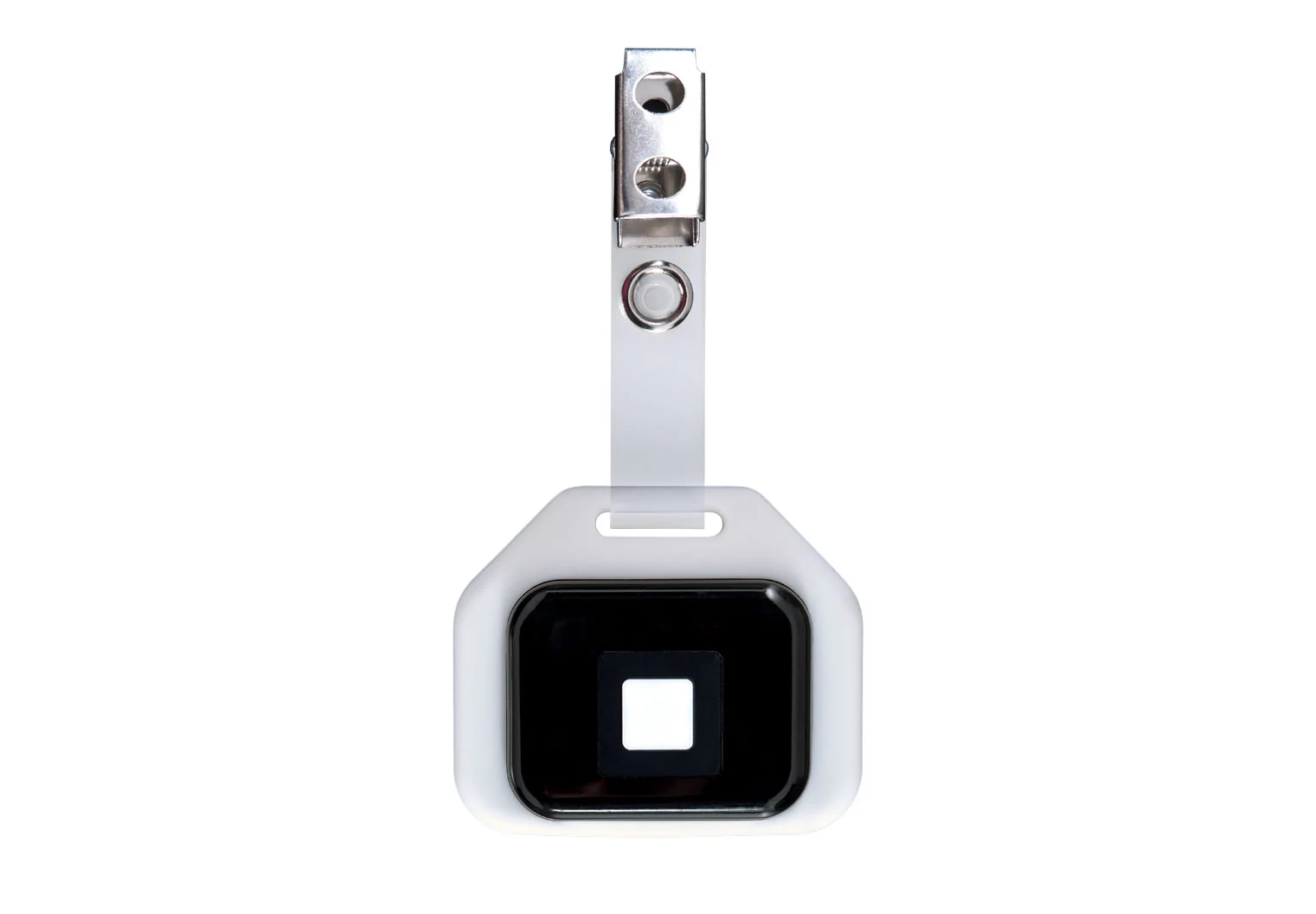

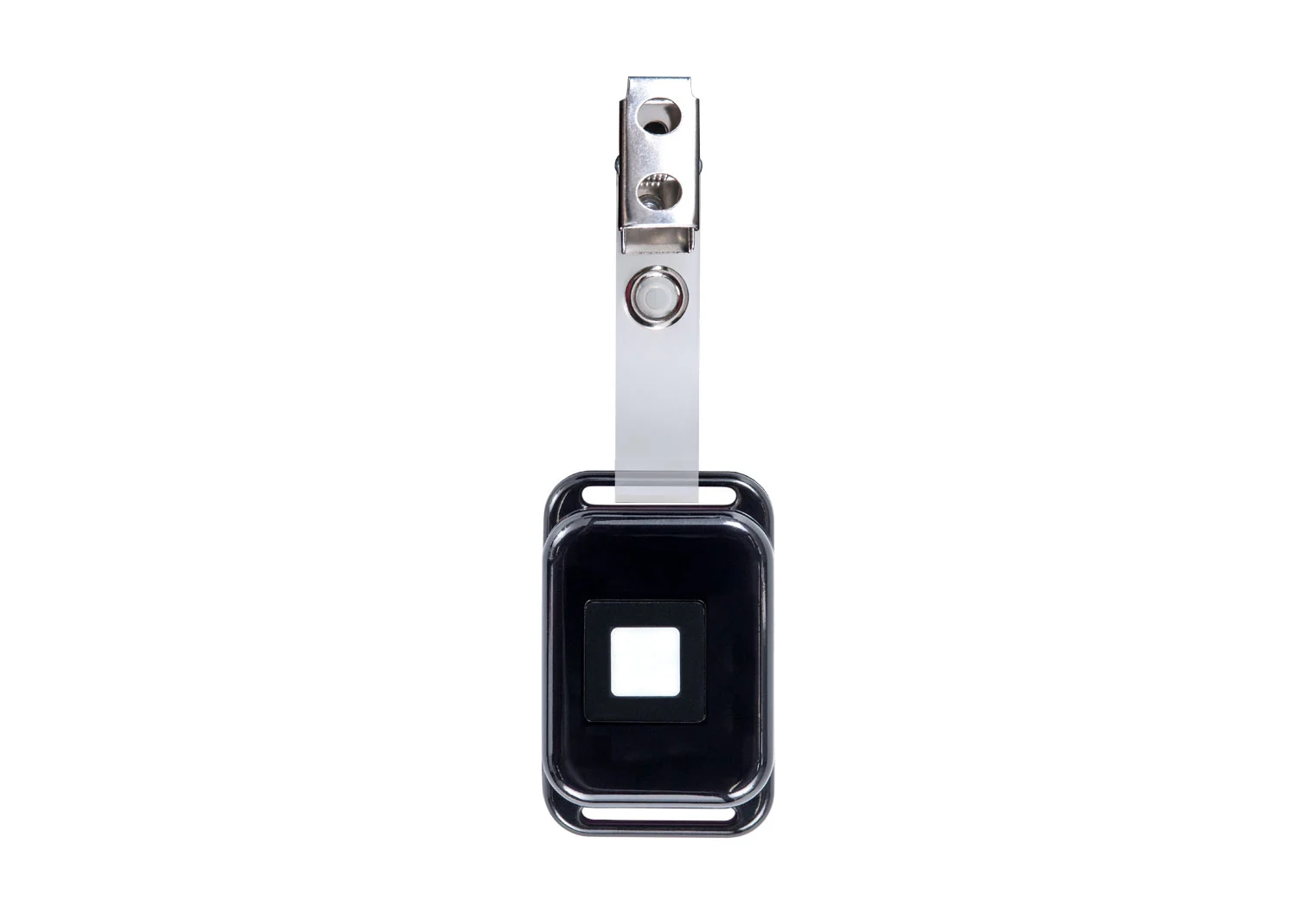

• on the lapel using included clothing clip
• on the lapel using silicone accessory (sold separately)

Sold Separately:

<li>Silicone lapel accessory (available in white, charcoal gray, pink or blue)</li> <li>Silicone wrist accessory (available in white, charcoal gray, pink or blue)</li> </ul> <p> </p> </div> <div class=;">
