The Midmark Multiparameter Monitor is equipped with Cardell® blood pressure technology, veterinary-specific algorithms and innovative, staff-friendly capabilities. Relying on decades of clinical experience responding to common anesthetic issues, we designed these enhanced features to help your team avoid pitfalls and prevent anesthetic complications.
Interested in a free trial of the Midmark Multiparameter Monitor?
Dimensions/Weight
9.2 lb (monitor and base)
5.09" x 13.00" x 10.96"
Electrical
Voltage: AC 100 - 240 V
Parameters
NIBP: Cardell® BP Technology
Pulse Oximetry (SpO2): Nellcor® Oximax®
CO2 Monitoring:
Respironics® CAPNOSTAT® 5 Mainstream
Respironics® LoFlo™ Sidestream
ECG: 3-Lead Standard, 5-Lead Optional
HR/PR: ECG HR/SpO2 and NIBP PR
Temperature: 2-Channel
Respiration Method:
Indirect: Impedance,
Direct: Capnography (optional)
Invasive Blood Pressure: 2-Channel (optional)
Anesthetic Gas: Masimo® Multigas Mainstream or Sidestream (optional) CO2, N2O, ISO, SEV, ENF, DES, HAL
Display: 12.1" LCD Resistive Touch Screen

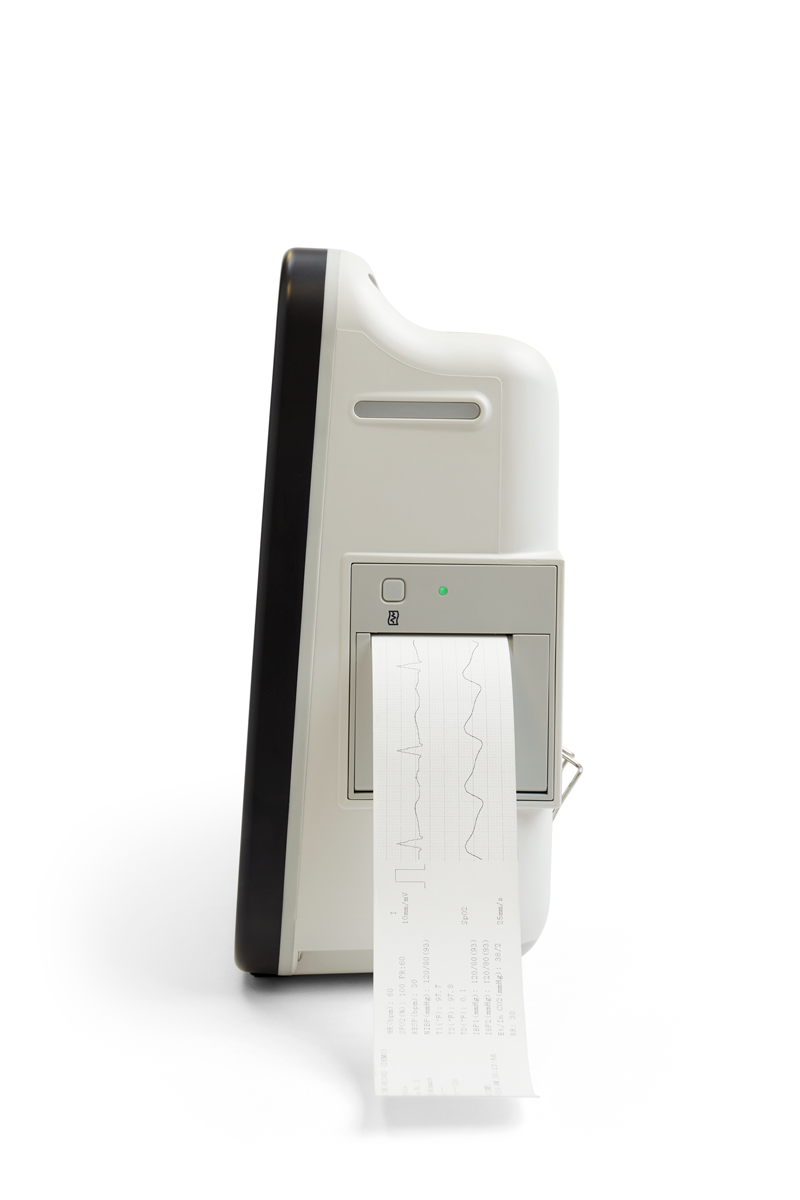

Printer: 3-Channel (optional)
Waveform Display:
6 Channel with IBP and Multigas Options
3-4 Channel Standard Display
ECG Vector Waveform Display:
7-Channel with 5-Lead Option
1-Channel with 3-Lead Option
ECG Gain: Auto, x0.25, x0.5, x1, x2, x4
HR/PR Range:
ECG HR = 15-350 bpm
SpO2 PR = 20-300 bpm
NIBP Modes: Manual, Auto, Continuous, Screen
Graphical Trends: 168 hours
Tabular Trends: 168 hours
Parameter Alarms: User-Defined High/Low with 4 Defaults (cat, dog, horse, other)
Download to PC: USB Drive
Capnostat, Cardell, LoFlo, Masimo, Nellcor, Oximax, and Respironics are all trademarks or registered trademarks of their respective companies.
8019-001 Multiparameter Monitor with Printer
8019-002 Multiparameter Monitor without Printer
8019-003 Multiparameter Monitor with Invasive BP and Printer
Parts + Services StoreC-STAT5 CAPNOSTAT® 5 Mainstream CO2 Probe
LOFLO LoFlo™ Sidestream CO2 Module
002-1745-00 Kit, Masimo™ Multigas Mainstream Sensor and Adapters
002-1746-00 Kit, Masimo™ Multigas Sidestream Sensor and Adapter
